Description

Price

1

COVER, CRANKCASE L

4AA-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

1LV-15451-10-00

Unavailable

3

CLAMP

90465-06247-00

Unavailable

4

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

COVER, CRANKCASE 2

23X-15421-00-00

$45.99

7

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLAIN (646)

92990-06600-00

$2.80

10

COVER, CRANKCASE 3

4AA-15431-00-00

Unavailable

11

GASKET, CRANKCASE COVER 3

3R4-15462-11-00

$34.99

12

BOLT,SOCKET HEAD

91314-06025-00

$8.49

13

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

14

O-RING (26H)

93210-14579-00

$7.49

15

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

16

GASKET 838153840000

90430-06016-00

Unavailable

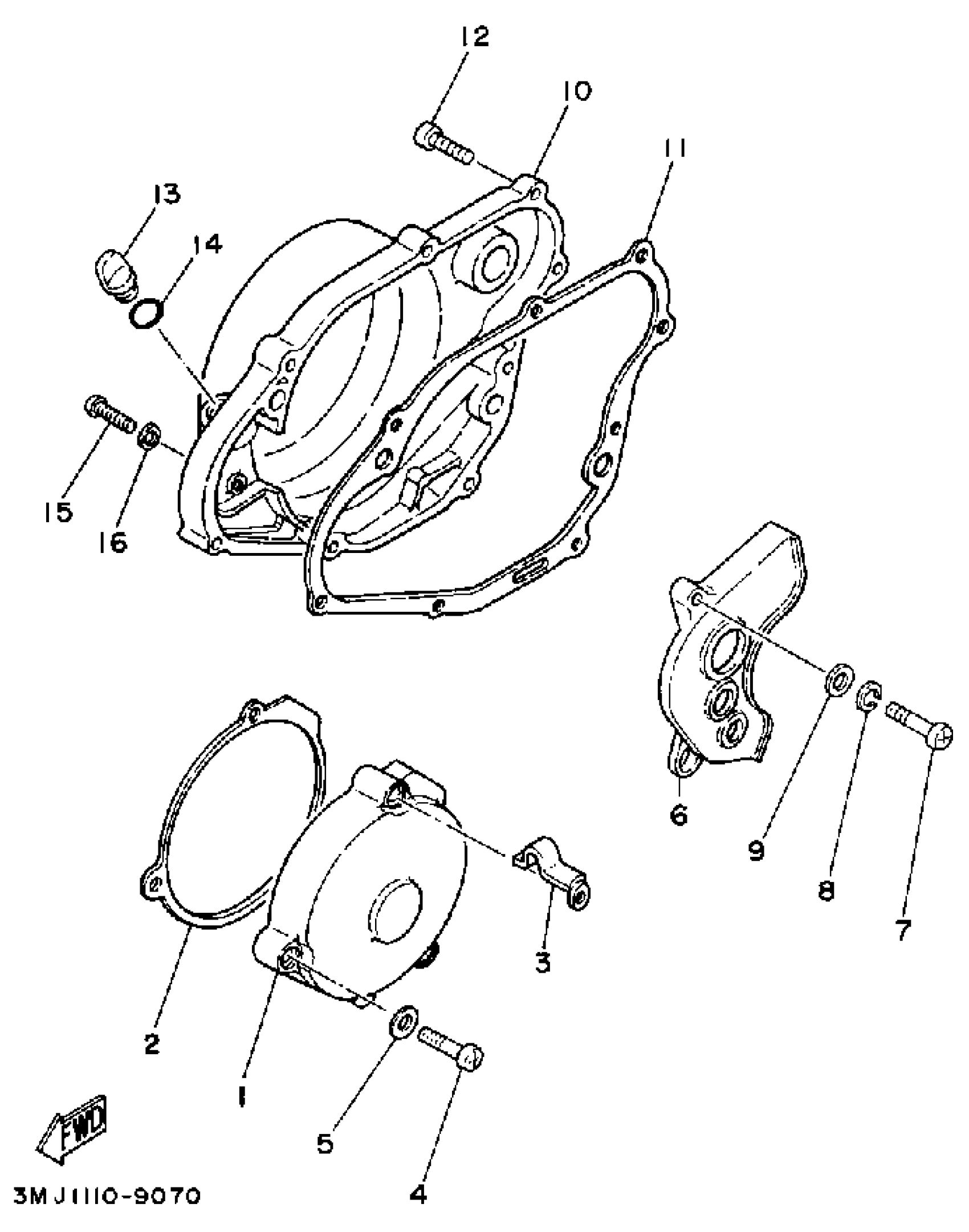

Yamaha WR500ZE (WR500Z) 1993 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE L

GASKET, CRANKCASE COVER 1

CLAMP

SCREW, PAN HEAD(6H4)

WASHER, PLAIN (646)

COVER, CRANKCASE 2

SCREW, PAN HEAD (76T)

WASHER, SPRING

WASHER, PLAIN (646)

COVER, CRANKCASE 3

GASKET, CRANKCASE COVER 3

BOLT,SOCKET HEAD

PLUG, OIL LEVEL

O-RING (26H)

SCREW, PAN HEAD(6A3)

GASKET 838153840000
