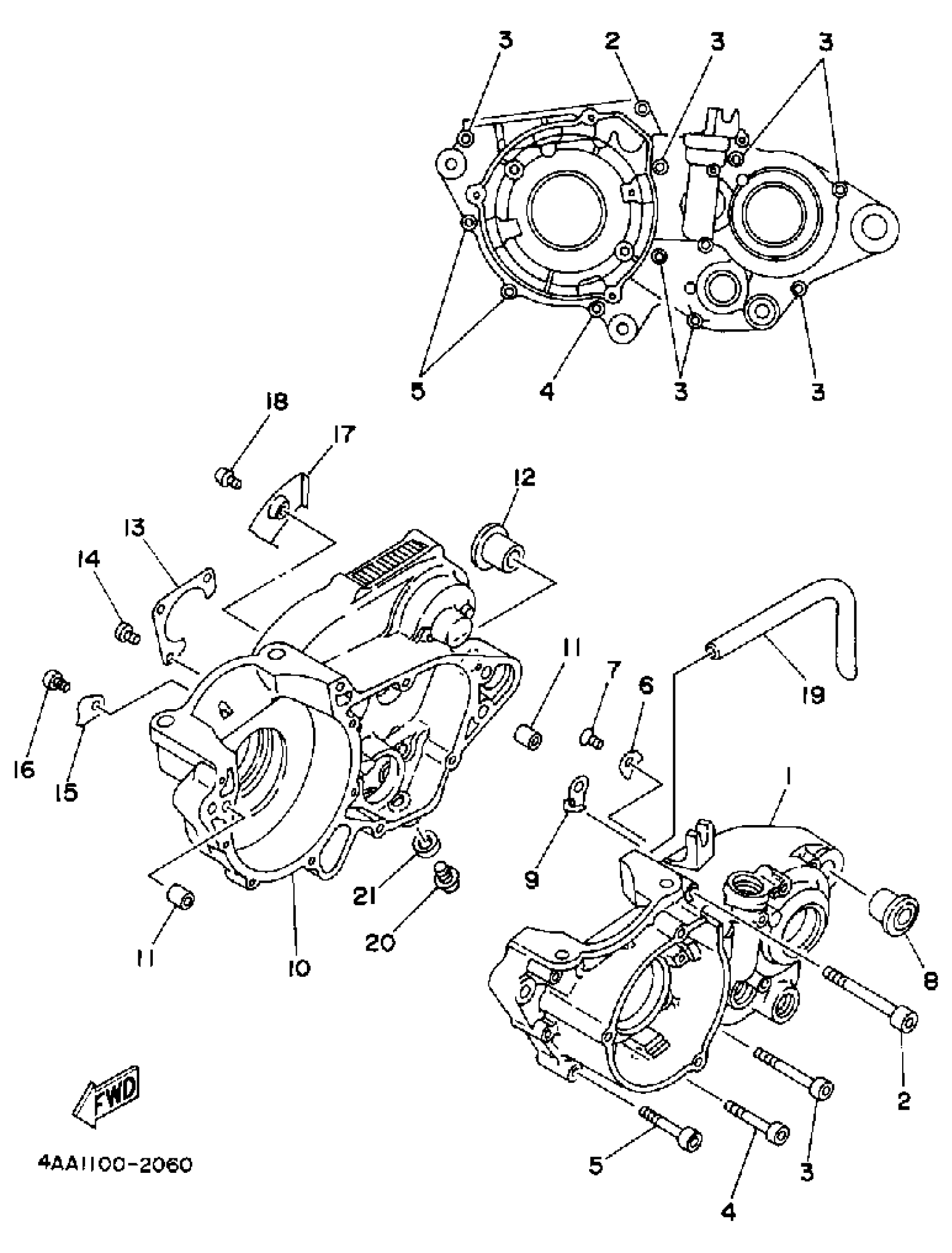

Yamaha WR500ZE (WR500Z) 1993 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

4AA-W1511-00-00

Unavailable

2

BOLT, SOCKET

91317-06075-00

$5.60

3

BOLT,SOCKET

91317-06060-00

$3.76

4

BOLT,SOCKET

91317-06050-00

$3.88

5

BOLT,SOCKET

91317-06045-00

$4.99

6

PLATE, BEARING COVER

3SP-15381-00-00

Unavailable

7

SCREW, FLAT

98707-06012-00

$8.49

8

COLLAR

90387-160H4-00

Unavailable

9

HOLDER

3R4-26393-00-00

$56.99

10

CRANKCASE 2

4AA-15121-00-00

Unavailable

11

PIN, DOWEL

99530-12016-00

$4.89

12

COLLAR

90387-160H4-00

Unavailable

13

PLATE, BEARING COVER

23X-15381-00-00

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

HOLDER

4V4-15118-00-00

$29.99

16

SCREW PAN HEAD

98580-06010-00

Unavailable

17

PLATE

3R4-15113-00-00

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

19

HOSE (L1500)

90445-084J0-00

Unavailable

20

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

Unavailable

21

GASKET (3JD1)

90430-12207-00

Unavailable
