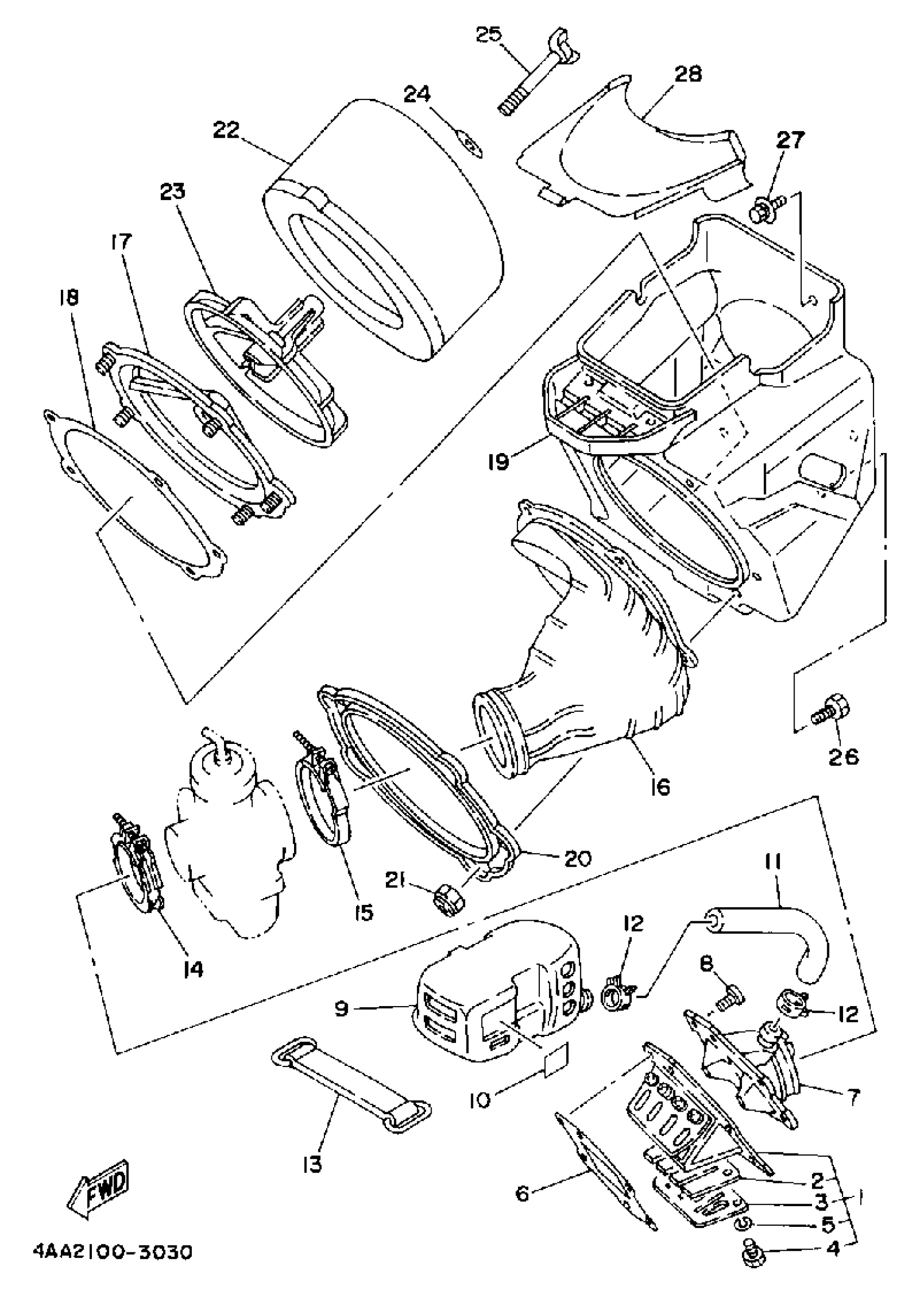

Yamaha WR500ZE (WR500Z) 1993 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

56A-13610-01-00

Unavailable

2

REED,VALVE

8AB-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

56A-13616-00-00

Unavailable

4

SCREW, PAN HEAD(78G)

98580-03006-00

Unavailable

5

WASHER, SPRING

92990-03100-00

$8.49

6

GASKET, VALVE SEAT

39X-13621-11-00

Unavailable

7

JOINT, CARBURETOR

4AA-13565-00-00

Unavailable

8

BOLT,SOCKET

91317-06020-00

Unavailable

9

CHAMBER, AIR

40T-13581-00-00

Unavailable

10

EMBLEM

4V3-1441K-00-00

Unavailable

11

PIPE, MANIFOLD

4AA-13584-00-00

Unavailable

12

CLIP(4HC)

90467-23177-00

$4.24

13

BAND

26A-13575-00-00

Unavailable

14

CLAMP, HOSE

90460-51109-00

Unavailable

15

CLAMP, HOSE (29L)

90460-68230-00

$16.99

16

JOINT, AIR CLNR 1

4AA-14453-00-00

Unavailable

17

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

18

SEAL

3JD-14462-00-00

Unavailable

19

AIR CLEANER CASE COMP. (3XJ-W1441-00)

3XJ-W1441-01-00

Unavailable

20

PLATE

5MV-14477-00-00

Unavailable

21

NUT, U

95617-05100-00

Unavailable

22

ELEMENT, AIR CLEANER

3JD-14451-01-00

Unavailable

23

GUIDE

3JD-14458-01-00

Unavailable

24

WASHER (4H7)

90209-06096-00

Unavailable

25

BOLT, WING

90122-06005-00

Unavailable

26

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

27

BOLT, WITH WASHER(3JD)

90119-06185-00

Unavailable

28

COVER, CASE

3XJ-1441A-00-00

Unavailable
