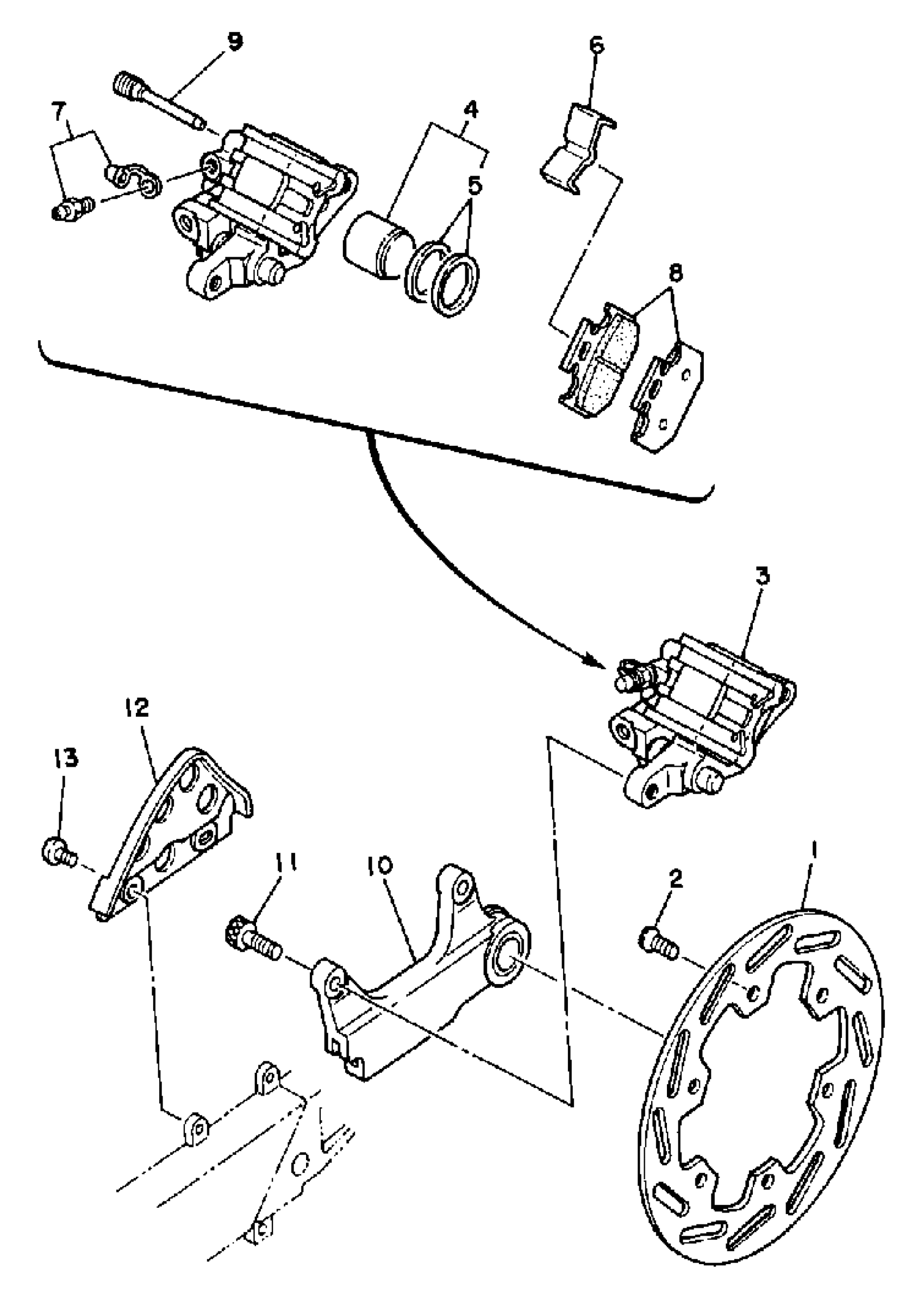

Yamaha WR500ZD (WR500Z) 1992 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4MX-2582W-00-00

Unavailable

SCREW, COUNTERSUNK

90151-06080-00

$1.49

CALIPER ASSEMBLY REAR 2

4AA-2580W-00-00

Unavailable

PISTON ASSY, CALIPER

3SP-W0057-50-00

Unavailable

CALIPER SEAL KIT

3JD-25803-50-00

$13.69

SUPPORT, PAD

3SP-25919-51-00

Unavailable

BLEED SCREW KIT

36Y-W0048-00-00

$10.99

BRAKE PAD KIT 2

3XP-W0046-00-00

$37.62

PIN, PAD

3FV-25924-00-00

$19.22

SUPT. BRACKET ASSEMBLY.

3XJ-25920-00-00

Unavailable

BOLT,SOCKET

91314-08025-00

$5.87

PROTECTOR

3JD-27491-00-00

Unavailable

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$2.36
