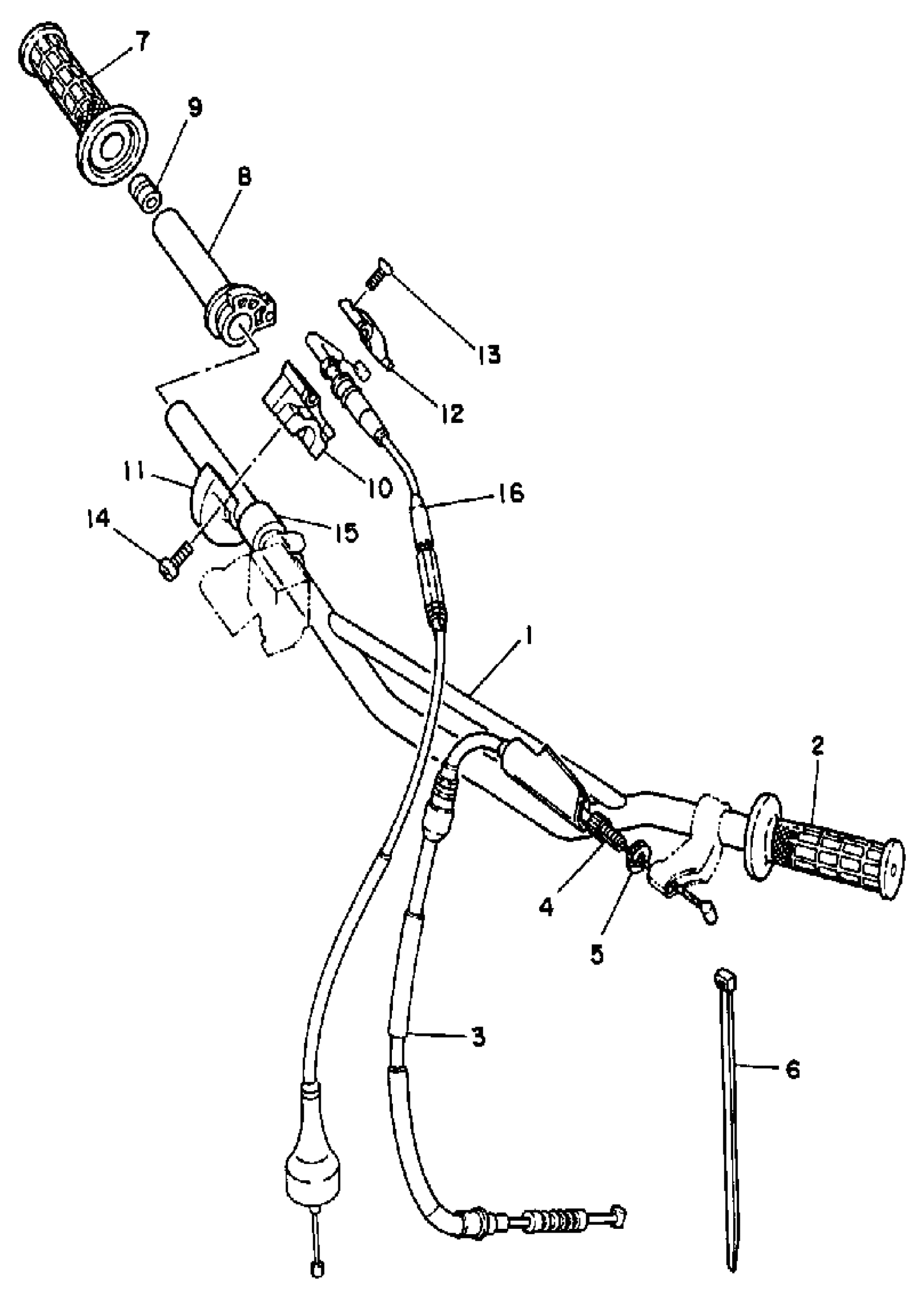

Yamaha WR500ZD (WR500Z) 1992 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

3XJ-26111-00-00

Unavailable

2

GRIP (L.H)

1LX-26241-01-00

$33.99

3

CABLE, CLUTCH

4AA-26335-00-00

Unavailable

4

BOLT (23X)

90123-08090-00

$16.99

5

NUT

90179-08401-00

Unavailable

6

CLAMP(MF1)

90464-15152-00

$5.60

7

GRIP (R.H)

1LX-26242-01-00

$34.99

8

TUBE, THROTTLE GUIDE

23X-26243-01-00

$15.49

9

PLUG(2GU)

90338-12192-00

$8.49

10

CAP, GRIP UPPER

23X-26281-01-00

$29.99

11

CAP, GRIP UNDER

431-26282-03-00

$38.99

12

CAP, WIRE

5X2-2628H-01-00

$27.99

13

SCREW, FLAT

98707-04012-00

$2.18

14

SCREW, PAN HEAD

90157-05M19-00

Unavailable

15

SPACER(1LX)

90560-22281-00

$13.99

16

CABLE, THROTTLE 1

4AA-26311-00-00

Unavailable
