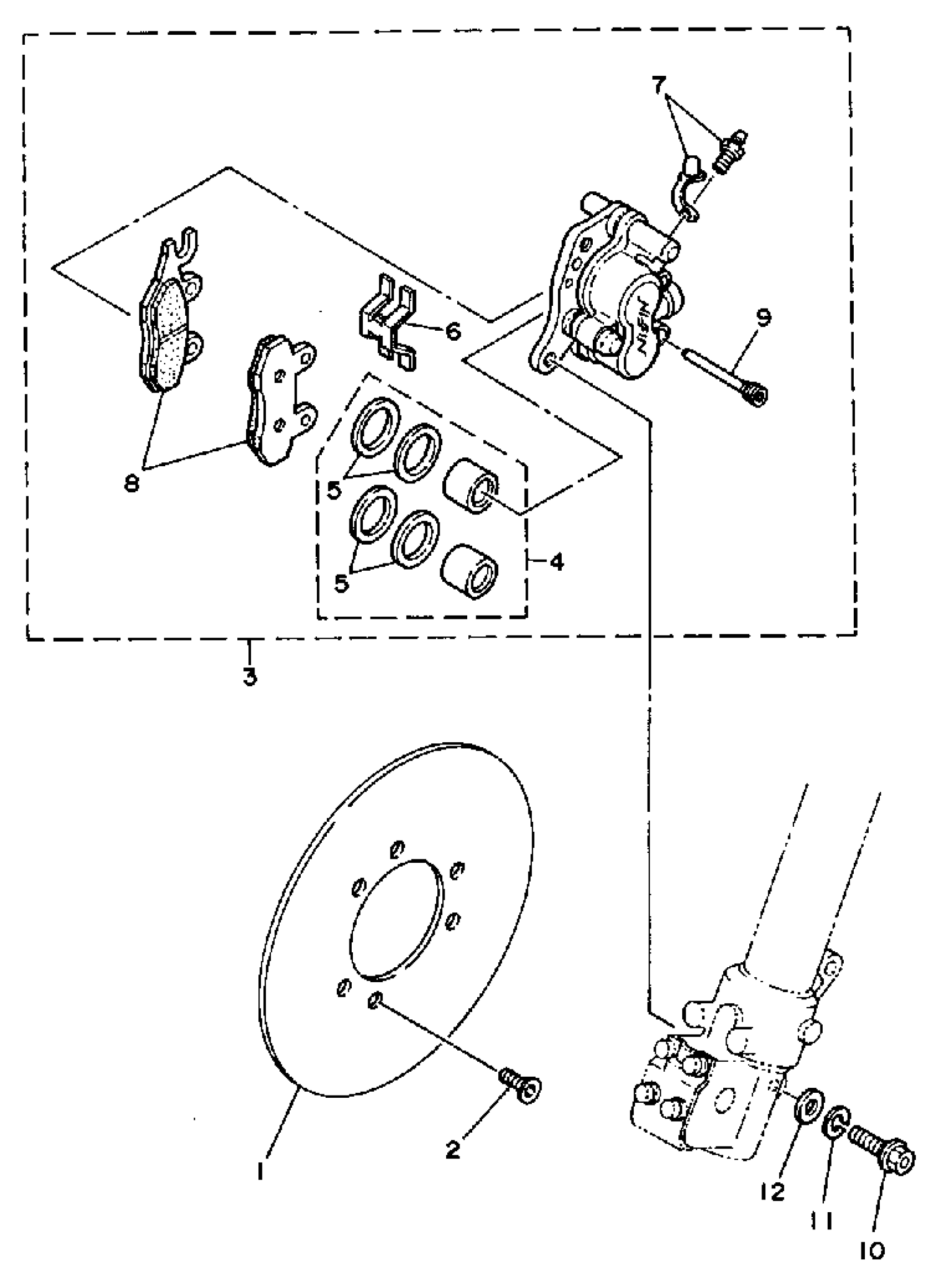

Yamaha WR500ZD (WR500Z) 1992 FRONT BRAKE CALIPER Diagram

DISC, BRAKE FRONT

3JD-2582T-00-00

Unavailable

SCREW, COUNTERSUNK

90151-06080-00

$1.49

CALIPER ASSY,LEFT

4AA-2580T-01-00

Unavailable

. PISTON ASSEMBLY, CALIPER

3JD-W0057-00-00

Unavailable

CALIPER SEAL KIT

3JD-25803-00-00

$17.75

SUPPORT, PAD

3SP-25919-01-00

Unavailable

BLEED SCREW KIT

36Y-W0048-00-00

$10.99

BRAKE PAD KIT

3SP-W0045-00-00

Unavailable

PIN, PAD

3GD-25933-00-00

$21.83

BOLT

97014-08040-00

$5.01

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

.. WASHER, PLATE

92990-08600-00

$2.18
