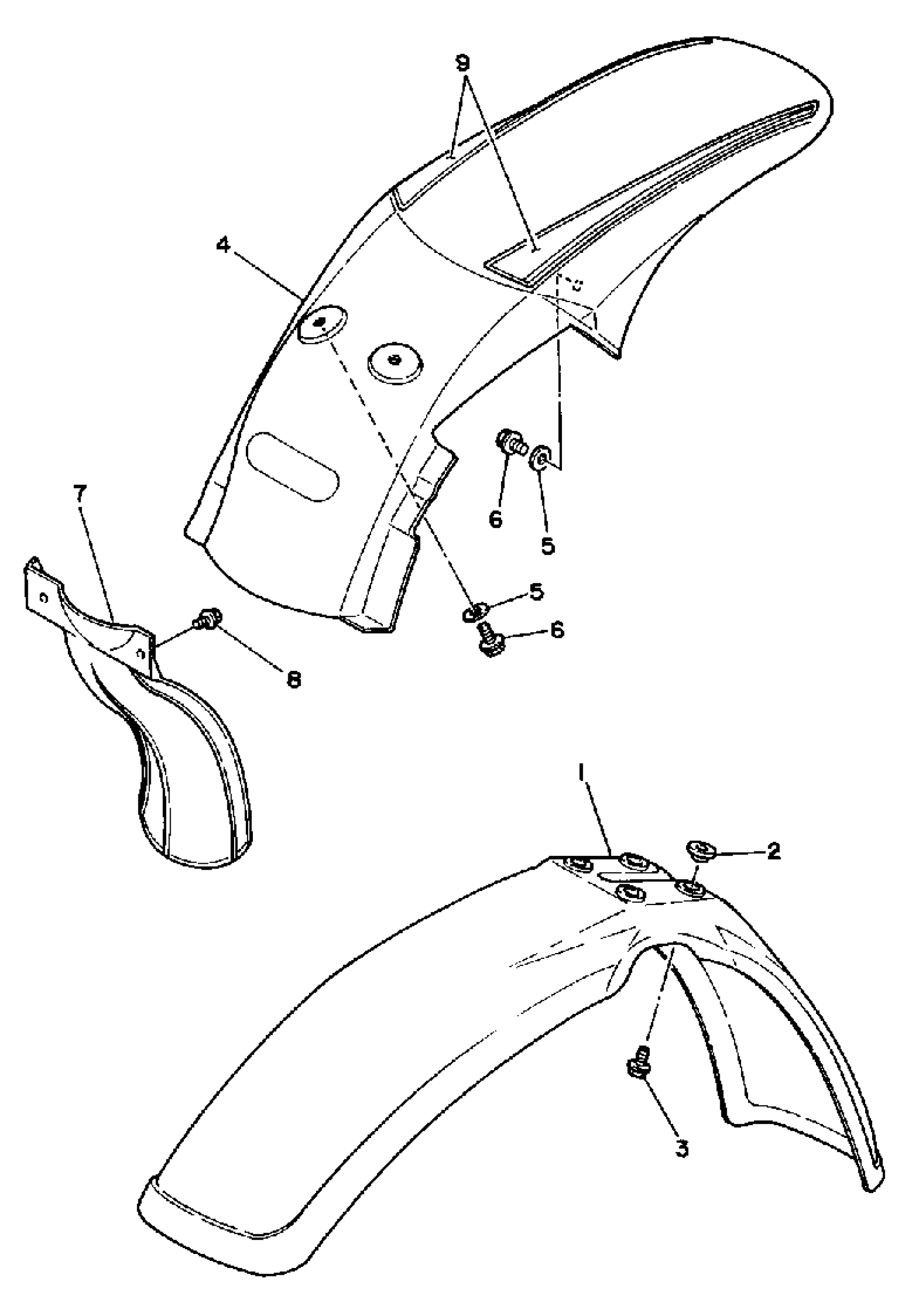

Yamaha WR500ZD (WR500Z) 1992 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3XK-21511-00-00

Unavailable

2

COLLAR

3JD-21748-00-00

$4.09

3

BOLT, WITH WASHER (10V)

90119-06063-00

$5.98

4

FENDER, REAR

3XJ-21611-02-00

Unavailable

5

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$6.10

6

BOLT, FLANGE(4MY)

95027-06012-00

$3.11

7

GUARD, FLAP

39X-21642-00-00

$66.57

8

BOLT, WITH WASHER(3JD)

90119-06185-00

$6.78

9

GRAPHIC SET 1

4AA-2173L-00-00

Unavailable
