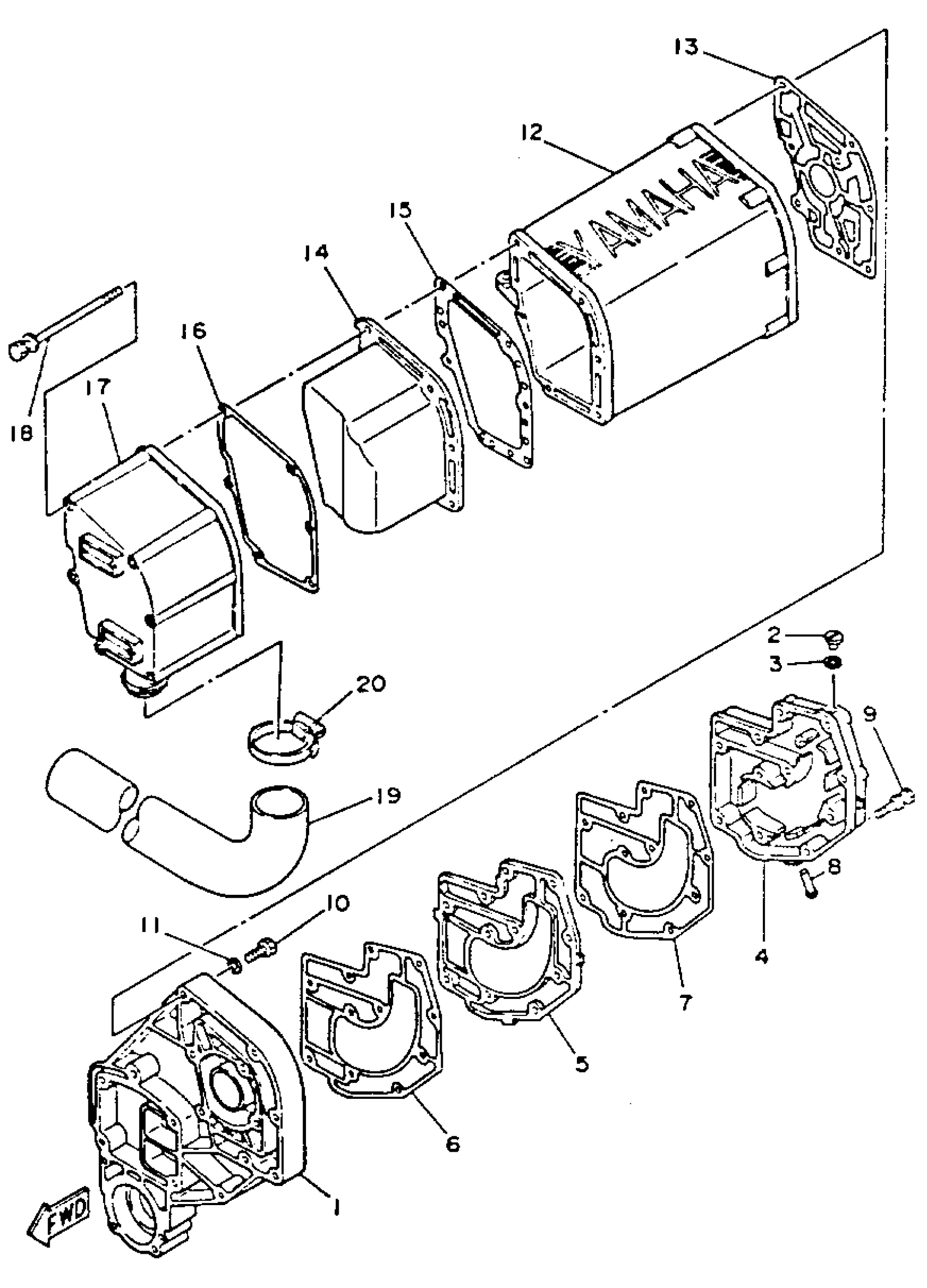

Yamaha WR500R (WAVE RUNNER) 1993 EXHAUST 1 Diagram

#

Description

Price

1

EXHAUST GUIDE

6K8-41137-00-94

Unavailable

2

PLUG, STRAIGHT SCREW

90340-08002-00

Unavailable

3

GASKET

90430-08003-00

Unavailable

4

EXHAUST OUTER CVR.

6K8-41113-00-8S

Unavailable

5

EXHAUST INNER CVR.

6K8-41111-00-9M

Unavailable

6

. GASKET, EXHCOVEREXHAUST OUTER COVER

6K8-41114-A1-00

Unavailable

7

. GASKET EXHAUSTEXHAUST INNER COVER

6K8-41112-A1-00

Unavailable

8

. PIPE

6K8-51385-00-00

Unavailable

9

BOLT, WITH WASHER

90119-08M38-00

Unavailable

10

BOLT, HEXAGON

97013-08050-00

Unavailable

11

.. WASHER, PLATE

92990-08600-00

Unavailable

12

PROTECTOR, MUFF 1

6K8-14718-00-9M

Unavailable

13

. GASKET, SILENCER

6K8-14755-A1-00

Unavailable

14

MUFFLER R

6K8-14721-00-9M

Unavailable

15

. GASKET, MUFF DMPR 1MUFFLER DAMPER 1

6K8-14739-A1-00

Unavailable

16

. GASKET, MUFF DMPR 2MUFFLER DAMPER 2

6K8-14749-A1-00

Unavailable

17

PROTECTOR, MUFF 1

6K8-14718-00-9M

Unavailable

18

BOLT, WITH WASHER

90119-06M37-00

Unavailable

19

PIPE, OUTLET

6K8-14752-00-00

Unavailable

20

BAND, HOSE 52

90601-15272-00

Unavailable

21

JET DRIVE FLUSH

ABB-FLUSH-JD-00

Unavailable
