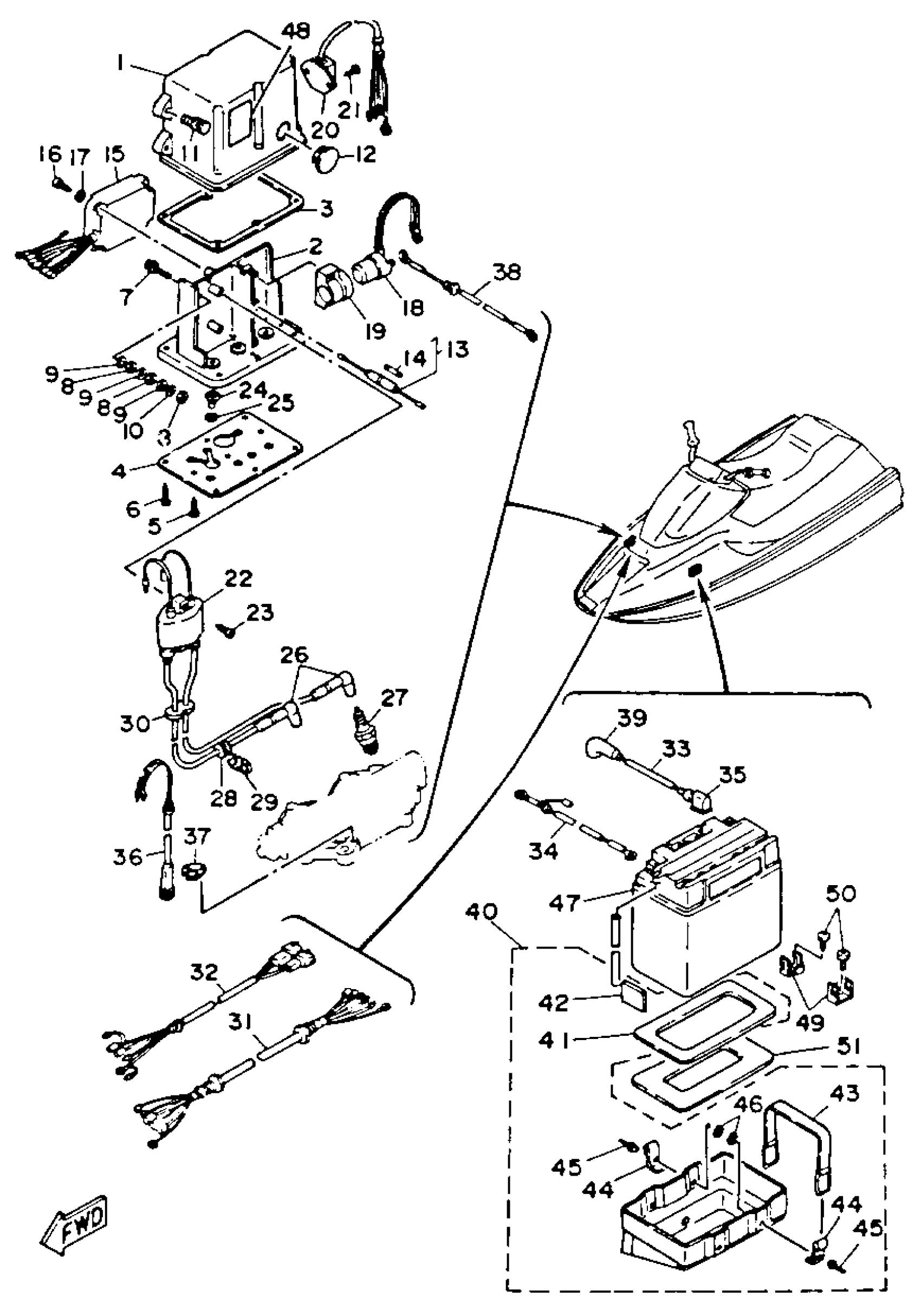

Find the part on the Electrical 1 diagram for your 1992 Yamaha Wave Runner (WR500Q), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Wave Runner (WR500Q) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING

6K8-8552A-00-00

1
Out of stock

2

COVER CASE

6K8-8552E-00-00

1
Out of stock

3

GASKET, TERMINAL

6K8-81921-00-00

1

$27.99

In stock

4

COVER

6K8-85599-00-00

1
Out of stock

5

SCREW, TAPPING

97780-60535-00

1
Out of stock

6

SCREW, TAPPING

97780-60520-00

1

$4.15

In stock

7

BOLT,WITH WASHER (6K8)

90119-06M34-00

1
Out of stock

8

NUT

95313-06700-00

1
Out of stock

9

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

12

COVER, UPPER CASIN

647-45151-02-00

1
Out of stock

13

FUSE HOLDER ASSY

6K8-82150-02-00

1
Out of stock

14

FUSE (10A)

1E6-82151-00-00

1

$6.22

In stock

15

CDI UNIT ASSEMBLY

6K8-85540-11-00

1
Out of stock

16

SCREW, TAPPING(65J)

97780-60625-00

1

$2.75

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

18

STARTER RELAY ASSY

6G1-81941-10-00

1

$71.27

In stock

19

HOLDER, RELAY

6G1-81952-01-00

1
Out of stock

20

RECTIFIER/REG ASSEMBLY ASSY

6K8-81960-A0-00

1
Out of stock

21

SCREW, TAPPING

97780-60512-00

1
Out of stock

22

IGNITION COIL

6K8-85570-19-00

1
Out of stock

23

SCREW, TAPPING(65J)

97780-60625-00

1

$2.75

In stock

24

GROMMET

90480-18M21-00

1
Out of stock

25

COLLAR

90387-18M00-00

1
Out of stock

26

PLUG CAP ASSEMBLY

6K8-82370-00-00

1
Out of stock

27

B7HS NGK 4PK

B7H-S0000-00-00

1

$4.95

In stock

28

GROMMET

90480-25M18-00

1

$12.99

In stock

29

CLAMP

90464-07M05-00

1

$2.92

In stock

30

GROMMET

90480-25M18-00

1

$12.99

In stock

31

EXT, WIRE HARNESS

6K8-8258A-02-00

1
Out of stock

32

EXTENSION, WIRE

6K8-82553-02-00

1
Out of stock

33

WIRE, LEAD

6K8-82117-01-00

1

$57.99

In stock

34

WIRE,LEAD

6K8-82117-11-00

1
Out of stock

35

COVER, LEAD WIRE

6K8-82119-11-00

1
Out of stock

36

THERMO SWITCH ASSEMBLY

6K8-82560-00-00

1
Out of stock

37

PLATE

6K8-82588-00-00

1
Out of stock

38

WIRE,LEAD

6K8-82117-11-00

1
Out of stock

39

COVER, LEAD WIRE

6K8-82119-01-00

1
Out of stock

40

BATTERY CASE

EU0-68211-09-00

1
Out of stock

41

PAD, BATTERY

F1S-U8221-00-00

1

$3.00

In stock

42

PAD, BATTERY 2

EU0-68221-30-00

1

$46.99

In stock

43

BAND,BATTERY

EU0-68218-04-00

1

$40.53

In stock

44

. HOOK

EU0-65772-00-00

1
Out of stock

45

RIVET, BLIND(EU0,USA)

90267-489U9-00

—

$3.32

In stock

46

. WASHER, PLATE

90201-05328-00

1
Out of stock

47

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1

$180.91

In stock

48

MARK 1

6K8-83621-00-00

1
Out of stock

49

HOOK A

EU0-65772-30-00

1

$10.49

In stock

50

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

51

PLATE, BATTERY

EU0-68219-00-00

1
Out of stock
