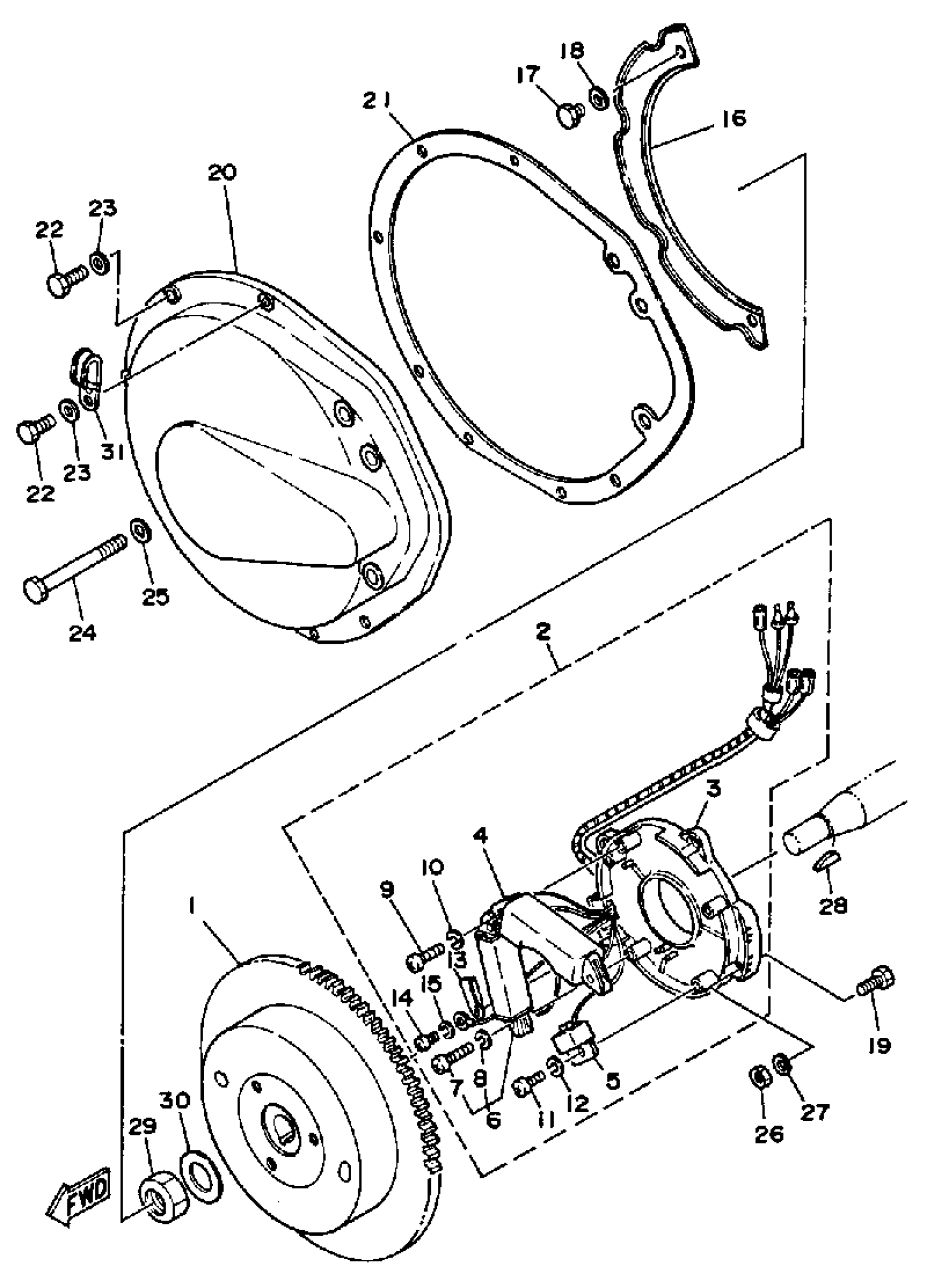

Yamaha WR500P (WAVE RUNNER) 1991 GENERATOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
6K8-85559-0A-10
Unavailable
2
BASE ASSEMBLY
6K8-85560-41-00
Unavailable
3
. BASE, MAGNETO
6G0-85509-70-00
Unavailable
4
. CHARGE COIL ASSEMBLY
6G0-85520-70-00
Unavailable
5
. COIL, PULSER
6K8-85580-00-00
Unavailable
6
LIGHTING COIL ASY
6E7-81303-40-00
Unavailable
7
SCREW, PAN HEAD
98517-05020-00
$4.25
8
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
9
SCREW, PAN HEAD
98517-05020-00
$4.25
10
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
11
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
12
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
13
. CLAMP, CORD
6E7-81328-70-00
Unavailable
14
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
15
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
16
CLAMP, CORD
6K8-82361-00-00
Unavailable
17
BOLT
97085-06010-00
Unavailable
18
WASHER, PLAIN (646)
92990-06600-00
Unavailable
19
BOLT, HEXAGON
97313-05016-00
Unavailable
20
COVER, FLYWHEEL
6K8-81337-01-94
Unavailable
21
GASKET, HOLE COVER
6K8-81365-A1-00
Unavailable
22
BOLT(7U8)
97080-06020-00
Unavailable
23
WASHER, PLAIN (646)
92990-06600-00
Unavailable
24
BOLT (6K8)
97013-08075-00
Unavailable
25
.. WASHER, PLATE
92990-08600-00
Unavailable
26
NUT
95380-05700-00
Unavailable
27
WASHER, PLAIN (646)
92990-05600-00
Unavailable
28
KEY, WOODRUFF
90280-05049-00
Unavailable
29
NUT (689)
90179-16M05-00
Unavailable
30
WASHER, PLATE
90201-16M44-00
Unavailable
31
CLAMP (6A4)
90461-06M01-00
Unavailable
