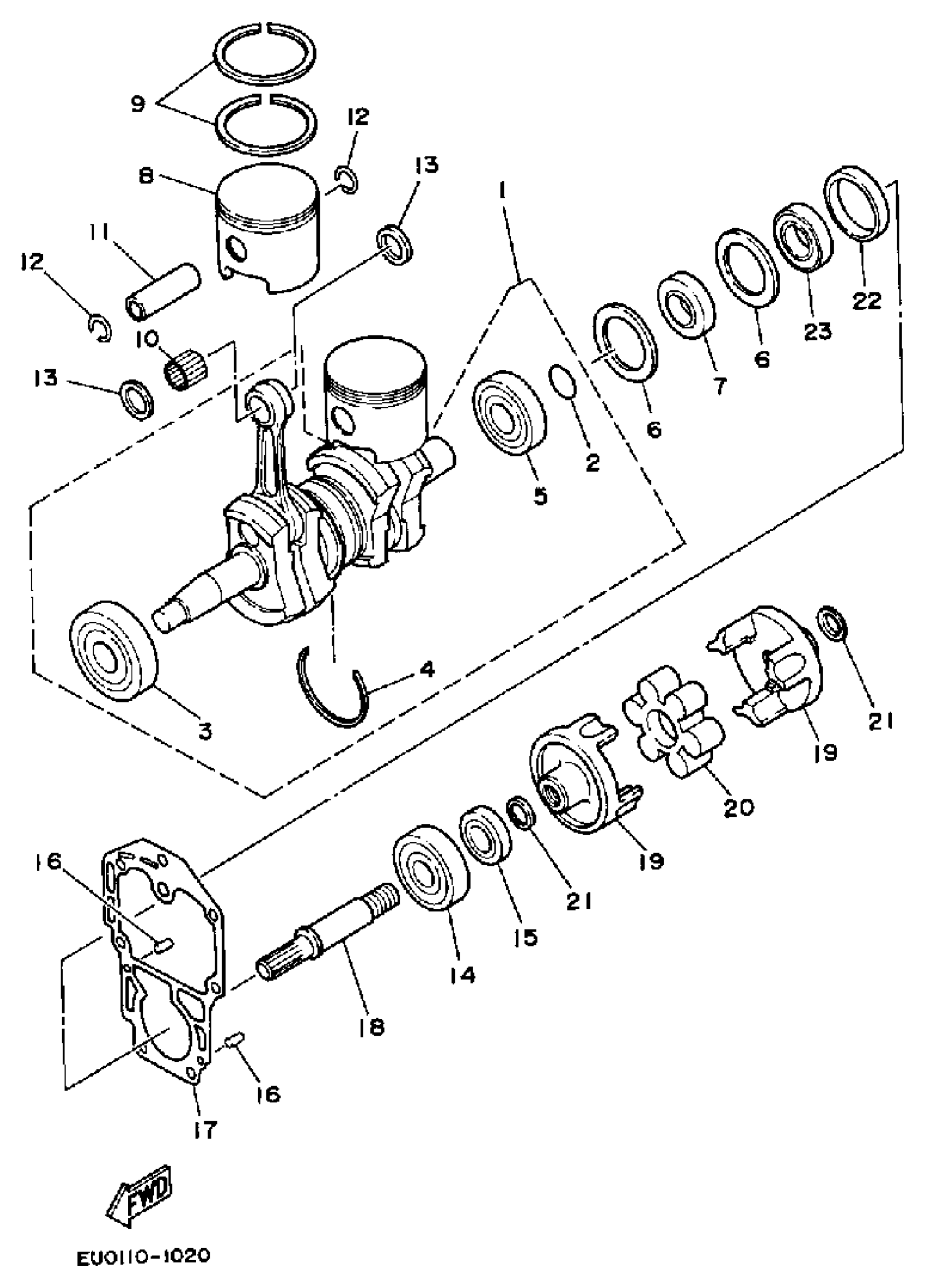

Yamaha WR500P (WAVE RUNNER) 1991 CRANKSHAFT -PISTON Diagram

#

Description

Price

1

CRANKSHAFT ASSEMBLY

6K8-11400-00-00

Unavailable

2

O-RING (M124)

93210-16772-00

Unavailable

3

. BEARING

93306-306U3-00

Unavailable

4

. CIRCLIP, OUTER

93440-62021-00

Unavailable

5

BEARING

93306-30571-00

$72.99

6

WASHER, PLATE

90201-50306-00

Unavailable

7

. OIL SEAL, S-TYPE

93101-25M38-00

Unavailable

8

PISTON (STD) (STD)

6K8-11631-00-95

Unavailable

8

PISTON 2 O/S 0.50 (0.50MM O/S)

6K8-11636-00-00

Unavailable

9

PISTON RING SET (STD)

6K8-11610-01-00

Unavailable

9

PISTON RING SET (2ND O/S)

6K8-11610-21-00

Unavailable

10

PIN, DOWEL

93602-20M02-00

Unavailable

11

PIN, PISTON

689-11633-00-00

Unavailable

12

CLIP, PISTON PIN

688-11634-00-00

Unavailable

13

WASHER, PLATE

90201-20M27-00

Unavailable

14

BEARING

93306-305U6-00

Unavailable

15

. OIL SEAL

93101-25M35-00

Unavailable

16

PIN, DOWEL (614)

93606-12019-00

Unavailable

17

GASKET, UPPER CASING

61T-45113-A0-00

Unavailable

17

GASKET, UPPER CASIN

6K8-45113-A0-00

Unavailable

18

SHAFT, DRIVE 4

6K8-45514-00-00

Unavailable

19

FLANGE COUPLING

6K8-45813-00-9M

Unavailable

20

RUBBER SHAFT CPLNG

6K8-4581J-00-00

Unavailable

21

WASHER, PLATE

90201-20M21-00

Unavailable

22

COLLAR

6K8-11478-00-00

Unavailable

23

. OIL SEAL, S-TYPE

93101-25M38-00

Unavailable
