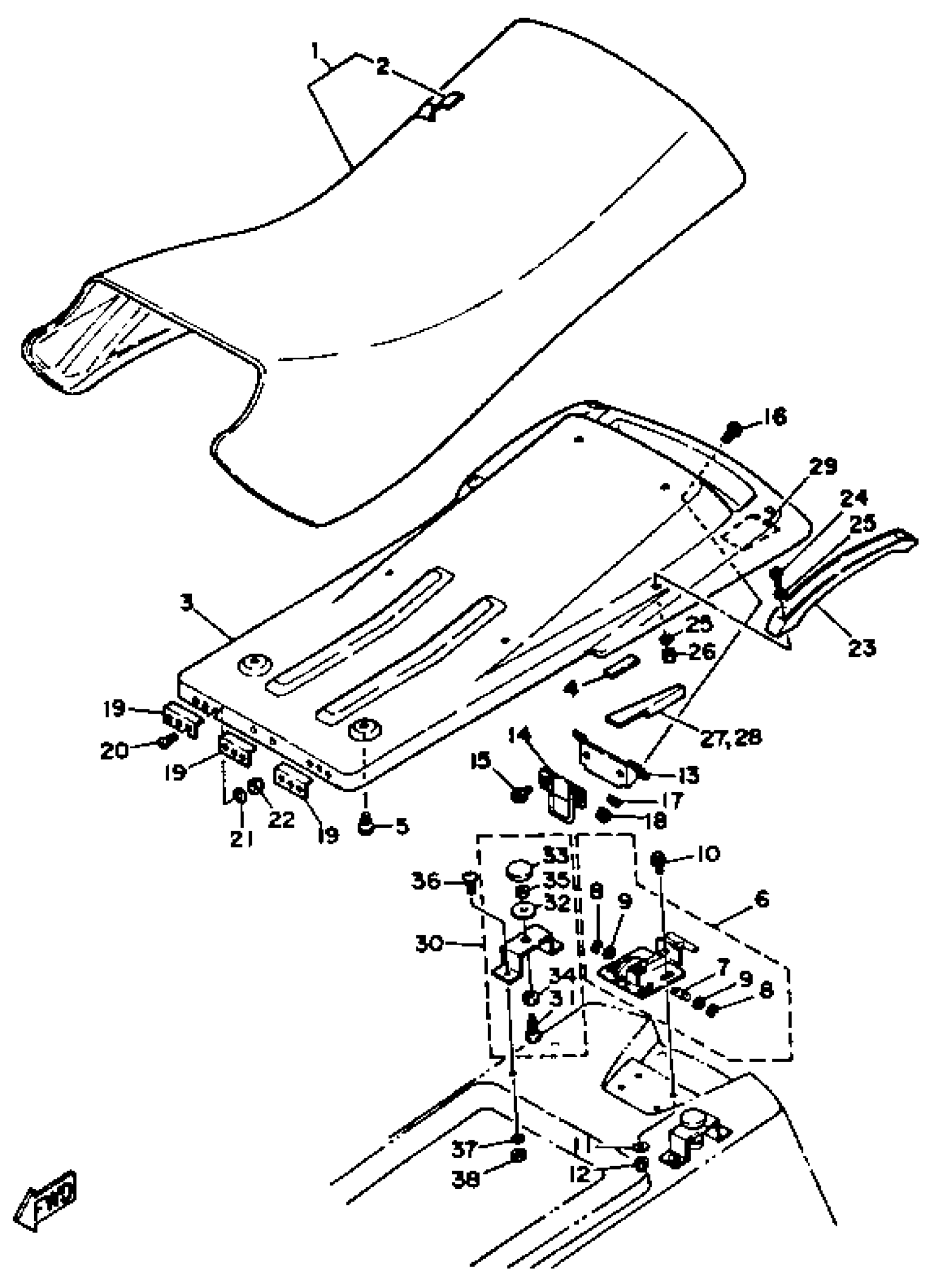

Yamaha WR500F (WAVE RUNNER) 1989 SEAT Diagram
#
1
SEAT ASSY.
EU0-U3710-41-00
Unavailable
2
SEAT COVER
FK7-63711-41-00
Unavailable
3
BASE SEAT COMP
EU0-63702-03-00
Unavailable
3
BASE, SEAT COMP.
EU0-63702-30-00
Unavailable
4
MAT 3
EU0-67593-40-00
Unavailable
5
BOLT, W/WASHER
90119-06034-00
Unavailable
6
SEAT LOCK ASSEMBLY
EU0-63850-00-00
Unavailable
7
. PIN
EU0-63774-00-00
Unavailable
8
CIRCLIP(22K)
99080-05600-00
$8.49
9
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
10
BOLT, WITH WASHER
90119-06901-00
Unavailable
11
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
12
NUT, SELF-LOCKING
95720-06300-00
Unavailable
13
BASE, HOOK END
EU0-63778-00-00
Unavailable
14
HOOK END
EU0-63779-00-00
Unavailable
15
BOLT, WITH WASHER
90119-06926-00
Unavailable
16
SCREW, WITH WASHER
90159-06902-00
Unavailable
17
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
18
NUT, SELF-LOCKING
95720-06300-00
Unavailable
19
STOPPER SEAT 2
EU0-U3789-00-00
Unavailable
20
. SCREW, FLAT HEAD
98780-05016-00
Unavailable
21
. WASHER, PLAIN
92990-05200-00
Unavailable
22
NUT, FLANGE
95720-05300-00
Unavailable
23
GRIP, HAND
EU0-62714-01-00
Unavailable
24
SCREW, PAN HEAD(6B0)
97885-06025-00
Unavailable
25
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
26
NUT, FLANGE
95780-06300-00
Unavailable
27
MAT (LH)
EU0-67593-10-00
Unavailable
28
MAT (RH)
EU0-67593-20-00
Unavailable
29
LINER, DAMPER
EU0-63765-00-00
Unavailable
30
DAMPER, SEAT ASSEMBLY
EU0-63760-02-00
Unavailable
31
. BOLT
EU0-63762-00-00
Unavailable
32
. PLATE
EU0-63763-01-00
Unavailable
33
. PLATE
EU0-63763-01-00
Unavailable
34
. NUT
EU0-63766-00-00
Unavailable
35
. NUT
95380-08700-00
Unavailable
36
SCREW PAN HEAD
98580-06020-00
Unavailable
37
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
38
NUT, SELF-LOCKING
95720-06300-00
Unavailable
