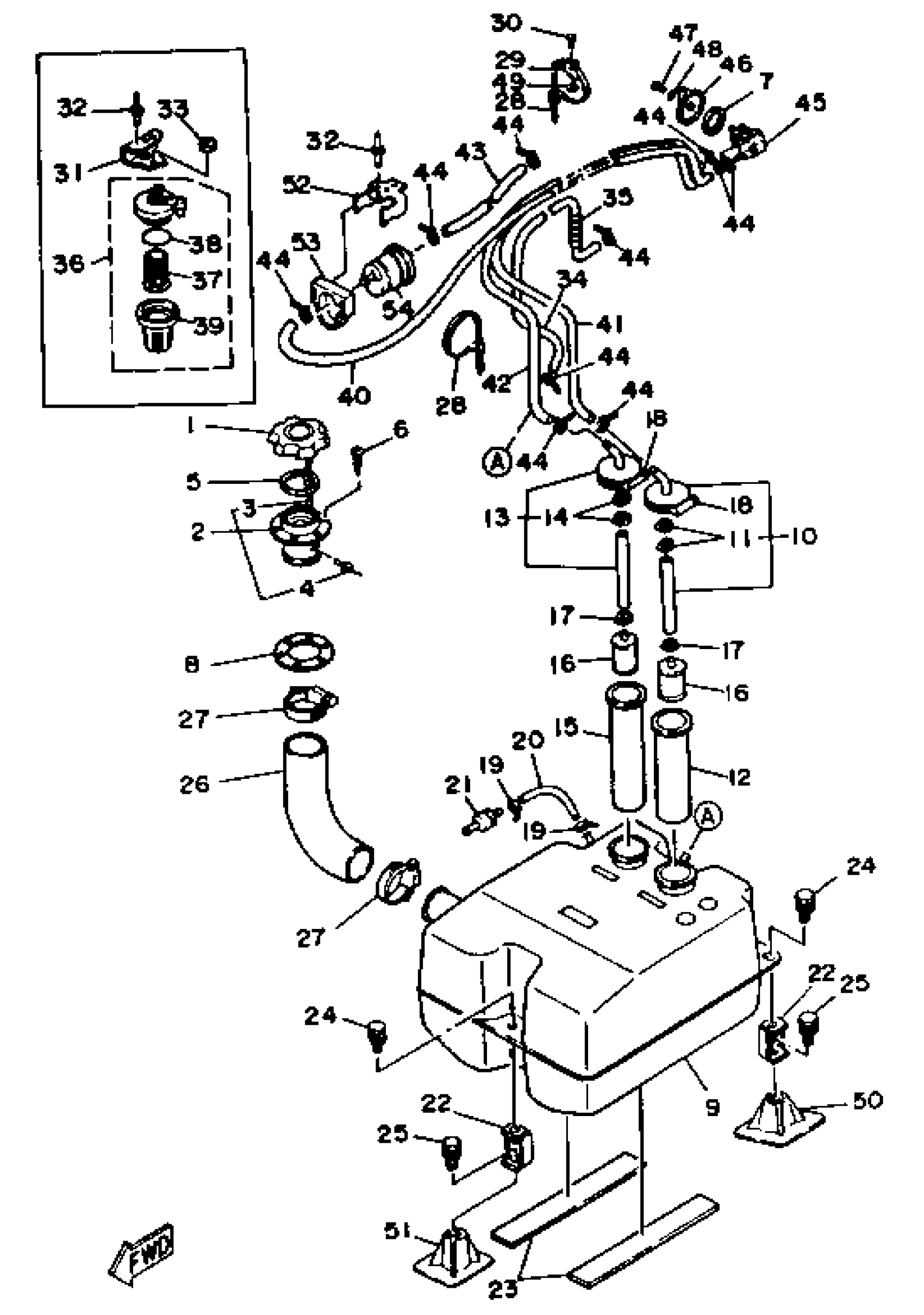

Yamaha WR500F (WAVE RUNNER) 1989 FUEL TANK Diagram
#
1
CAP, FUEL FILLER
EU0-67831-32-00
Unavailable
2
SOCKET
EU0-W6783-01-00
Unavailable
3
. CHAIN BALL
EU0-67835-00-00
Unavailable
4
. RIVET, BLIND
90267-40935-00
Unavailable
5
PACKING 1
EU0-67832-00-00
Unavailable
6
SCREW, FLAT HEAD
EU0-67869-00-00
Unavailable
7
NUT
90170-22M11-00
Unavailable
8
PACKING, FUEL FILLER
EU0-67834-00-00
Unavailable
9
TANK, FUEL
EU0-U7711-01-00
Unavailable
10
PIPE, SUCTION 1
EU0-24335-31-00
Unavailable
11
BAND, HOSE
90601-11052-00
Unavailable
12
PIPE, SUCTION 2
8V0-24336-00-00
Unavailable
13
PIPE, SUCTION 1
EU0-24335-01-00
Unavailable
14
BAND, HOSE
90601-11052-00
Unavailable
15
PIPE, SUCTUIN
813-24336-00-00
Unavailable
16
FILTER ASSY
8H5-24560-00-00
Unavailable
17
BAND, HOSE
90601-11052-00
Unavailable
18
BAND, HOSE 62
90601-162U5-00
Unavailable
19
CLAMP
90465-10098-00
Unavailable
20
HOSE, AIR VENT 1
EU0-67856-00-00
Unavailable
21
CHECK VALVE
EU0-67767-31-00
Unavailable
22
FIX FUEL TANK
EU0-67777-03-00
Unavailable
23
MAT 2
EU0-U7593-30-00
Unavailable
24
BOLT, WITH WASHER
90119-08907-00
Unavailable
25
BOLT, WITH WASHER
90119-08903-00
Unavailable
26
HOSE, FUEL FILLER
EU0-U7844-00-00
Unavailable
27
BAND, HOSE 55
90601-155U4-00
Unavailable
28
BAND (EU0)
90601-20009-00
Unavailable
29
RIVET, BLIND(EU0,USA)
90267-489U9-00
Unavailable
30
RIVET, BLIND(EU0,USA)
90267-489U9-00
Unavailable
31
BRACKET, fuel filter
EU0-67816-02-00
Unavailable
32
RIVET, BLIND
90267-48934-00
Unavailable
33
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
34
HOSE (L1040)
90445-10MA9-00
Unavailable
35
PLUG
90699-34100-00
Unavailable
36
FILTER ASSY
61N-24560-10-00
Unavailable
37
. ELEMENT, FILTER
6F5-24563-00-00
Unavailable
38
. O-RING
93210-37M25-00
Unavailable
39
. CUP, FILTER
655-24521-01-00
Unavailable
40
HOSE (L1700)
90445-10M87-00
Unavailable
41
HOSE (L1700)
90445-10M87-00
Unavailable
42
HOSE (L1700)
90445-10M87-00
Unavailable
43
HOSE
90445-10M08-00
Unavailable
44
CLAMP
90465-10098-00
Unavailable
45
FUEL COCK ASSY 1
6K8-24500-03-00
Unavailable
46
LEVER, COCK
6K8-24524-10-00
Unavailable
47
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
48
WASHER, PLAIN (646)
92990-04600-00
Unavailable
49
. WASHER, PLAIN
90201-05925-00
Unavailable
50
BASE, FUEL TANK 2
EU0-67745-31-00
Unavailable
51
BASE, FUEL TANK 1
EU0-67745-01-00
Unavailable
52
BRACKET, FUEL FILTER
FN8-67816-00-00
Unavailable
53
HOLDER
EU0-67817-00-00
Unavailable
54
FILTER ASSY
6K8-24560-21-00
Unavailable
