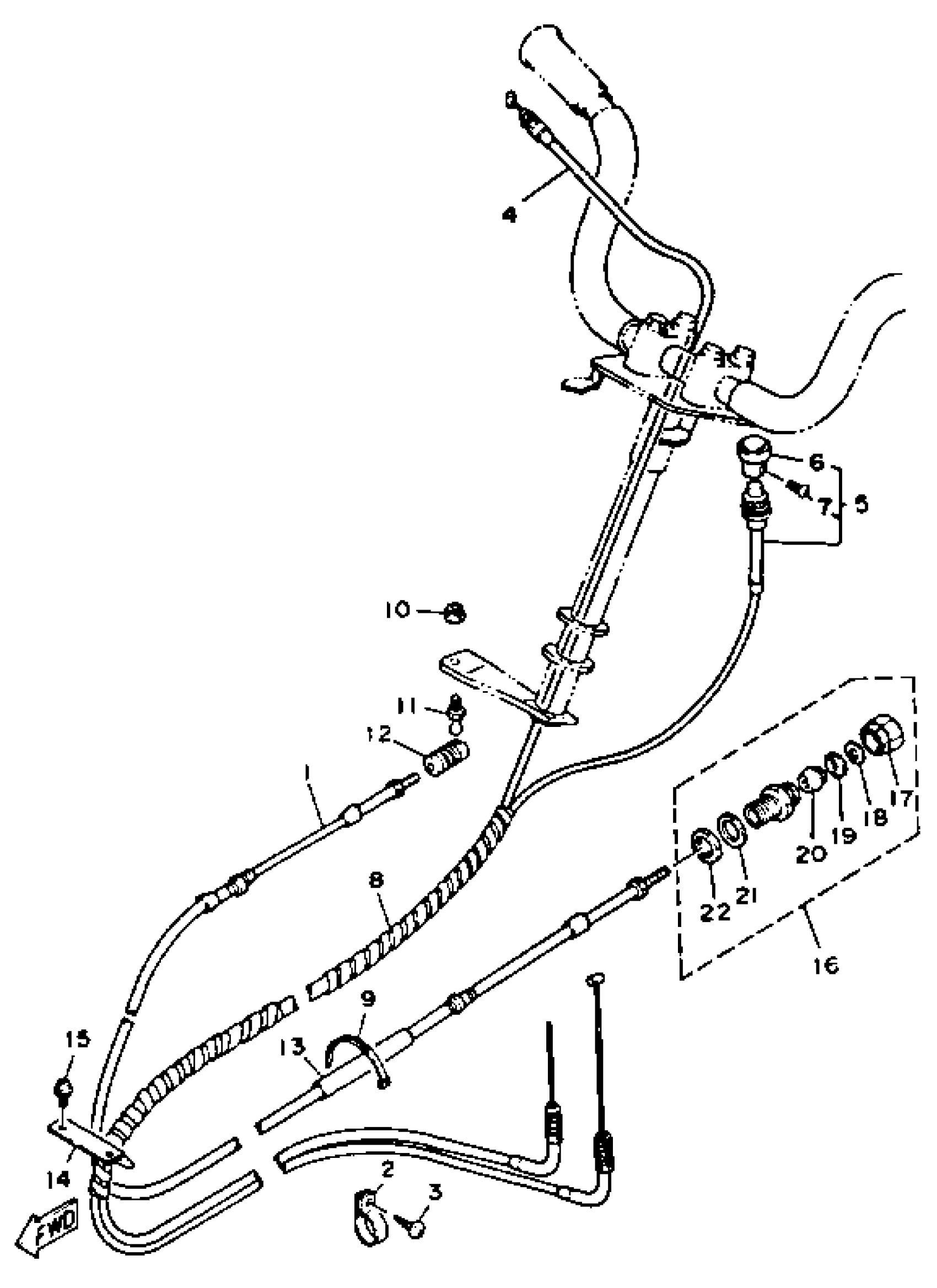

Yamaha WR500F (WAVE RUNNER) 1989 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

EU0-U1481-00-00

Unavailable

2

CLIP, NYLON 17

90600-91728-00

$5.45

3

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

$1.36

4

CABLE, THROTTLE 1

EU0-U7252-01-00

$120.63

5

CABLE CHOKE

EU0-U7242-01-00

Unavailable

6

. KNOB

EU0-67243-00-00

Unavailable

7

. SCREW

90149-03930-00

$1.21

8

SPI-LAP 11

90699-36100-00

Unavailable

9

BAND

90601-200U1-00

$2.77

10

NUT, FLANGE

95780-06300-00

$7.14

11

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

12

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

13

PIPE SLEEVE

EU0-61474-00-00

Unavailable

14

GUIDE, CABLE

EU0-61557-01-00

Unavailable

15

SCREW, W/WASHER

97680-04316-00

Unavailable

16

CONNECTOR, CABLE

EU0-67267-00-00

$35.71

17

. CAP

EU0-62694-00-00

$10.74

18

. WASHER 30

EU0-61446-00-00

$4.55

19

. STOPPER

EU0-61486-00-00

$6.82

20

. SEAL, PIPE 30

EU0-61435-00-00

$10.99

21

. PACKING (C)

EU0-61438-00-00

$8.32

22

. NUT, DRAIN 1

EU0-62241-30-00

$10.49
