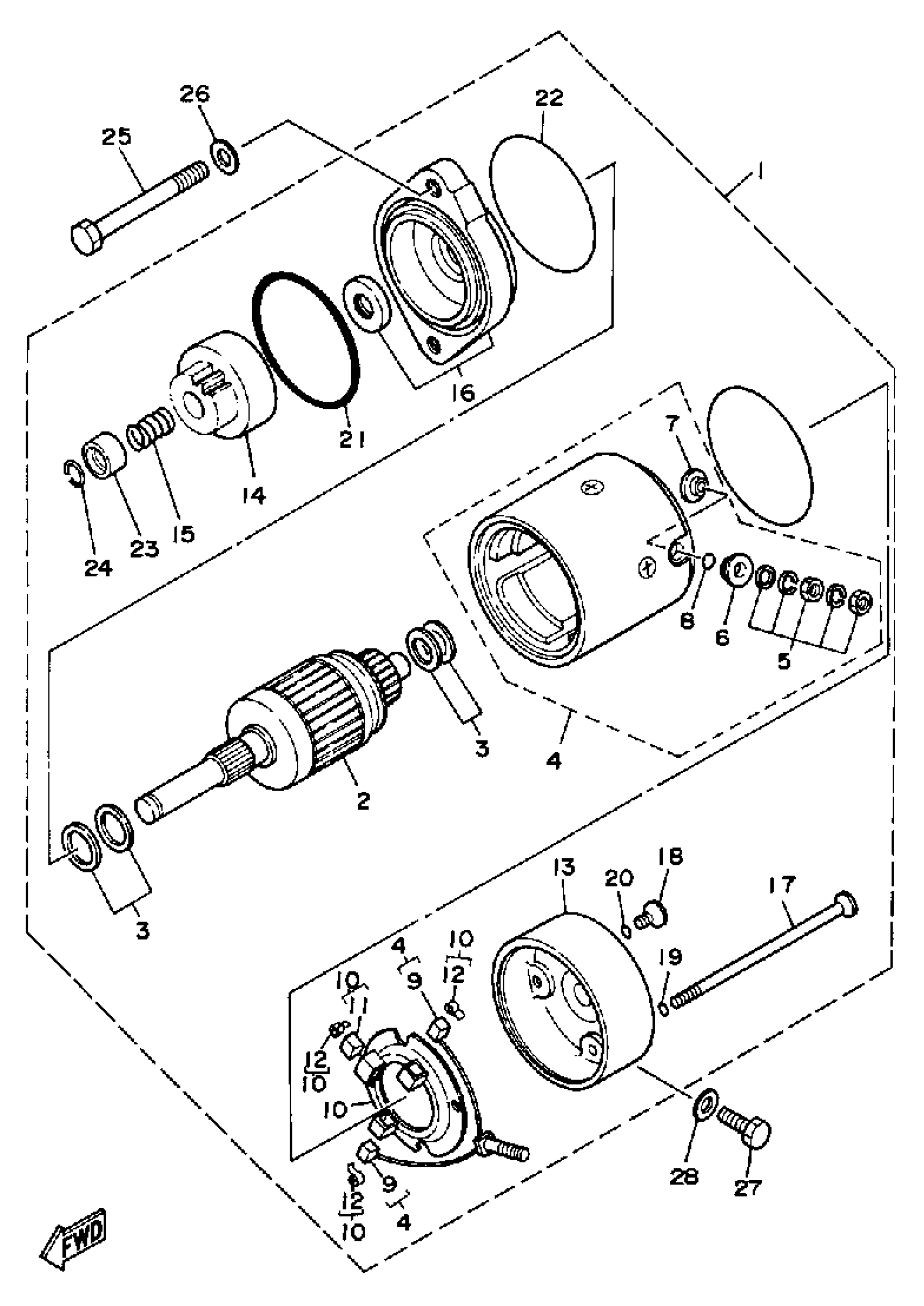

Yamaha WR500D (WAVE RUNNER) 1990 STARTING MOTOR Diagram

#

Description

Price

1

STARTING MOTOR ASSEMBLY

6K8-81800-12-00

Unavailable

2

. ARMATURE ASSEMBLY

6K8-81850-12-00

Unavailable

3

. WASHER KIT

6K8-81809-10-00

Unavailable

4

. STATOR ASSEMBLY

6K8-81810-10-00

Unavailable

5

.. NUT WASHER KIT

6K8-8182V-10-00

Unavailable

6

.. TERMINAL BUSH (1) (1)

6K8-8182G-10-00

Unavailable

7

.. TERMINAL BUSH (2) (2)

6K8-8182H-10-00

Unavailable

8

O-RING

6K8-81847-10-00

Unavailable

9

.. BRUSH 1

6K8-81811-10-00

Unavailable

10

. BRUSH HOLDER ASSEMBLY

6K8-81840-10-00

Unavailable

11

.. BRUSH 2

6K8-81812-10-00

Unavailable

12

.. SPRING, BRUSH

6K8-81813-10-00

Unavailable

13

. REAR BRACKET ASSEMBLY

6K8-81820-10-00

Unavailable

14

. PINION ASSY, STARTING MOTOR

6K8-81807-10-00

Unavailable

15

. SPRING, RETURN

676-81858-10-00

Unavailable

16

. FORNT BRACKET ASSEMBLY

6K8-81830-10-00

Unavailable

17

. BOLT

6K8-81826-10-00

Unavailable

18

. SCREW

6K8-81846-10-00

Unavailable

19

O-RING

6K8-81847-10-00

Unavailable

20

. O-RING (1) (1)

6K8-8182L-10-00

Unavailable

21

. O-RING (3) (3)

6K8-8182N-10-00

Unavailable

22

. O-RING (4) (4)

6K8-8182R-10-00

Unavailable

23

. STOPPER, PINION

676-81859-10-00

Unavailable

24

. RING

663-81834-10-00

Unavailable

25

BOLT (6K8)

97013-08075-00

Unavailable

26

.. WASHER, PLATE

92990-08600-00

Unavailable

27

BOLT(7U8)

97080-06020-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable
