1990 Yamaha Wave Runner (WR500D) JET Unit Diagram

← All diagrams

Find the part on the JET Unit diagram for your 1990 Yamaha Wave Runner (WR500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

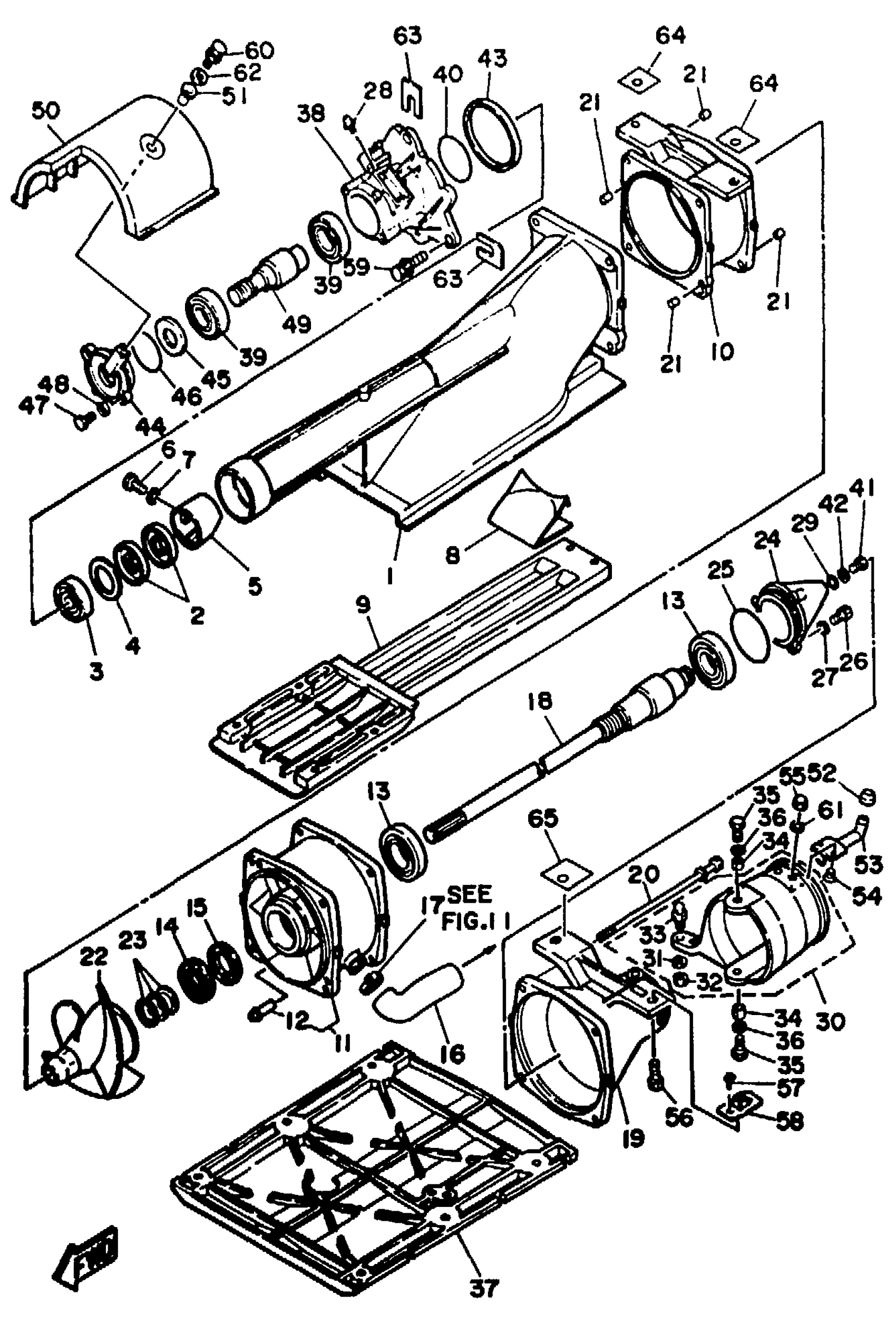

1990 Yamaha Wave Runner (WR500D) JET Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DUCT, INTAKE

6K8-51311-00-94

1
Out of stock

2

. OIL SEAL, S-TYPE

93101-17M31-00

1
Out of stock

3

BRG,R-B 6303 47MM 115G NK

93306-30302-00

1

$39.88

In stock

4

SHIM (T:0.90MM)

676-45567-20-00

1

$6.62

In stock

5

SPACER

6K8-51348-00-8S

1
Out of stock

6

BOLT(7U8)

97080-06020-00

1
Out of stock

7

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

8

PLATE 3

6K8-51347-00-8S

1
Out of stock

9

SCREEN, INTAKE

6K8-51333-00-8S

1
Out of stock

10

HOUSING, IMPELLER

6K8-51312-00-8S

1
Out of stock

11

DUCT, IMPELLER

99999-03840-00

1
Out of stock

12

. PIPE

6K8-51385-00-00

1
Out of stock

13

BEARING

93306-206U6-00

1
Out of stock

14

. OIL SEAL, SW-TYPE

93103-30M00-00

1
Out of stock

15

. OIL SEAL, S-TYPE

93101-30M32-00

1
Out of stock

16

HOSE, SPLASHER

6K8-51161-10-00

1
Out of stock

17

HOSE CLAMP ASSY

90450-32097-00

1

$13.99

In stock

18

SHAFT, DRIVE

6K8-45511-01-00

1

$613.99

In stock

19

NOZZULE

6K8-51318-00-9M

1
Out of stock

20

BOLT, WITH WASHER

90119-06M33-00

1
Out of stock

21

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

22

IMPELLER

6K8-51321-00-94

1
Out of stock

23

SHIM (T=0.1)

6K8-45567-00-01

1
Out of stock

23

SHIM (T=0.3)

6K8-45567-00-03

1
Out of stock

23

SHIM (T=0.5)

6K8-45567-00-05

1
Out of stock

23

SHIM (T=1.0)

6K8-45567-00-10

1
Out of stock

24

CAP

6K8-51326-00-94

1
Out of stock

25

. O-RING

93210-57M09-00

1

$5.93

In stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

27

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

28

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

29

. GASKET

90430-06M03-00

1

$2.97

In stock

30

NOZZLE, JET OUTPUT

6K8-51313-00-00

1
Out of stock

31

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

32

NUT(650)

95380-06700-00

—

$6.17

In stock

33

. BOLT, JOINT

6R7-42316-00-00

1

$34.49

In stock

34

COLLAR(47X)

90387-060G7-00

—
Out of stock

35

BOLT(7U8)

97080-06020-00

1
Out of stock

36

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

37

PLATE 2

EU0-62731-00-00

1
Out of stock

38

HOUSING, BEARING

6K8-45331-02-00

1
Out of stock

39

BEARING (6K8)

93306-205U1-00

—

$21.14

In stock

40

. O-RING

93210-52454-00

1
Out of stock

41

BOLT(GH1)

97080-06012-00

1
Out of stock

42

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

43

SEAL

6K8-45127-00-00

1

$15.49

In stock

44

PLATE

6K8-51332-00-00

1
Out of stock

45

OIL SEAL(6R7)

93101-25M50-00

—

$22.28

In stock

46

. O-RING

93210-46M16-00

1

$7.91

In stock

47

BOLT(7U8)

97080-06020-00

1
Out of stock

48

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

49

SHAFT, COUPLER

6K8-51323-02-00

1
Out of stock

50

COVER

6K8-51381-01-00

1
Out of stock

51

COLLAR

90387-06M60-00

1

$8.99

In stock

52

CAP, SPOUT

6R8-62695-00-00

1

$4.62

In stock

53

SPOUT

EU0-62693-02-00

1

$41.99

In stock

54

SCREW(617)

98780-05012-00

—

$3.03

In stock

55

.. NUT

95380-05800-00

1

$2.77

In stock

56

BOLT

90119-10906-00

1
Out of stock

57

SCREW, TAPPING (97780-40108-00)

97780-40508-00

1
Out of stock

58

NUT

90179-10919-00

1
Out of stock

59

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

60

BOLT, WITH WASHER

90119-06900-00

1

$4.15

In stock

61

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

62

WASHER, PLATE

90202-10024-00

1

$6.33

In stock

63

SHIM (T=0.5)

EU0-67354-C0-00

1

$4.45

In stock

63

SHIM (T=0.3)

EU0-67354-30-03

1
Out of stock

63

SHIM (T=1.0) (EU0-67354-30-10)

EU0-U7354-30-10

1
Out of stock

64

SHIM (T=1.5) (T=1.5)

EU0-67354-40-00

1
Out of stock

65

SHIM (T=2.0) (T=2.0)

EU0-67354-50-00

1
Out of stock
