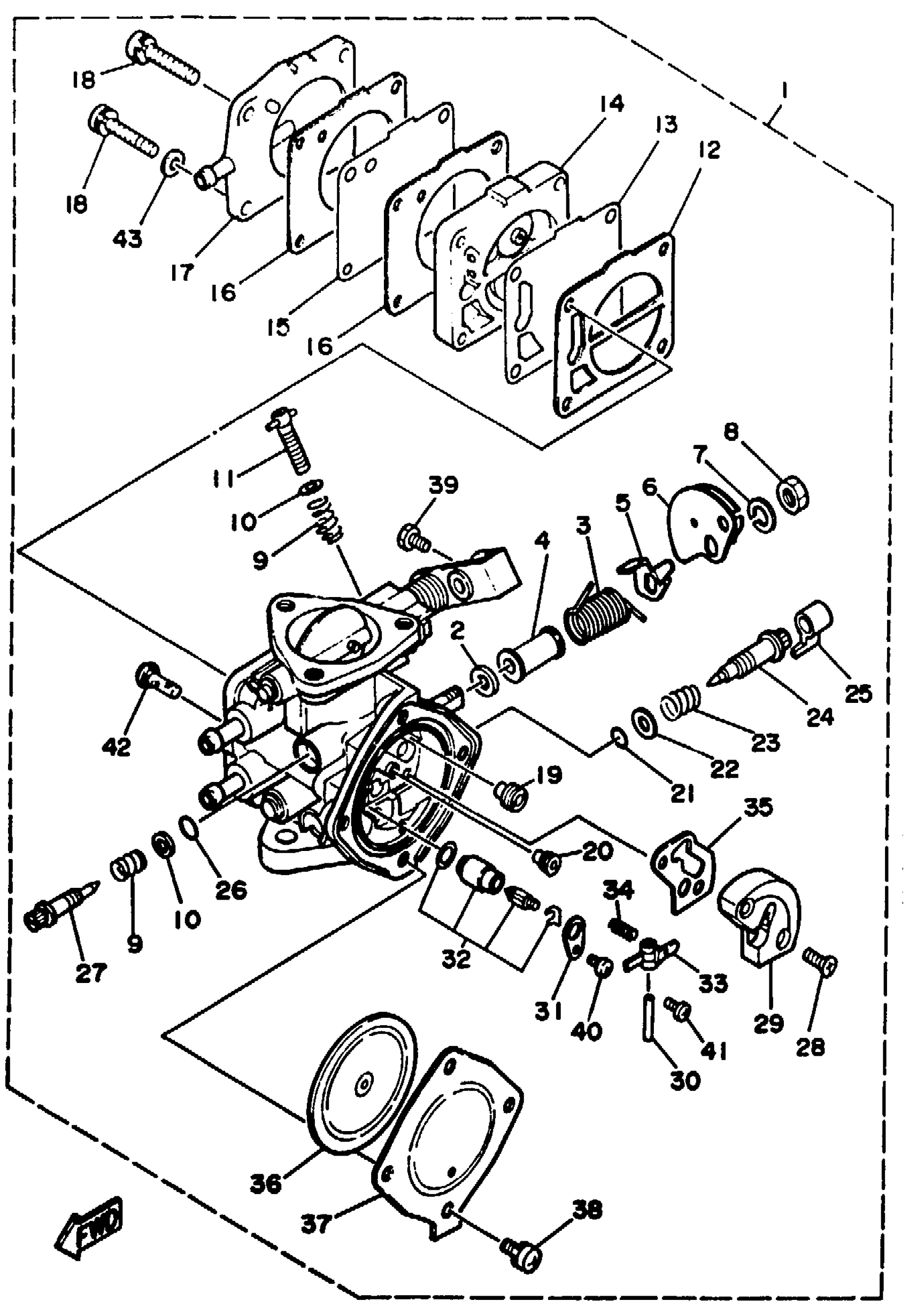

Yamaha WR500D (WAVE RUNNER) 1990 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

6K8-14301-11-00

Unavailable

2

. WASHER

6K8-14596-10-00

Unavailable

3

. SPRING

6K8-14556-10-00

Unavailable

4

. COLLAR

6K8-14534-10-00

$19.68

5

. BRACKET, THROTTLE 1

6K8-14926-10-00

$19.68

6

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

Unavailable

7

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

8

. NUT

95380-08700-00

$3.05

9

. SPRING, ADJUST SCREW

6K8-14533-00-00

Unavailable

10

WASHER,NEEDLE

812-14235-00-00

$2.44

11

. SCREW, ADJUST

6K8-14521-00-00

$27.26

12

. GASKET, BODY 2

6K8-24435-10-00

Unavailable

13

. DIAPHRAGM

6K8-24411-10-00

Unavailable

14

. BODY 2

6K8-24413-10-00

Unavailable

15

. VALVE, CHECK

6K8-24421-10-00

$24.44

16

. GASKET, FUEL PUMP 1

6K8-24431-10-00

$11.99

17

. COVER

6K8-24452-10-00

Unavailable

18

SCREW, WITH WASHER(61B)

97985-05330-00

$2.80

19

. JET, MAIN 80 (80)

3G2-14231-16-00

Unavailable

20

JET,MAIN #77.5

830-1423A-66-00

Unavailable

21

. O-RING

6K8-14561-00-00

Unavailable

22

. WASHER

6K8-14537-00-00

$3.18

23

. SPRING

6K8-14589-00-00

$3.70

24

. SCREW, PILOT

6K8-14923-10-00

Unavailable

25

. CAP, CARBURETOR

6K8-14481-10-00

Unavailable

26

. O-RING

6K8-14562-00-00

$1.88

27

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

28

. SCREW, FLAT HEAD (98702-04014-00 )

6K8-14523-10-00

Unavailable

29

BODY 1

6K8-24412-11-00

Unavailable

30

. PIN, FLOAT

6K8-14579-00-00

Unavailable

31

. PLATE

6K8-14527-11-00

$11.35

32

NEEDLE

61X-14916-16-00

$22.90

33

. ARM, FLOAT

6K8-14547-01-00

$8.26

34

. SPRING

6K8-14253-10-00

Unavailable

35

. GASKET

6K8-14536-11-00

$8.14

36

. DIAPHRAM, PUMP

6K8-14541-10-00

Unavailable

37

BODY,PUMP 1

6R7-14542-10-00

Unavailable

38

. SCREW

6K8-14591-10-00

$4.57

39

. SCREW

6K8-14592-00-00

Unavailable

40

. SCREW, ADJUST

6K8-14522-00-00

Unavailable

41

SCREW, FLAT

98707-03008-00

Unavailable

42

. STRAINER

6R7-14569-00-00

$11.48

43

WASHER, PLAIN (646)

92990-05600-00

Unavailable
