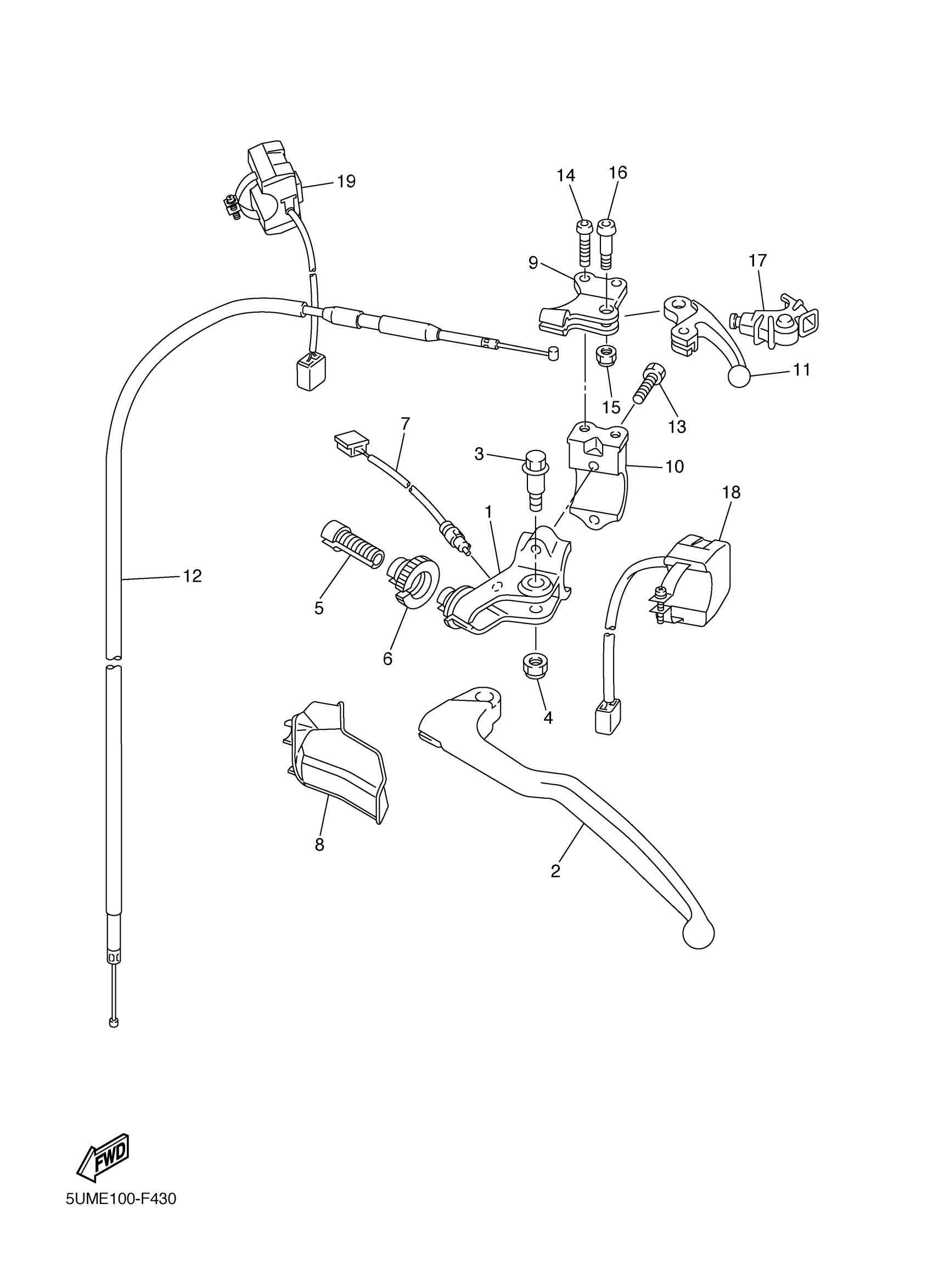

Yamaha WR450FY (WR450F) 5TJN 2009 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

5TJ-82911-80-00

Unavailable

2

LEVER 1

5TJ-83912-82-00

$33.99

3

BOLT

90109-06034-00

$7.49

4

NUT, LENS FITTING

5LP-84126-10-00

$6.99

5

BOLT, ADJUSTING

5HD-26337-00-00

$11.99

6

BOLT, CABLE ADJUST

5HD-83951-01-00

$44.99

7

SWITCH

5TJ-82917-02-00

$46.99

8

COVER, HANDLE LEVER 1

5TJ-26372-80-00

$37.99

9

HOLDER, STARTER LEVER

5XD-82946-01-00

$31.99

10

HOLDER, LEVER LOWER 1

5XD-82913-01-00

$16.49

11

LEVER, STARTER

5TA-83941-00-00

Unavailable

12

CABLE, STARTER 2

5UM-26334-E0-00

$37.99

13

BOLT(6A1)

97095-05016-00

$1.11

14

BOLT, BUTTON HEAD

92012-05012-00

$4.41

15

NUT, U

95617-05100-00

$9.49

16

SCREW (4X4)

90149-05162-00

Unavailable

17

BOOT

5TA-26339-00-00

Unavailable

18

SWITCH, HANDLE 1

5UM-83976-E2-00

Unavailable

19

SWITCH, HANDLE 1

5UM-83976-F2-00

Unavailable
