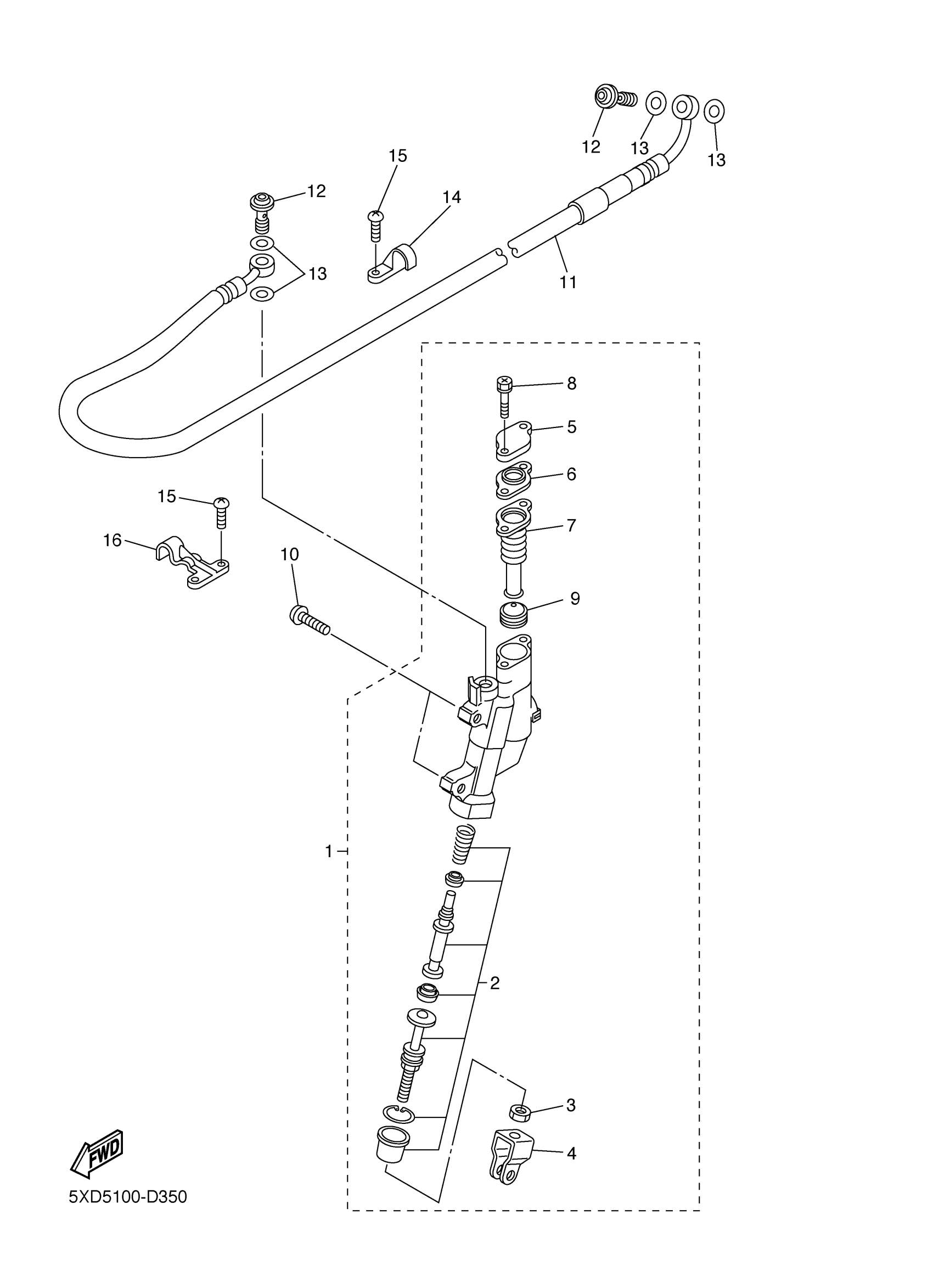

Yamaha WR450FX (WR450F) 5TJJ 2008 REAR MASTER CYLINDER Diagram

Description

Price

RR. MASTER CYLINDER ASSY.

1C3-2583V-00-00

$301.99

CYLINDER KIT, MASTER

5UN-W0042-50-00

$89.99

NUT

5UN-27218-00-00

$4.89

JOINT

5UN-27222-00-00

$17.49

CAP, RESERVOIR

5UN-25852-50-00

$17.49

PLATE, DIAPHRAGM

5UN-2585B-00-00

$7.99

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

$14.49

BOLT

5UN-27217-00-00

$5.49

SEPARATOR ASSY

5CG-25715-00-00

$13.49

BOLT

90111-06059-00

$4.72

HOSE, BRAKE 2

5XC-25873-L2-00

$69.99

BOLT, UNION

90401-10172-00

$5.60

GASKET

90430-10005-00

$9.49

HOLDER, BRAKE HOSE

1C3-25886-50-00

$14.49

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

HOLDER, BRAKE HOSE 2

1C3-25876-50-00

Unavailable
