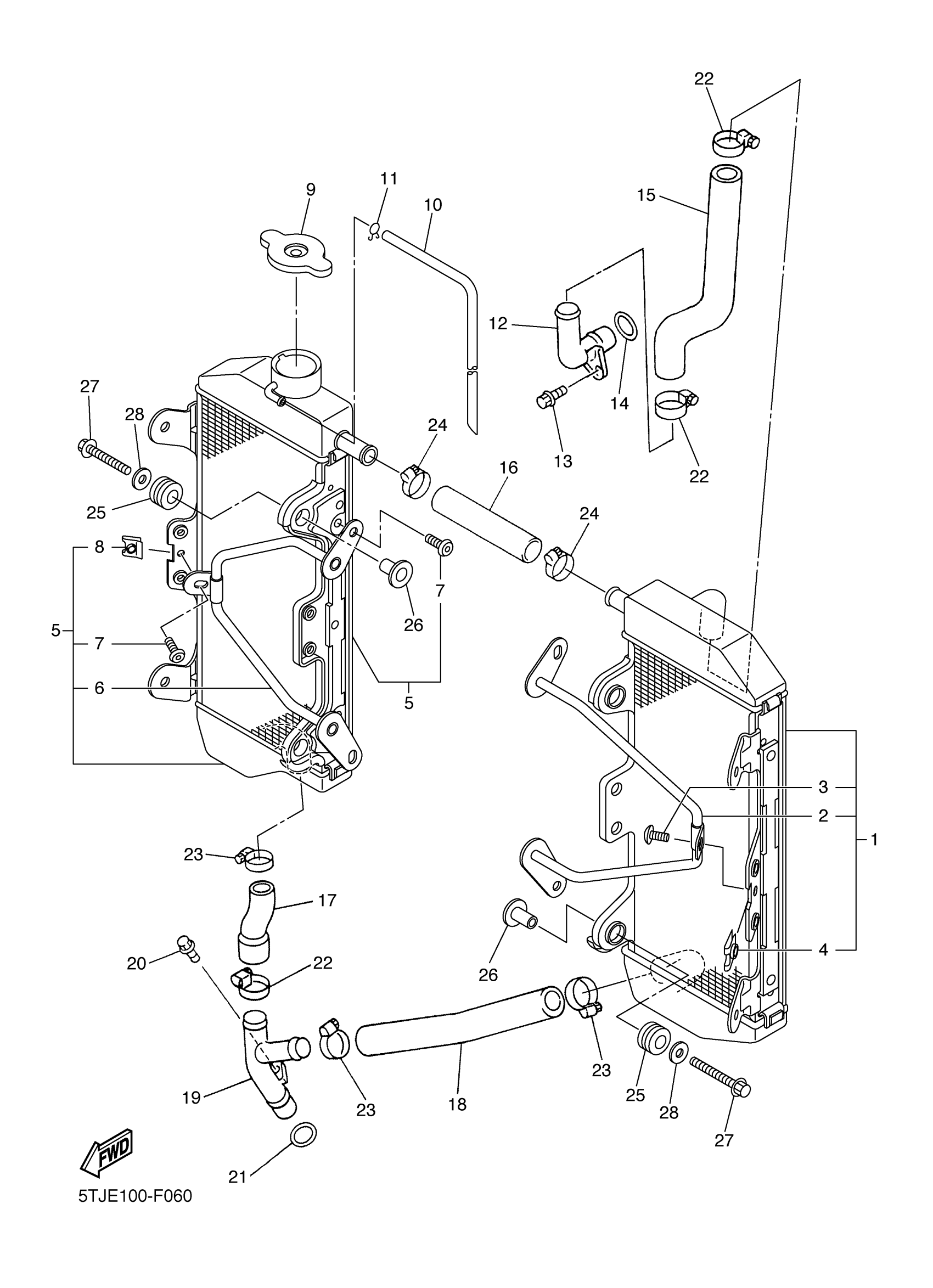

Yamaha WR450FX (WR450F) 5TJJ 2008 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5TJ-1240A-E0-00

Unavailable

2

STAY, RADIATOR

2S2-12464-70-00

Unavailable

3

BOLT, BUTTON HEAD

92012-06010-00

$4.30

4

NUT, SPRING

90183-060A6-00

$5.49

5

RADIATOR ASSY

2S2-12461-70-00

Unavailable

6

STAY, RADIATOR

2S2-12464-70-00

Unavailable

7

BOLT, BUTTON HEAD

92012-06010-00

$4.30

8

NUT, SPRING

90183-060A6-00

$5.49

9

CAP, RADIATOR

4FL-12462-00-00

$62.99

10

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$29.99

11

CLIP

90467-090A2-00

$4.41

12

PIPE 1

2S2-12481-00-00

Unavailable

13

BOLT,SOCKET

91317-06012-00

$8.49

14

O-RING (5U8)

93210-16500-00

$7.49

15

HOSE 1

2S2-12576-00-00

$20.99

16

PIPE 2

1C3-12482-00-00

Unavailable

17

HOSE 3

2S2-12578-00-00

Unavailable

18

HOSE 4

5TJ-12579-E0-00

Unavailable

19

PIPE 2

2S2-12482-00-00

Unavailable

20

BOLT, FLANGE

95022-06012-00

Unavailable

21

O-RING (5U8)

93210-16500-00

$7.49

22

HOSE CLAMP ASSY

90450-28001-00

Unavailable

23

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

24

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

25

GROMMET(3RB)

90480-15528-00

Unavailable

26

COLLAR

90387-06065-00

Unavailable

27

BOLT, FLANGE

90105-06111-00

Unavailable

28

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable
