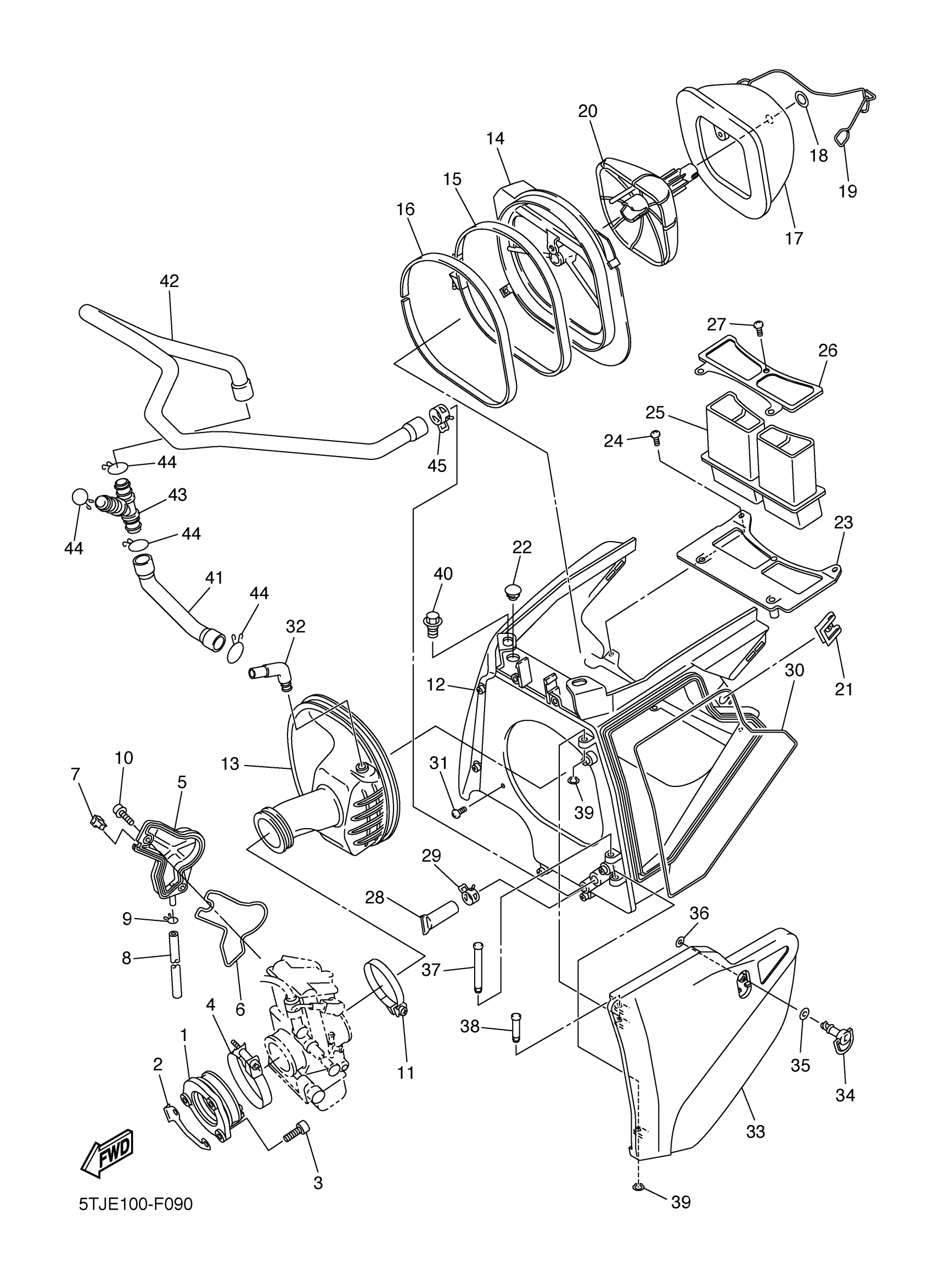

Yamaha WR450FX (WR450F) 5TJJ 2008 INTAKE Diagram
#
2
BRACKET 1
5TJ-14291-00-00
Unavailable
12
AIR CLEANER CASE ASSY
5UM-14401-E0-00
Unavailable
13
JOINT, AIR CLEANER 1
5TJ-14453-E0-00
Unavailable
16
SPACER
5NY-14442-00-00
Unavailable
17
ELEMENT, AIR CLEANER
5UM-14451-E1-00
Unavailable
18
WASHER
5TJ-14475-00-00
Unavailable
19
BINDER 1
5UM-1441G-E0-00
Unavailable
20
GUIDE
5TJ-14458-00-00
Unavailable
21
PLATE, SPRING
4XV-2177L-01-00
Unavailable
22
PLUG 288833190000
90338-07043-00
Unavailable
23
DUCT
5UM-14437-E0-00
Unavailable
24
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
25
DUCT
5UM-1443A-E0-00
Unavailable
26
COVER 1
5UM-14417-E0-00
Unavailable
27
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
28
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
29
CLIP(3TB)
90467-17128-00
Unavailable
30
SEAL
51Y-14462-00-00
Unavailable
31
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
32
PIPE
5TJ-14419-00-00
Unavailable
33
COVER, CLEANER CASE 1
5UM-1441A-E0-00
Unavailable
34
HEAD
3FV-28386-00-00
Unavailable
35
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
36
WASHER, SPECIAL 1
5TJ-21757-00-00
Unavailable
37
PIN
90249-05005-00
Unavailable
38
PIN
90249-05004-00
Unavailable
39
CIRCLIP (EU0)
99080-04600-00
Unavailable
40
BOLT
90109-06245-00
Unavailable
41
PIPE, BREATHER 2
5TJ-11167-10-00
Unavailable
42
PIPE, BREATHER 3
5TJ-11126-00-00
Unavailable
43
WAY 3
90413-14001-00
Unavailable
44
CLIP
90467-160A4-00
Unavailable
45
CLIP(3TB)
90467-17128-00
Unavailable
