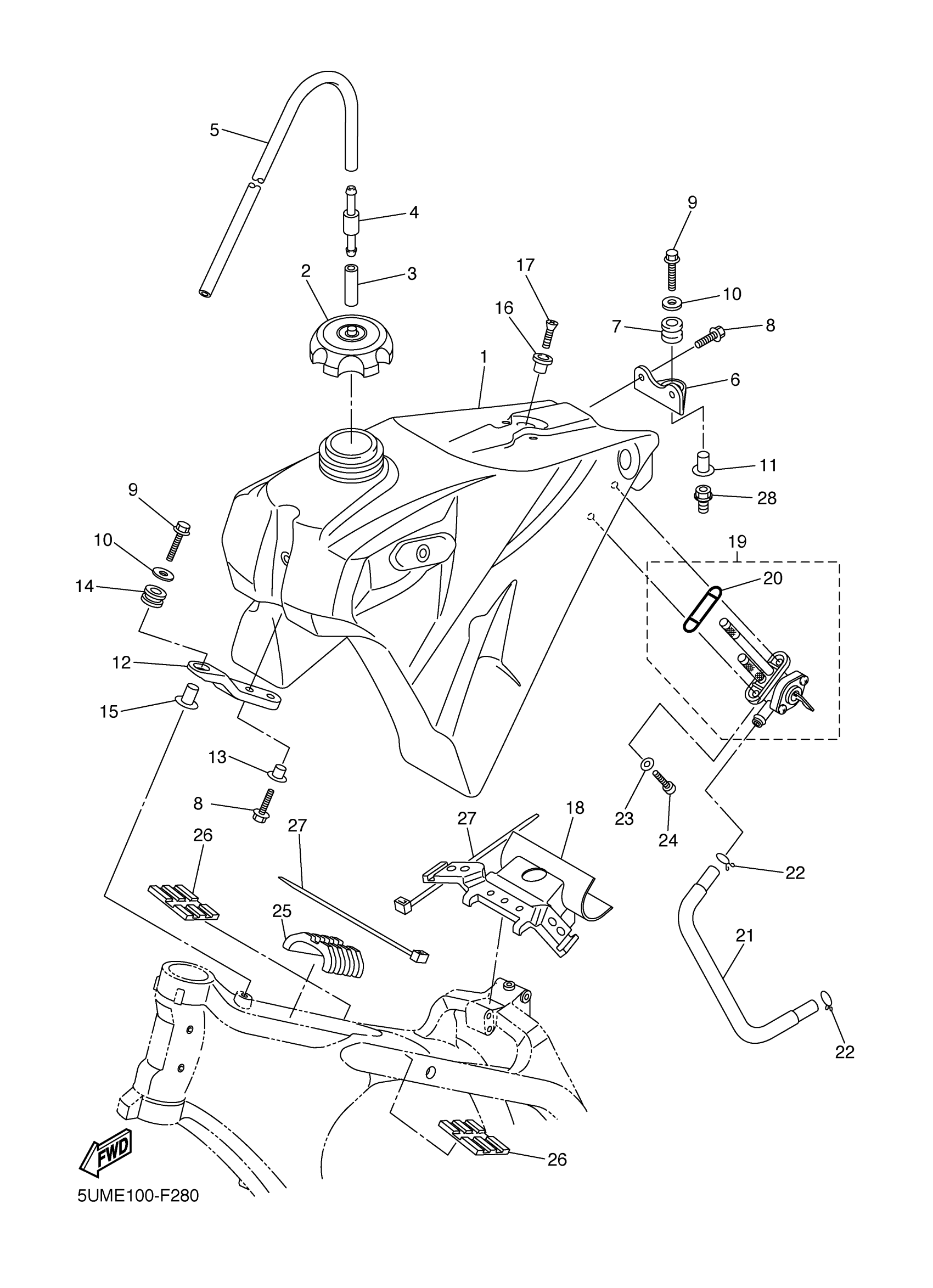

Yamaha WR450FX (WR450F) 5TJJ 2008 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5TJ-24110-J0-00

Unavailable

2

CAP ASSY

5NY-24610-10-00

$61.99

3

HOSE

90445-09027-00

$10.49

4

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

5

HOSE (L420)

90445-092K1-00

$12.49

6

HOLDER, DAMPER

5XE-24144-00-00

$23.99

7

GROMMET(4AA)

90480-18549-00

$10.49

8

BOLT, FLANGE

90105-06107-00

$8.49

9

BOLT, FLANGE

90105-06111-00

$8.49

10

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

$10.49

11

WASHER, SPECIAL

3JD-24186-00-00

$13.49

12

HOLDER

5XC-2419A-90-00

$15.49

13

COLLAR

90387-06090-00

$8.49

14

GROMMET

5XC-24339-90-00

$7.99

15

COLLAR

90387-06065-00

$12.49

16

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

17

SCREW, FLAT HEAD

98702-06025-00

Unavailable

18

DAMPER, LOCATING 1

5UM-24181-E0-00

Unavailable

19

FUEL COCK ASSY 1

5UM-24500-E0-00

Unavailable

20

GASKET

1P6-24512-00-00

Unavailable

21

PIPE, FUEL 1

5TJ-24311-J0-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

SCREW

90149-06108-00

Unavailable

25

DAMPER, LOCATING 2

5XC-24182-90-00

Unavailable

26

DAMPER, LOCATING 3

5XC-24183-90-00

Unavailable

27

CLAMP(MF1)

90464-15152-00

Unavailable

28

NUT

1C3-21244-20-00

Unavailable
