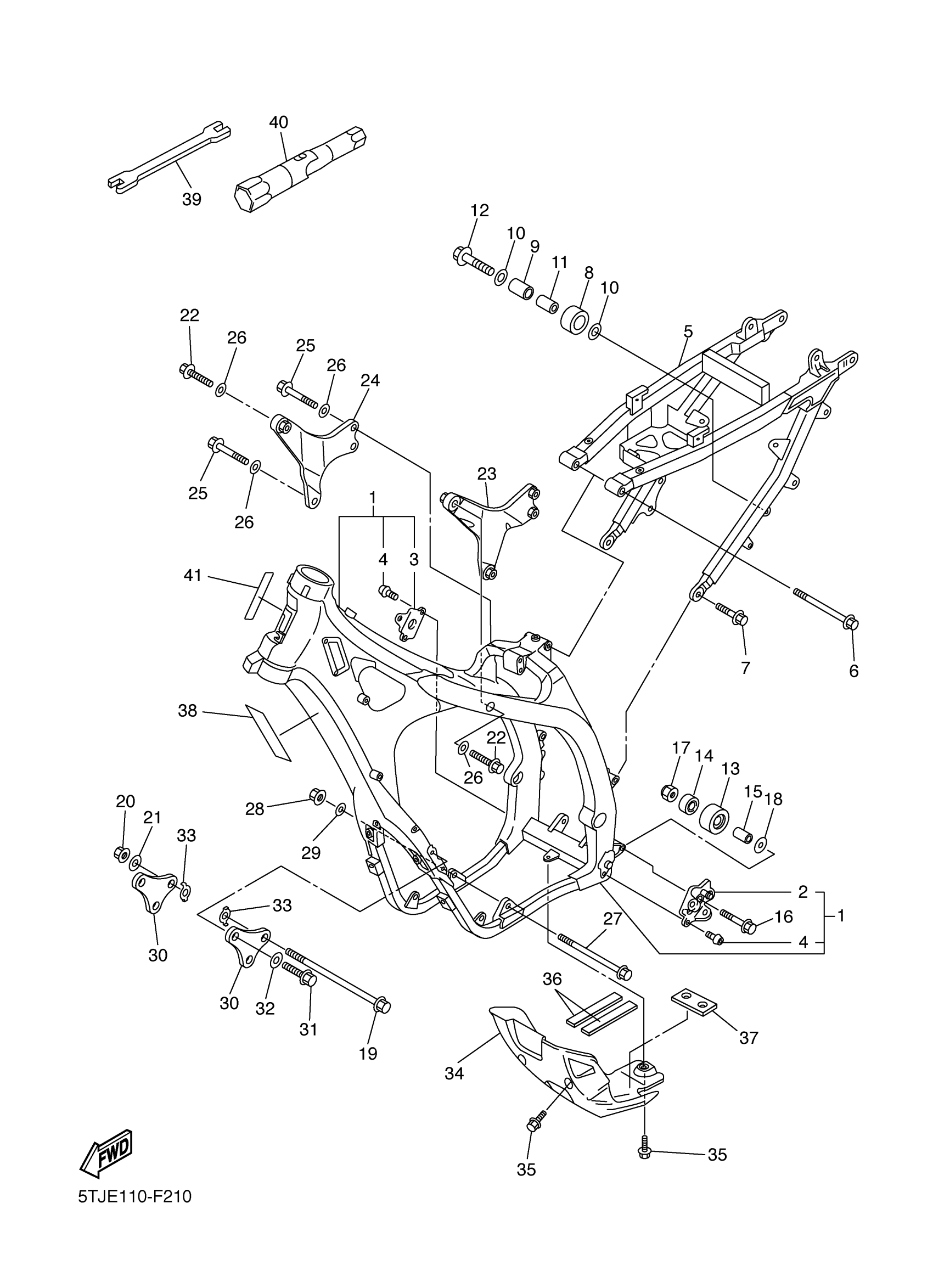

Yamaha WR450FX (WR450F) 5TJJ 2008 FRAME Diagram
#
1
FRONT FRAME COMP.
5TJ-21101-E0-00
Unavailable
2
BRACKET, FOOTREST
5UM-21447-E0-00
Unavailable
5
REAR FRAME COMP.
5UM-21190-E0-00
Unavailable
16
BOLT, FLANGE
90105-08133-00
Unavailable
17
NUT, U
95617-08100-00
Unavailable
18
WASHER, PLATE
90201-08043-00
Unavailable
19
BOLT, FLANGE
90105-10193-00
Unavailable
20
NUT(4KG)
90179-10658-00
Unavailable
21
WASHER, PLATE
90201-10045-00
Unavailable
22
BOLT, FLANGE
90105-10189-00
Unavailable
23
BRACKET, REAR UPPER 1
2S2-21425-70-00
Unavailable
24
BRACKET, REAR UPPER 2
2S2-21426-70-00
Unavailable
25
BOLT, FLANGE
90105-10191-00
Unavailable
26
WASHER, PLATE
90201-10045-00
Unavailable
27
BOLT, FLANGE
90105-10176-00
Unavailable
28
NUT(4KG)
90179-10658-00
Unavailable
29
WASHER, PLATE
90201-10045-00
Unavailable
30
BRACKET, FRONT LOWER 1
2S2-21417-00-00
Unavailable
31
BOLT, FLANGE
90105-08143-00
Unavailable
32
. WASHER
92902-08200-00
Unavailable
33
PLATE, PATCH
5XC-21456-90-00
Unavailable
34
GUARD, ENGINE 1
5UM-2147A-E0-00
Unavailable
35
BOLT, WITH WASHER
90119-06166-00
Unavailable
36
DAMPER 2
5UM-21486-E0-00
Unavailable
37
DAMPER, RUBBER 1
5TJ-21485-E1-00
Unavailable
38
PLATE, EPA
5TJ-2179C-20-00
Unavailable
39
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
40
BOX, SPARK PLUG
5TA-2814F-00-00
Unavailable
41
SEAL
5UM-21268-E0-00
Unavailable
