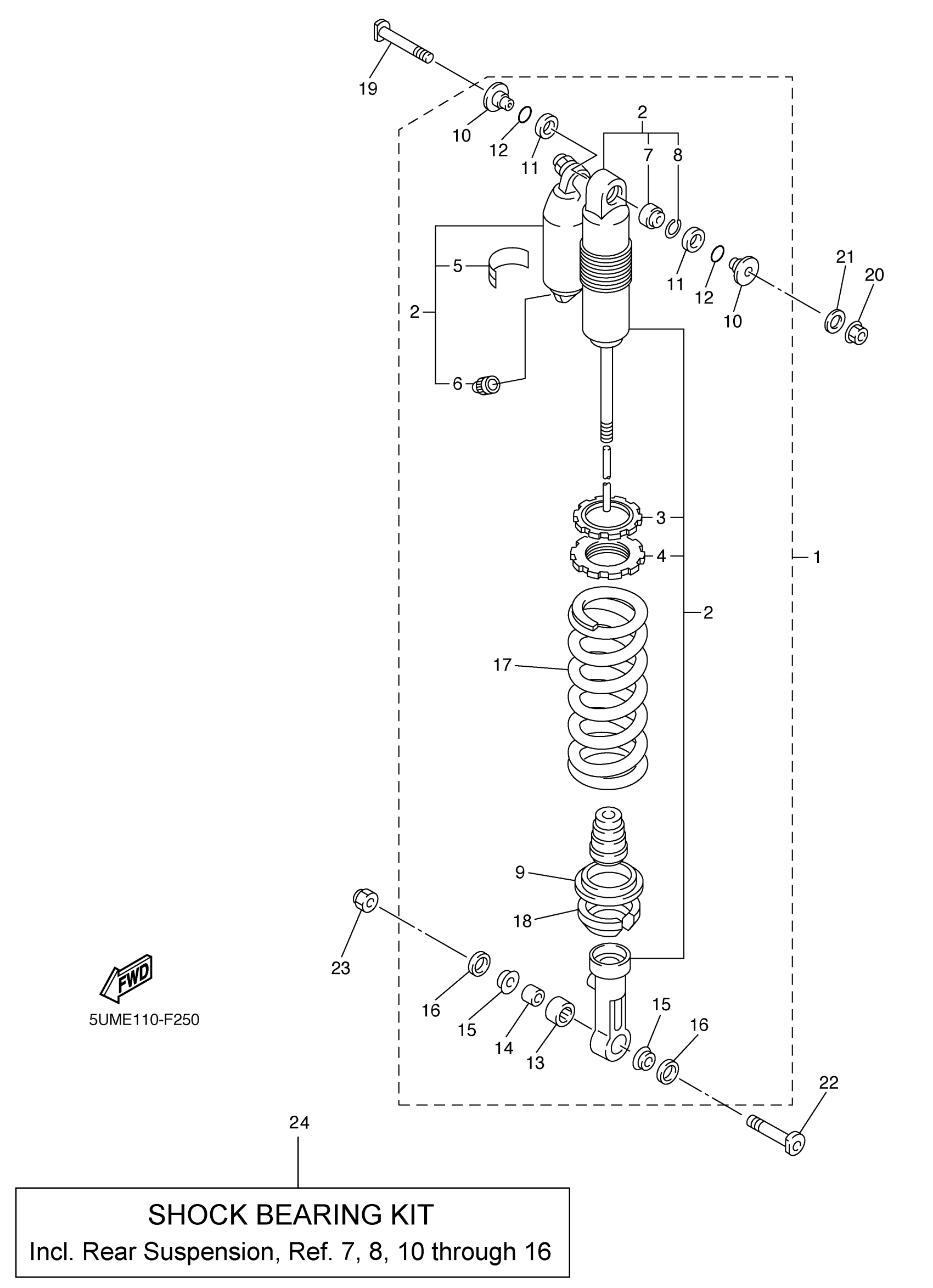

Yamaha WR450FW (WR450F) 5TJE 2007 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

5TJ-22210-E1-00

$1,289.99

2

DAMPER SUB ASSY

5TJ-22201-E0-00

Unavailable

3

GUIDE, SPRING 3

3SP-22234-00-00

$40.48

4

SEAT, SPRING UPPER

3SP-22213-00-00

$41.32

5

LABEL, WARNING

4AA-22259-80-00

$11.85

6

CAP, AIR VALVE

509-23184-L0-00

$6.38

7

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$46.76

8

CIRCLIP

5DH-23183-00-00

$4.70

9

GUIDE, SPRING 2

5MV-22224-00-00

$21.77

10

COLLAR, DISTANCE

1C3-22253-50-00

$41.74

11

SEAL, DUST

3JE-22475-00-00

$9.87

12

SEAL, RING

4EW-22474-00-00

$5.55

13

BEARING

5UN-22176-00-00

$26.03

14

BUSH

5MV-22184-00-00

$20.00

15

COLLAR, DISTANCE

5MV-22253-00-00

$14.07

16

SEAL, DUST

5NY-22475-00-00

Unavailable

17

SPRING (K=54N/MM)

5UN-22212-60-00

$265.42

18

GUIDE, SPRING 1

5XE-22214-00-00

Unavailable

19

BOLT 2

5XE-22242-01-00

Unavailable

20

NUT, S/L FLANGE

95602-10200-00

Unavailable

21

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

22

BOLT 1

5NY-22241-00-00

Unavailable

23

NUT, SELF-LOCKING

90185-10012-00

Unavailable

24

SWING ARM PIVOT BEARING KIT

1C3-W002G-00-00

Unavailable
