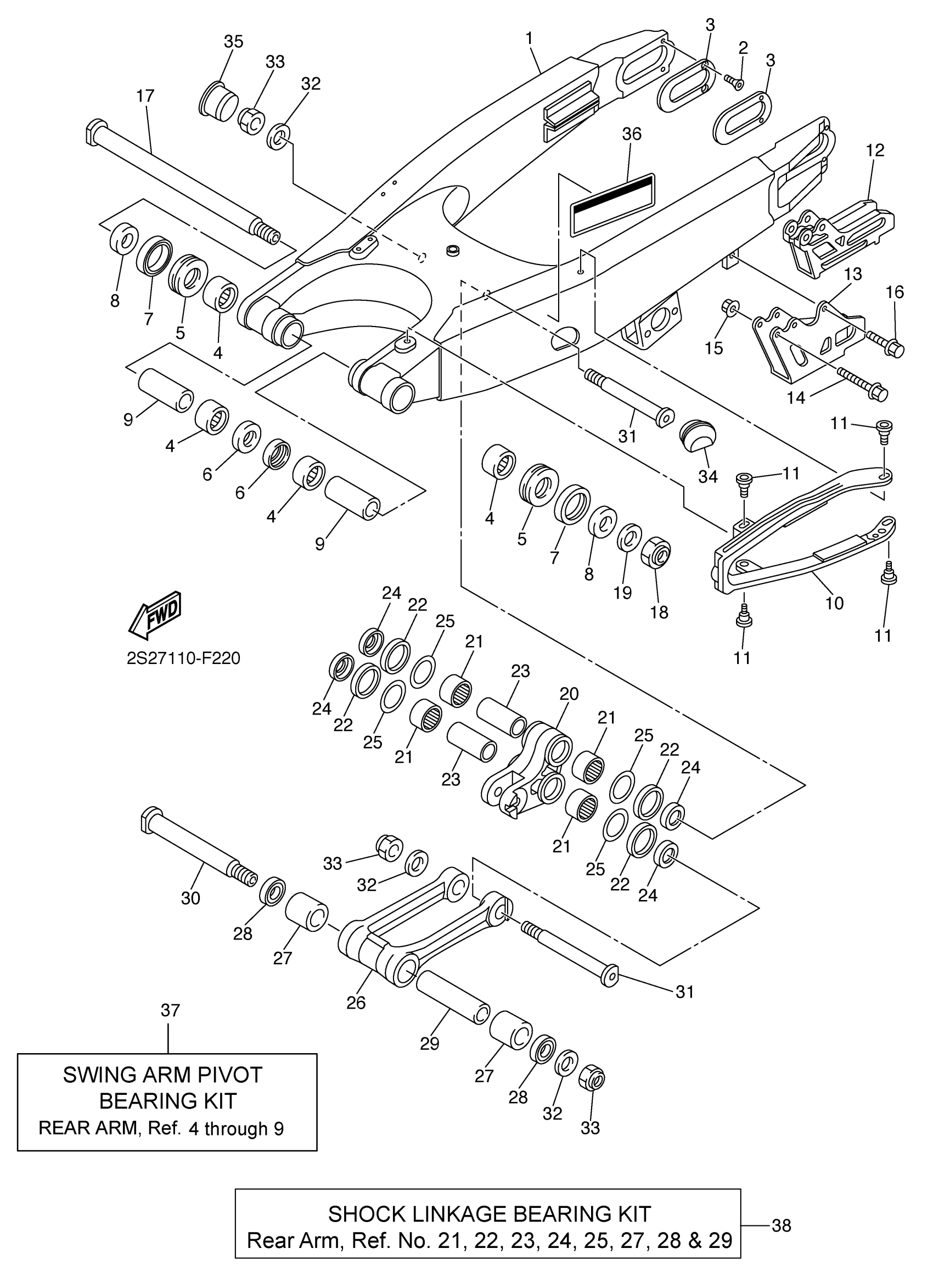

Yamaha WR450FW (WR450F) 5TJE 2007 REAR ARM Diagram
#
Description
Price
1
REAR ARM COMP.
2S2-22110-70-00
Unavailable
16
BOLT, FLANGE
90105-06105-00
Unavailable
17
SHAFT, PIVOT
1C3-22141-10-00
Unavailable
18
NUT, SELF-LOCKING
90185-16002-00
Unavailable
19
WASHER, PLATE
90201-16018-00
Unavailable
20
ARM, RELAY
5XC-2217A-90-00
Unavailable
21
BEARING
93315-32166-00
Unavailable
22
OIL SEAL
93109-25001-00
Unavailable
23
COLLAR
90387-16025-00
Unavailable
23
COLLAR
90387-16025-00
Unavailable
24
WASHER
90209-16011-00
Unavailable
25
WASHER, PLATE
90201-21014-00
Unavailable
26
ROD, CONNECTING 1
5XC-2217F-90-00
Unavailable
27
BEARING
93315-32269-00
Unavailable
28
OIL SEAL (20.9X28X4-1W1)
93109-22019-00
Unavailable
29
COLLAR
90387-14009-00
Unavailable
30
SHAFT 1
5XC-22121-91-00
Unavailable
31
SHAFT 2
1C3-22122-00-00
Unavailable
32
WASHER, PLATE
90201-14020-00
Unavailable
33
NUT, SELF-LOCKING
90185-14010-00
Unavailable
34
COVER
1C3-2135F-00-00
Unavailable
35
COVER 2
1C3-2139R-00-00
Unavailable
36
LABEL, TIRE
3RV-21668-A1-00
Unavailable
37
SWING ARM PIVOT BEARING KIT
1HC-W002C-00-00
Unavailable
38
SHOCK LINKAGE BEARING KIT
1HC-W002E-00-00
Unavailable
