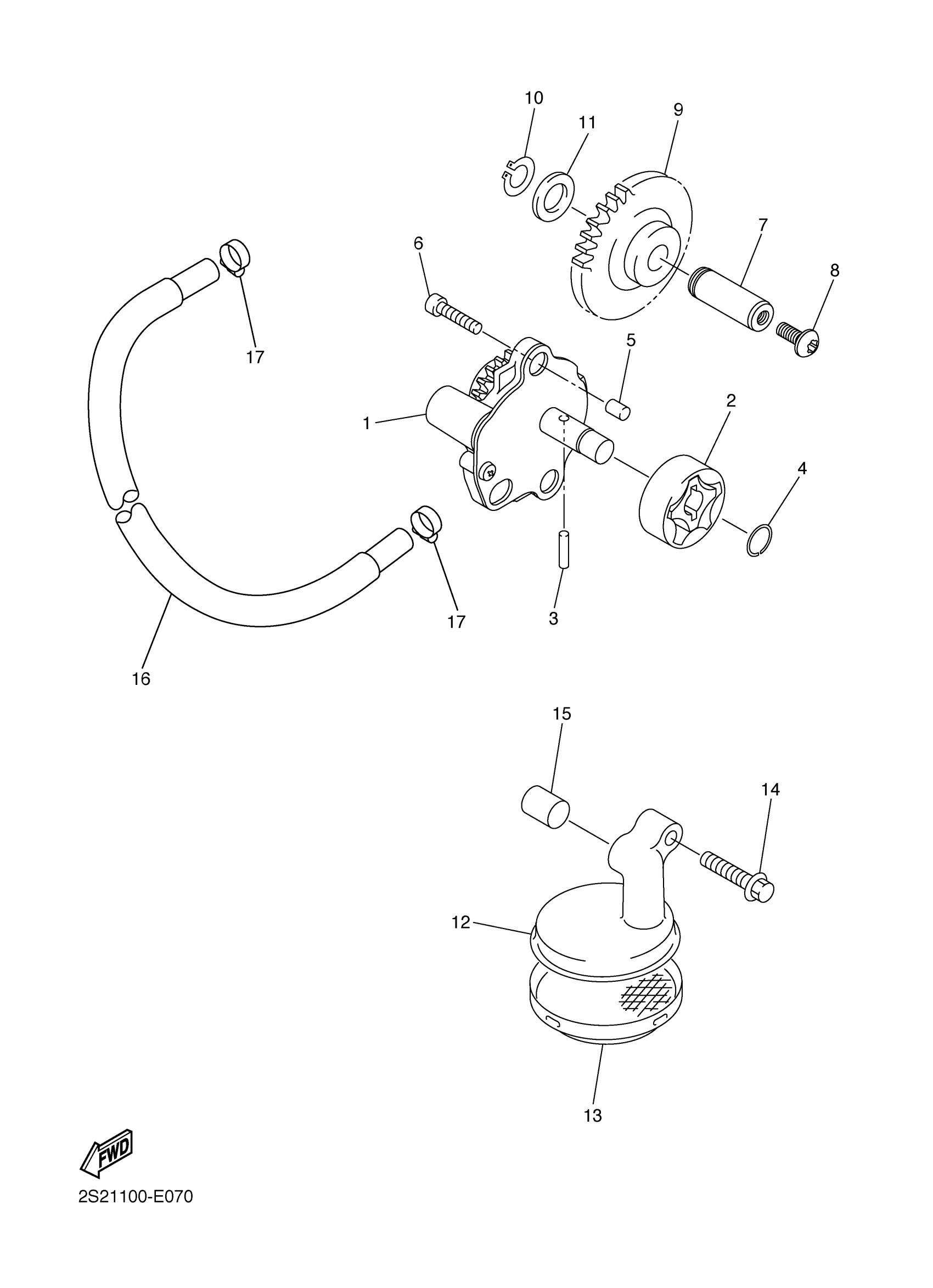

Yamaha WR450FW (WR450F) 5TJE 2007 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

2S2-13300-10-00

$139.07

2

ROTOR ASSY 2

5TA-13320-00-00

$39.26

3

PIN, DOWEL(1HX)

93603-16219-00

$4.89

4

CIRCLIP(1WG)

93440-10153-00

$1.95

5

PIN, DOWEL

99530-08012-00

$4.89

6

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

7

SHAFT, IDLE GEAR

2S2-13342-00-00

$19.47

8

SCREW

90149-06068-00

$3.13

9

GEAR, OIL PUMP IDLE

2S2-13341-00-00

$79.48

10

CIRCLIP(10Y)

99009-12400-00

$2.87

11

WASHER PLATE 164185720000

90201-12166-00

$5.86

12

HOUSING, STRAINER

2S2-13412-00-00

Unavailable

13

STRAINER, OIL

5BE-13411-00-00

$19.11

14

BOLT, FLANGE

95022-06030-00

$1.31

15

PIN, DOWEL(3VD)

99530-10114-00

$2.13

16

HOSE (L365)

90445-14009-00

Unavailable

17

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable
