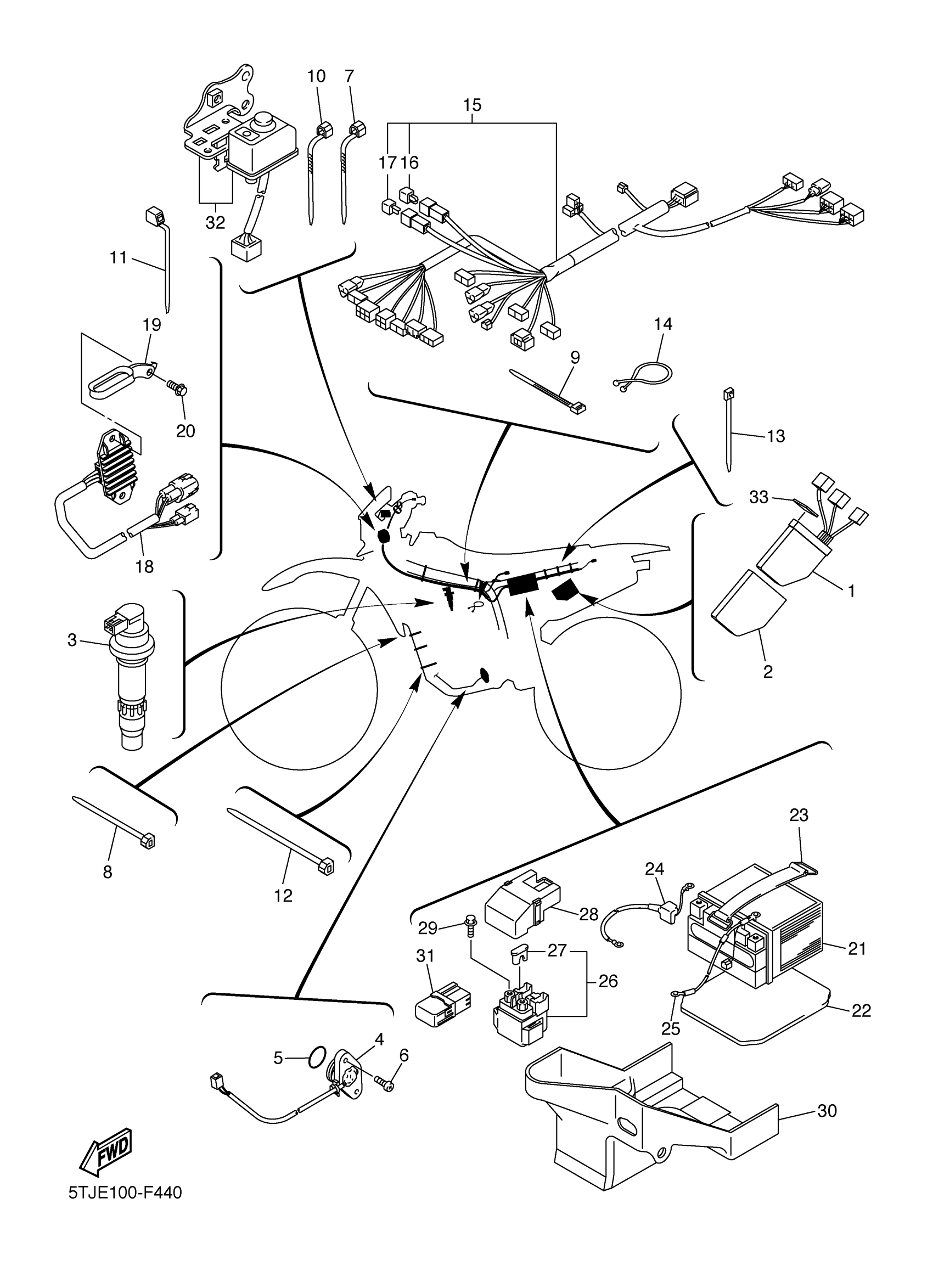

Yamaha WR450FW (WR450F) 5TJE 2007 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5TJ-85540-E0-00

Unavailable

2

BAND

5UM-85546-E0-00

Unavailable

3

IGNITION COIL ASSY

5TA-82310-10-00

$202.99

4

NEUTRAL SWITCH ASSY

5TJ-82540-02-00

$74.99

5

O-RING

93210-21001-00

$5.60

6

SCREW, BIND

98902-05014-00

$1.71

7

CLAMP

90464-13077-00

$8.49

8

CLAMP(MF1)

90464-15152-00

$5.60

9

CLAMP(MF1)

90464-15152-00

$5.60

10

CLAMP(4FM)

90464-15195-00

$4.41

11

CLAMP

90464-16061-00

$8.49

12

CLAMP(4FM)

90464-15195-00

$4.41

13

BAND

1UA-82591-00-00

$4.78

14

CLAMP

90464-25267-00

$7.49

15

WIRE HARNESS ASSY

5TJ-82590-E0-00

Unavailable

16

DIODE ASSY

5TJ-81980-00-00

Unavailable

17

DIODE ASSY

4WA-81980-00-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

5UM-81960-E0-00

Unavailable

19

GUIDE, CABLE

5UM-21288-E0-00

Unavailable

20

BOLT, FLANGE

90105-06110-00

Unavailable

21

YTZ7S HE YUASA BATTERY - FA

YTZ-7SHE0-00-00

Unavailable

22

DAMPER

5UM-82176-E0-00

Unavailable

23

BAND, BATTERY

8CY-82131-00-00

Unavailable

24

WIRE, PLUS LEAD

5TJ-82115-00-00

Unavailable

25

WIRE, MINUS LEAD

5TJ-82116-E0-00

Unavailable

26

STARTER RELAY ASSY (RC19-042)

5TJ-81940-12-00

Unavailable

27

FUSE (10A)

42X-82151-00-00

Unavailable

28

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

29

BOLT, FLANGE

95022-06008-00

Unavailable

30

HOLDER, RELAY

5UM-81952-E0-00

Unavailable

31

RELAY ASSY (5UM-E0)

5UM-81950-E0-00

Unavailable

32

MAIN SWITCH ASSY

5UM-82510-E2-00

Unavailable

33

DAMPER

5UM-8235Y-E0-00

Unavailable
