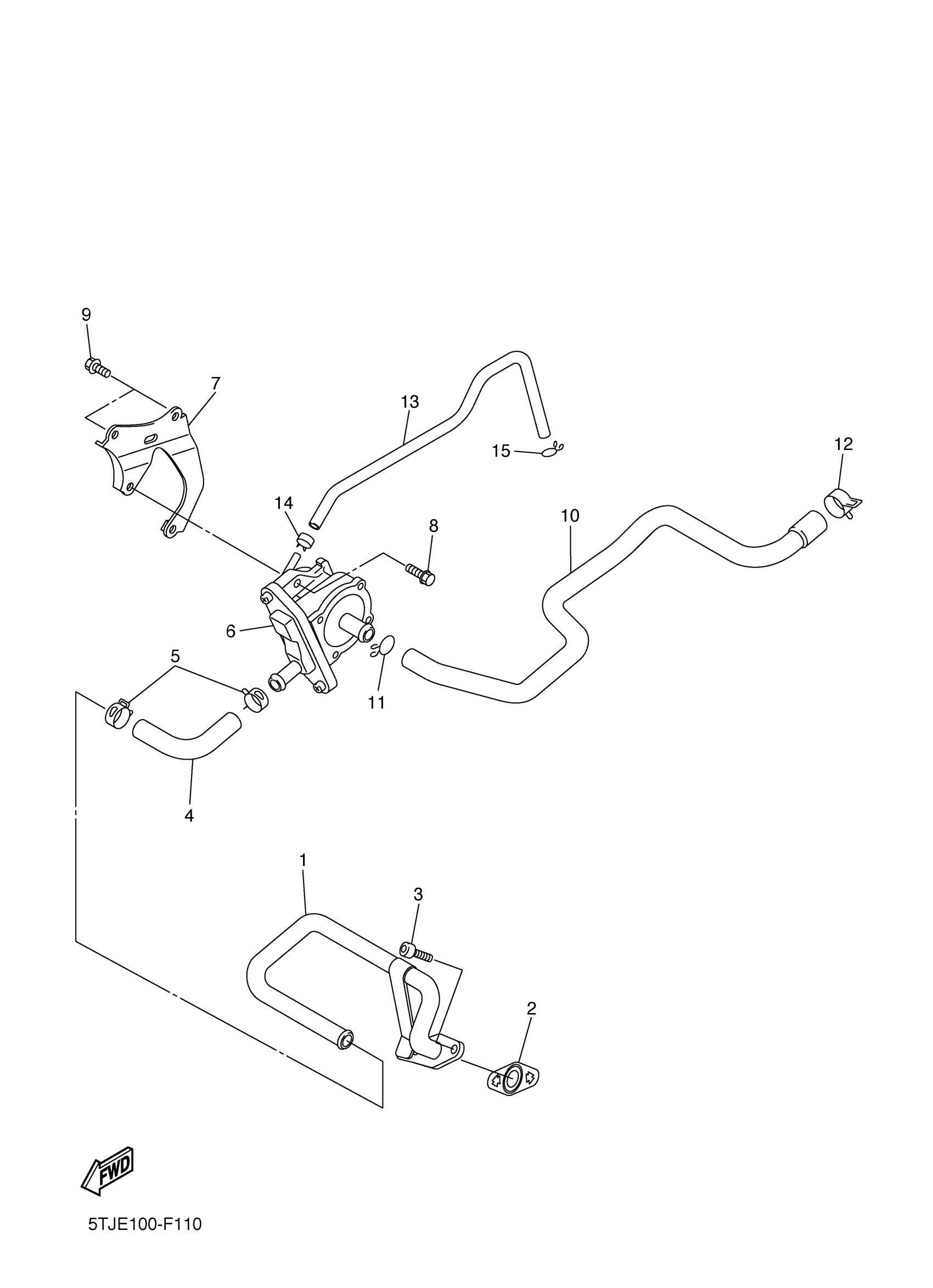

Yamaha WR450FW (WR450F) 5TJE 2007 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

PIPE 1

5TJ-14871-10-00

Unavailable

2

GASKET

5TJ-14815-00-00

$4.69

3

BOLT, SOCKET

91314-06016-00

$5.75

4

HOSE, BEND 1

5TJ-14881-10-00

Unavailable

5

CLIP

90467-16181-00

$5.24

6

AIR INDUCTION SYSTEM ASSY

5UM-14803-00-00

Unavailable

7

STAY

5TJ-14834-E0-00

Unavailable

8

BOLT, FLANGE

90105-06107-00

$5.75

9

BOLT, FLANGE

90105-06105-00

$5.90

10

HOSE, BEND 2

5TJ-14882-10-00

Unavailable

11

CLIP

90467-140A4-00

$7.77

12

CLIP(3TB)

90467-17128-00

$6.22

13

HOSE (L320)

90445-086J3-00

$6.48

14

CLIP

90467-07138-00

Unavailable

15

CLIP

90467-090A2-00

$2.47
