Description

Price

1

SPEEDOMETER ASSY (MILE)

5TJ-83500-E0-00

Unavailable

2

GROMMET

90480-14012-00

Unavailable

3

WASHER, PLATE(39X)

90201-057H5-00

$4.29

4

NUT, FLANGE(3GM)

95707-05500-00

$8.49

5

DAMPER

5TJ-83523-C0-00

$0.62

6

BRACKET, METER

5TJ-83519-C0-00

Unavailable

7

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

8

SENSOR, SPEED

5TJ-83755-C3-00

$345.99

9

SEAL,OIL

93105-47007-00

$15.99

10

PLATE 2

5TJ-8375F-C0-00

$9.99

11

SCREW, TAPPING

97702-40010-00

$4.30

12

PLATE 1

5TJ-8375E-C0-00

$7.99

13

BOLT, BUTTON HEAD

92012-05008-00

$2.82

14

CLAMP

90462-16001-00

Unavailable

15

BOLT, FLANGE

95022-06010-00

$5.60

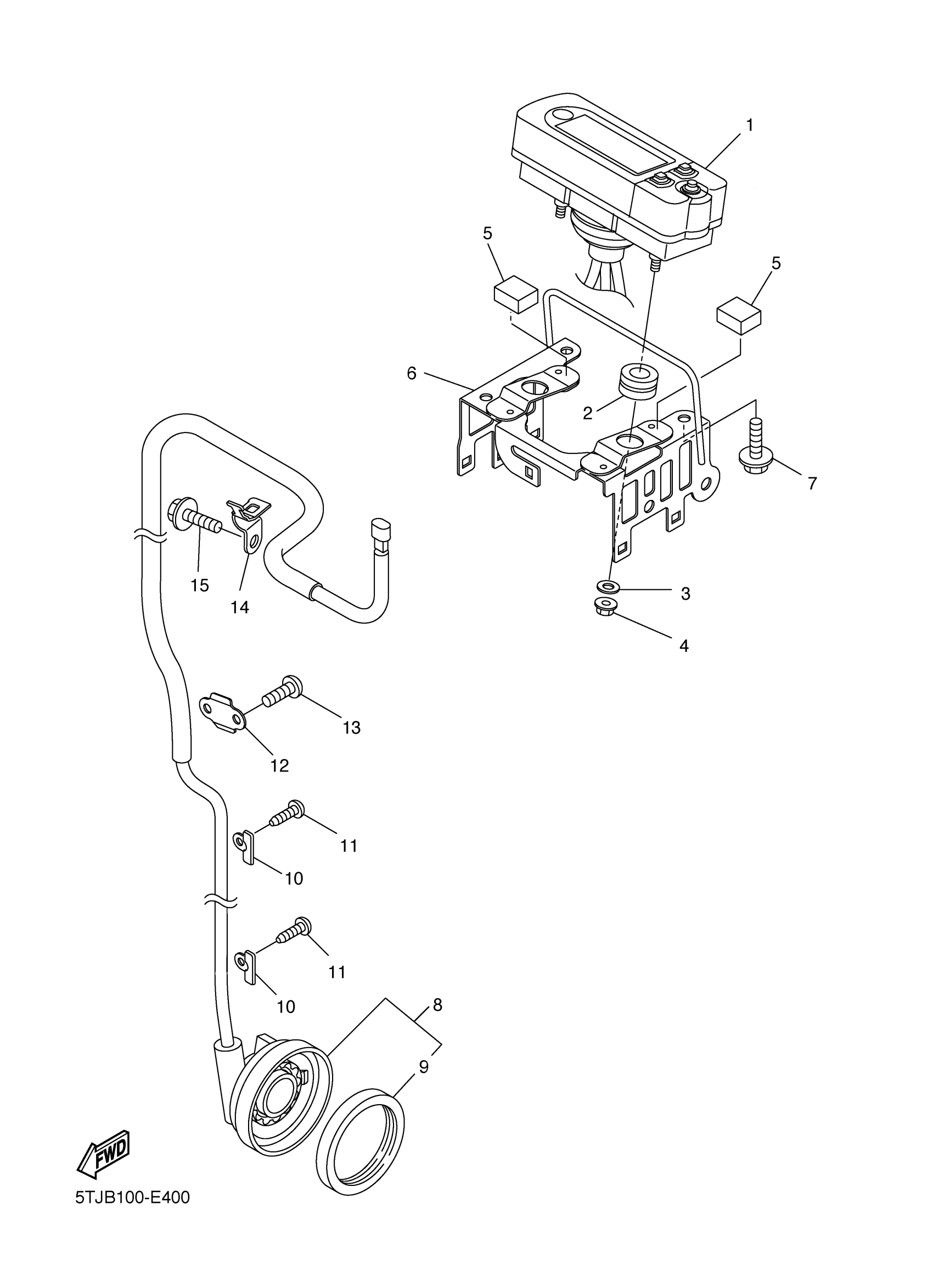

Yamaha WR450FV (WR450F) 5TJB 2006 METER Diagram

SPEEDOMETER ASSY (MILE)

GROMMET

WASHER, PLATE(39X)

NUT, FLANGE(3GM)

DAMPER

BRACKET, METER

BOLT, FLANGE(4MY)

SENSOR, SPEED

SEAL,OIL

PLATE 2

SCREW, TAPPING

PLATE 1

BOLT, BUTTON HEAD

CLAMP

BOLT, FLANGE
