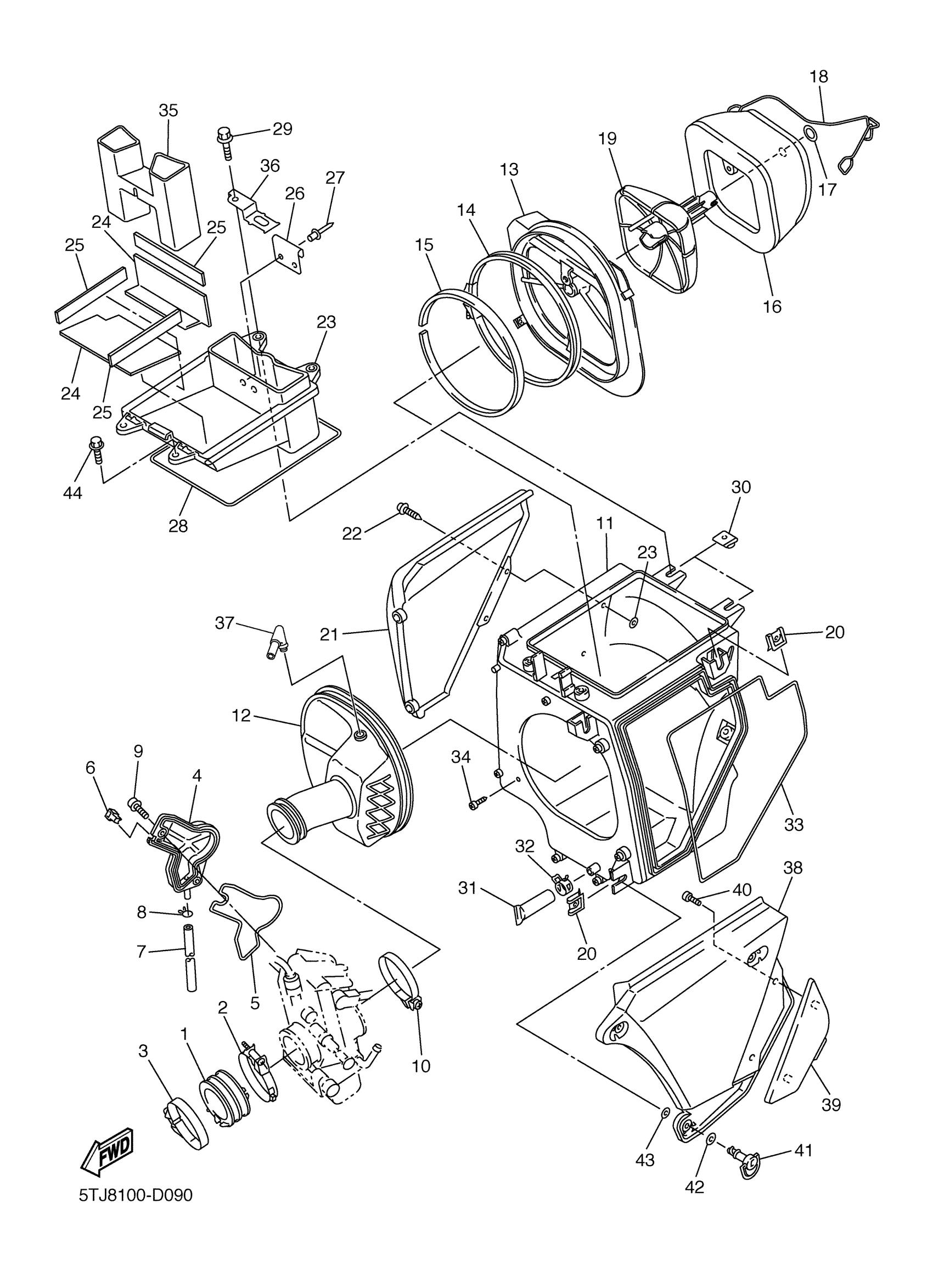

Yamaha WR450FV (WR450F) 5TJB 2006 INTAKE Diagram
#
11
AIR CLEANER CASE ASSY
5TJ-14401-20-00
Unavailable
12
JOINT, AIR CLEANER 1
5TJ-14453-00-00
Unavailable
16
ELEMENT, AIR CLEANER
5TJ-14451-01-00
Unavailable
17
WASHER
5TJ-14475-00-00
Unavailable
18
BINDER 1
5UM-1441G-E0-00
Unavailable
19
GUIDE
5TJ-14458-00-00
Unavailable
20
PLATE, SPRING
4XV-2177L-01-00
Unavailable
21
COVER, CLEANER CASE 2
5TJ-1441E-10-00
Unavailable
22
SCREW, TRUSS TAP.
97707-40016-00
Unavailable
23
DUCT
5TJ-14437-10-00
Unavailable
24
DAMPER 1
5TJ-14425-10-00
Unavailable
25
DAMPER 2
5TJ-14426-00-00
Unavailable
26
HOOK
5TJ-14436-00-00
Unavailable
27
RIVET, BLIND (2YK)
90267-32146-00
Unavailable
28
SEAL
51Y-14462-00-00
Unavailable
29
. BOLT, FLANGE
95027-06020-00
Unavailable
30
NUT, SPRING (26H)
90183-06023-00
Unavailable
31
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
32
CLIP(3TB)
90467-17128-00
Unavailable
33
SEAL
5TJ-14462-00-00
Unavailable
34
SCREW, PAN TAP.2
97707-50516-00
Unavailable
35
DUCT
5TJ-1443A-00-00
Unavailable
36
STAY, RELAY
5TJ-81953-00-00
Unavailable
37
PIPE
5TJ-14419-00-00
Unavailable
38
COVER, CLEANER CASE 1
5TJ-1441A-00-00
Unavailable
39
COVER, CLEANER CASE 3
5TJ-1442A-00-00
Unavailable
40
SCREW, PAN TAP.2
97707-30512-00
Unavailable
41
HEAD
3FV-28386-00-00
Unavailable
42
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
43
WASHER, SPECIAL 1
5TJ-21757-00-00
Unavailable
44
BOLT, FLANGE
95817-06016-00
Unavailable
