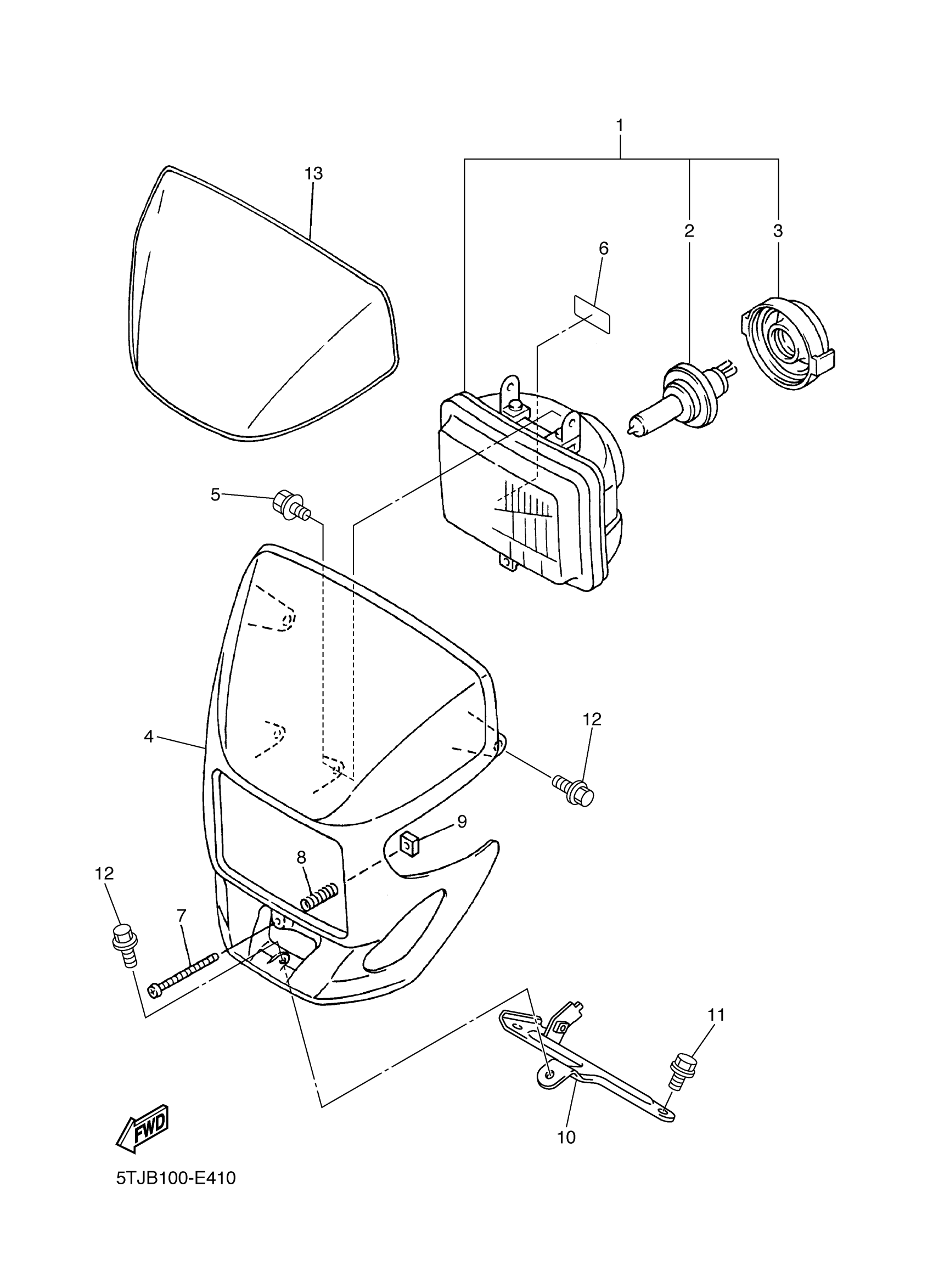

Yamaha WR450FV (WR450F) 5TJB 2006 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

5BF-84310-01-00

$184.99

2

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

3

COVER, SOCKET

5PX-84397-00-00

$39.99

4

BODY ASSY

5BF-84330-01-00

$80.99

5

BOLT, SPECIAL

55U-84337-00-00

Unavailable

6

SEAL

1JK-21268-00-00

$6.99

7

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

8

SPRING

5BF-84335-00-00

$6.99

9

NUT, ADJUSTING

5BF-84334-00-00

$7.99

10

STAY, HEADLIGHT 2

5TJ-84319-C0-00

Unavailable

11

BOLT, SMALL FLANGE

95027-08012-00

$9.49

12

BOLT, FLANGE

90105-06064-00

Unavailable

13

GRAPHIC 1

5BF-2339E-00-00

$59.99
