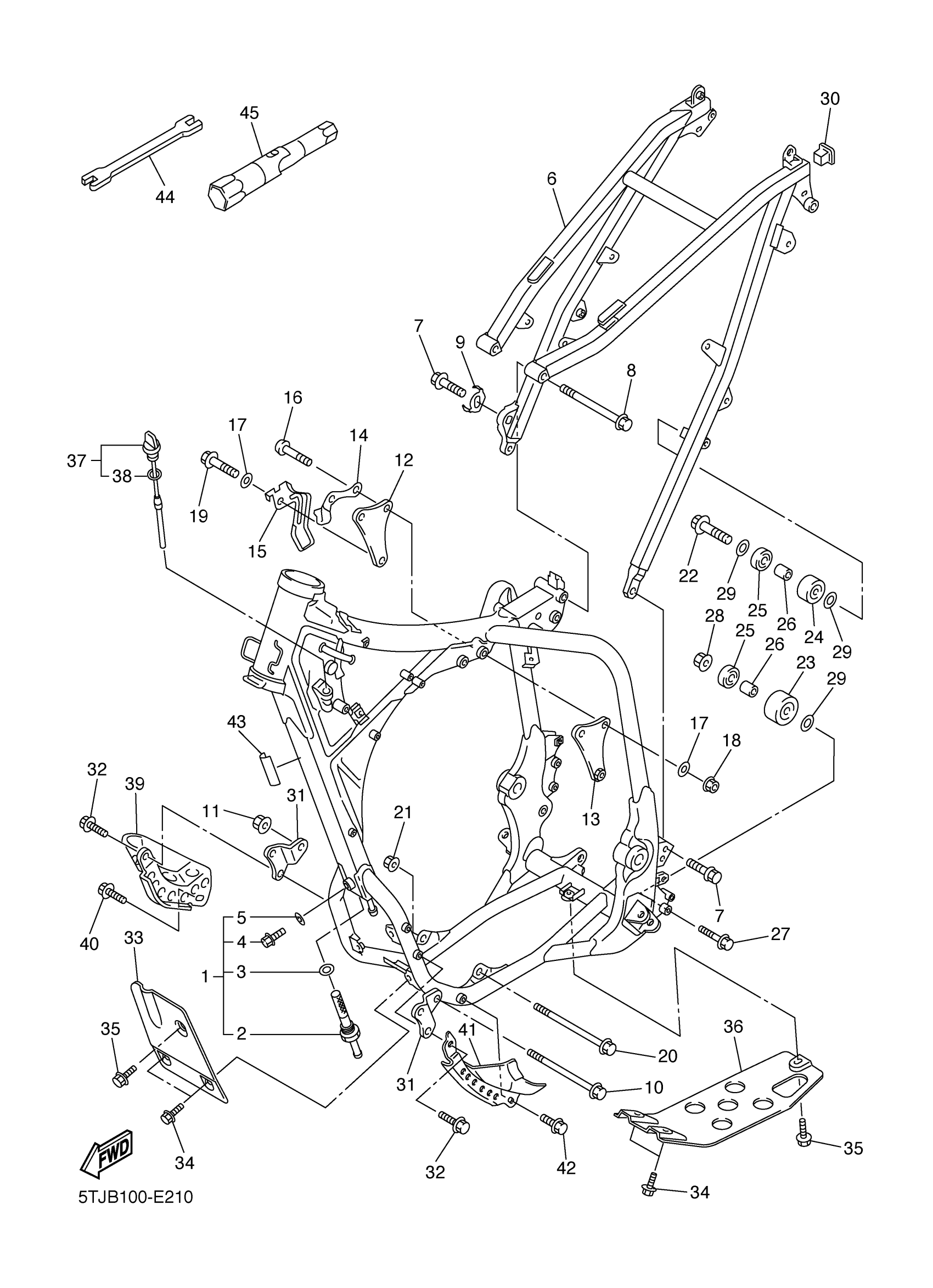

Yamaha WR450FV (WR450F) 5TJB 2006 FRAME Diagram
#
1
FRONT FRAME COMP.
5TJ-21101-80-00
Unavailable
2
NET, FILTER
5TA-21756-00-00
Unavailable
6
REAR FRAME COMP.
5TJ-21190-80-00
Unavailable
9
PLATE, PATCH
5XD-21455-60-00
Unavailable
12
BRACKET, REAR UPPER 1
5XD-21425-00-00
Unavailable
13
BRACKET, REAR UPPER 1
5XD-21425-10-00
Unavailable
14
HOLDER, CABLE
5TA-21161-00-00
Unavailable
15
CLAMP, WIRE HARNESS 1
5TJ-21335-00-00
Unavailable
16
BOLT,BUTTON
92017-10060-00
Unavailable
17
WASHER PLATE (3L6)
90201-08759-00
Unavailable
19
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
20
BOLT, WASHER BASED(3RB)
90105-10733-00
Unavailable
22
BOLT, FLANGE(4MY)
95027-08040-00
Unavailable
23
TENSIONER
3JD-22178-20-00
Unavailable
24
TENSIONER
4EW-22178-01-00
Unavailable
25
BEARING (3X3)
93300-60804-00
Unavailable
26
COLLAR(1NL)
90387-086N4-00
Unavailable
27
BOLT, FLANGE
95024-08065-00
Unavailable
28
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
29
WASHER, PLATE
90201-08043-00
Unavailable
30
PLUG(8Y1)
90338-18176-00
Unavailable
31
BRACKET, FRONT LOWER 1
5XD-21417-50-00
Unavailable
32
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
33
PROTECTOR, ENGINE
5TA-21471-00-00
Unavailable
34
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
35
BOLT, WITH WASHER
90119-06001-00
Unavailable
36
GUARD, ENGINE 2
5TA-2147E-00-00
Unavailable
37
PLUG, OIL LEVEL
5TA-15362-01-00
Unavailable
38
. O-RING
93210-08001-00
Unavailable
39
GUARD, ENGINE 1
5TA-2147A-00-00
Unavailable
40
BOLT, FLANGE
95824-08012-00
Unavailable
41
GUARD, ENGINE 3
5TJ-2147F-00-00
Unavailable
42
BOLT, FLANGE
95824-08012-00
Unavailable
43
PLATE, EPA
5TJ-2179C-00-00
Unavailable
44
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
45
BOX, SPARK PLUG
5TA-2814F-00-00
Unavailable
