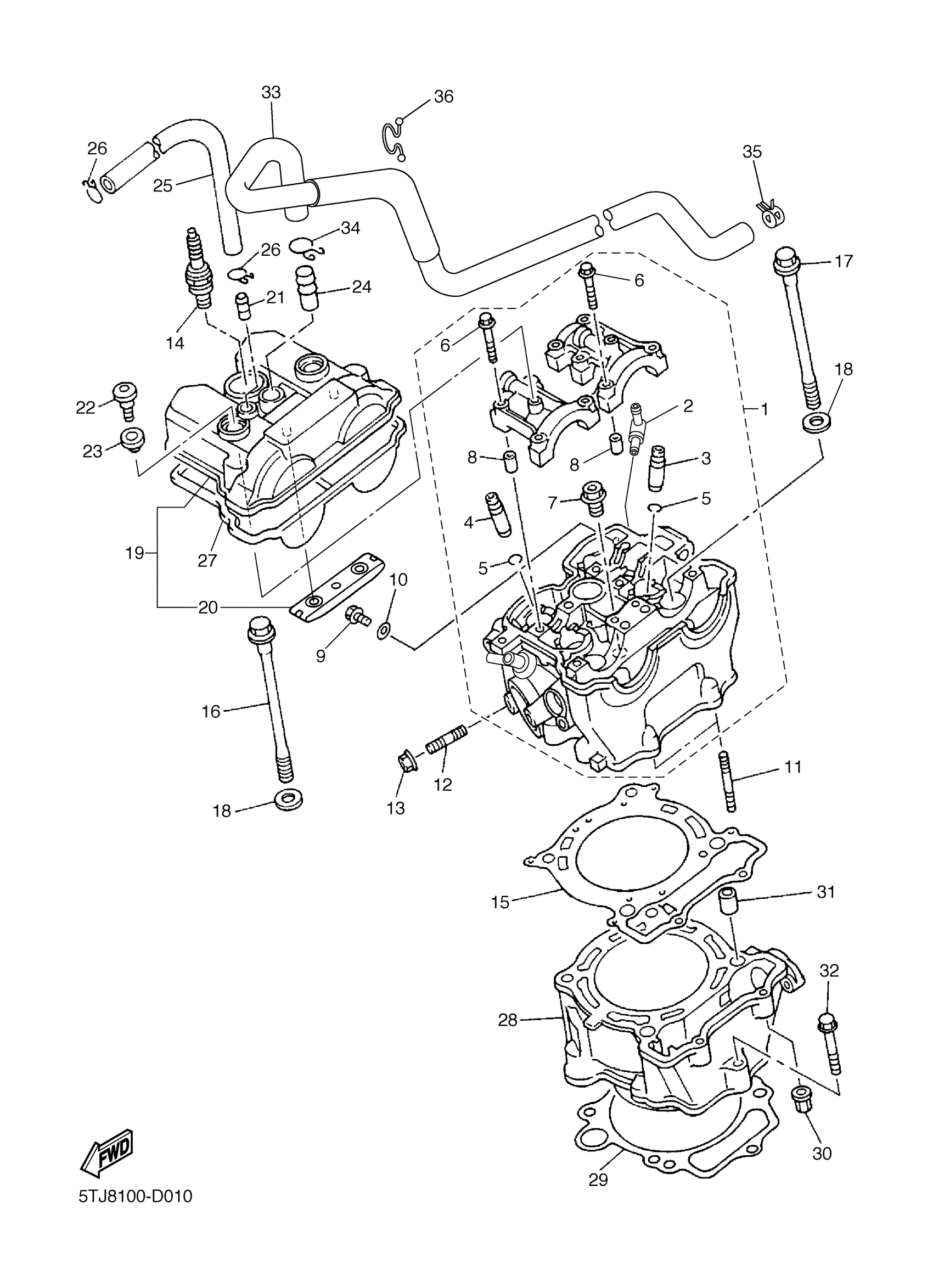

Yamaha WR450FV (WR450F) 5TJB 2006 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5TJ-11101-00-00

Unavailable

2

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

3

GUIDE, INTAKE VALVE

5TA-11133-10-00

$53.99

4

GUIDE, EXHAUST VALVE

5TA-11134-10-00

$43.99

5

CIRCLIP(1WG)

93440-10153-00

$2.39

6

BOLT, WASHER BASED

90105-06027-00

$7.49

7

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

8

PIN, DOWEL(3XW)

91808-16023-00

$8.49

9

BOLT, FLANGE

95022-06010-00

$5.60

10

GASKET 256113960000

90430-06014-00

Unavailable

11

BOLT, STUD (4KG1)

95617-06635-00

$8.49

12

BOLT, STUD

95612-08620-00

$7.49

13

NUT,FLANGE(J10)

95702-08500-00

$1.43

14

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

15

GASKET, CYLINDER HEAD 1

5TA-11181-00-00

$74.99

16

BOLT, WASHER BASED

90105-104A7-00

Unavailable

17

BOLT, WASHER BASED

90105-106A3-00

Unavailable

18

WASHER, PLATE

90201-10025-00

Unavailable

19

COVER, CYLINDER HEAD 1

5TG-11190-10-00

Unavailable

20

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

21

PIPE, BREATHER 2

5BE-11167-00-00

Unavailable

22

BOLT(4BP)

90109-066F0-00

Unavailable

23

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

24

PIPE, BREATHER 2

371-11167-01-00

Unavailable

25

HOSE (L700)

90445-117F2-00

Unavailable

26

CLIP(1JH)

90467-11106-00

Unavailable

27

GASKET, HEAD COVER 1

5TA-11193-00-00

Unavailable

28

CYLINDER 1

5TA-11311-12-00

Unavailable

29

GASKET, CYLINDER

5TA-11351-00-00

Unavailable

30

NUT

90179-06033-00

Unavailable

31

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

32

BOLT, FLANGE

95022-06035-00

Unavailable

33

PIPE, BREATHER 1

5TJ-11166-00-00

Unavailable

34

CLIP (371)

90467-14015-00

Unavailable

35

CLIP

90468-08104-00

Unavailable

36

CLAMP

90464-25267-00

Unavailable
