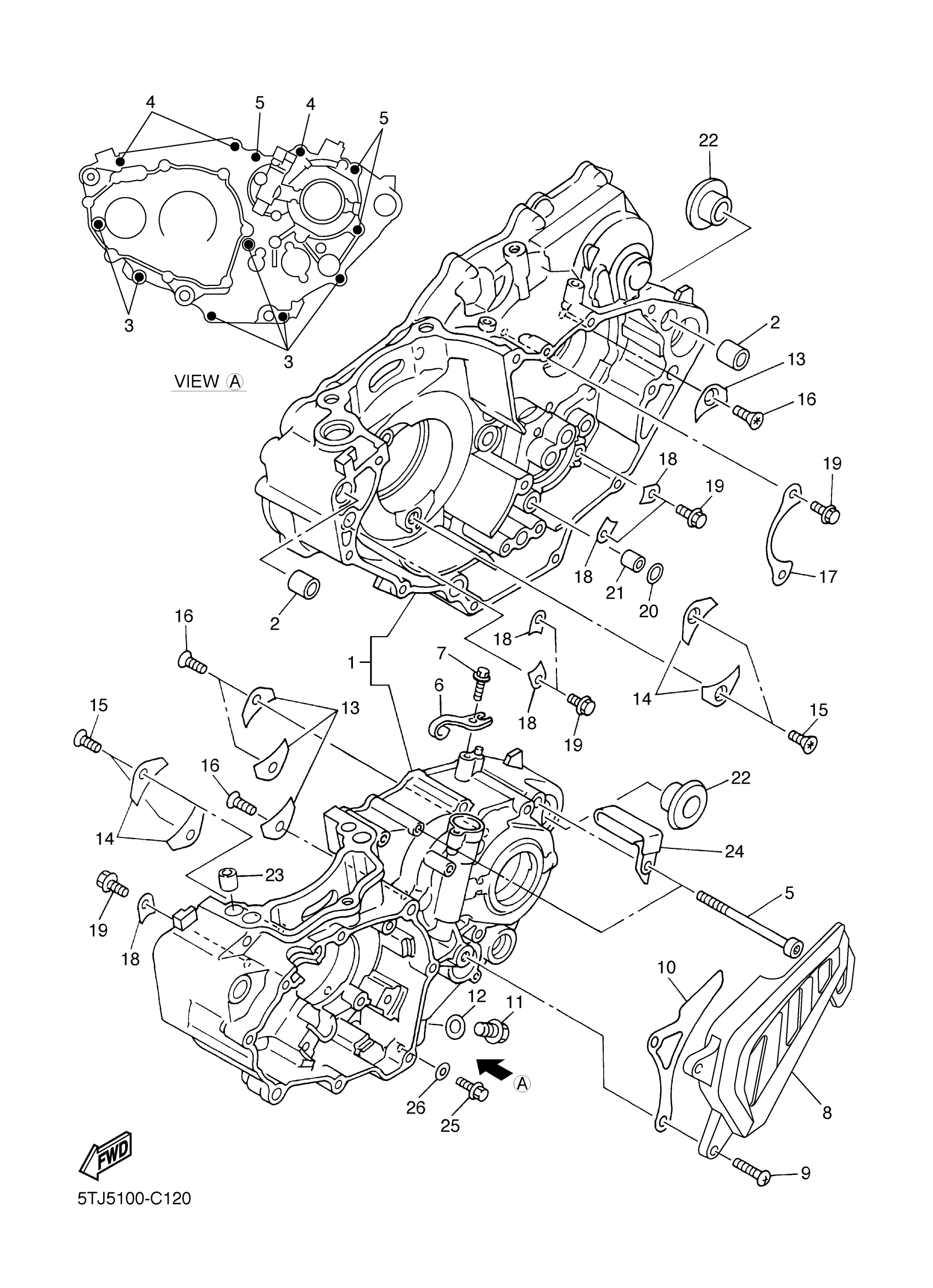

Yamaha WR450FV (WR450F) 5TJB 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5TJ-15100-10-YX

Unavailable

2

PIN, DOWEL

99530-14016-00

$3.80

3

BOLT,SOCKET

91317-06050-00

$3.88

4

BOLT,SOCKET

91317-06060-00

$3.76

5

BOLT, SOCKET

91317-06075-00

$5.60

6

HOLDER, CLUTCH CABLE

5TA-15441-01-00

$21.99

7

BOLT, FLANGE

95022-06016-00

$3.62

8

COVER, CRANKCASE 2

5TA-15421-10-00

$33.99

9

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

10

GUIDE, CHAIN

5TA-17466-00-00

$24.99

11

BOLT, FLANGE

95022-10016-00

$8.49

12

GASKET

90430-10188-00

$6.99

13

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

14

PLATE, BEARING COVER

5BE-15383-01-00

$10.99

15

SCREW, FLATHEAD (2H7)

90149-06126-00

$9.49

16

SCREW, COUNTERSUNK

90151-06052-00

Unavailable

17

PLATE, COVER

4L0-17471-00-00

Unavailable

18

PLATE, STOPPER 2

5DH-18562-00-00

Unavailable

19

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

20

O-RING (371)

93210-10197-00

Unavailable

21

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

22

COLLAR

90387-18007-00

Unavailable

23

PIN, DOWEL(2VG)

99530-10116-00

Unavailable

24

CLAMP(4NX)

90461-10136-00

Unavailable

25

BOLT, FLANGE

95022-06010-00

Unavailable

26

GASKET 256113960000

90430-06014-00

Unavailable
