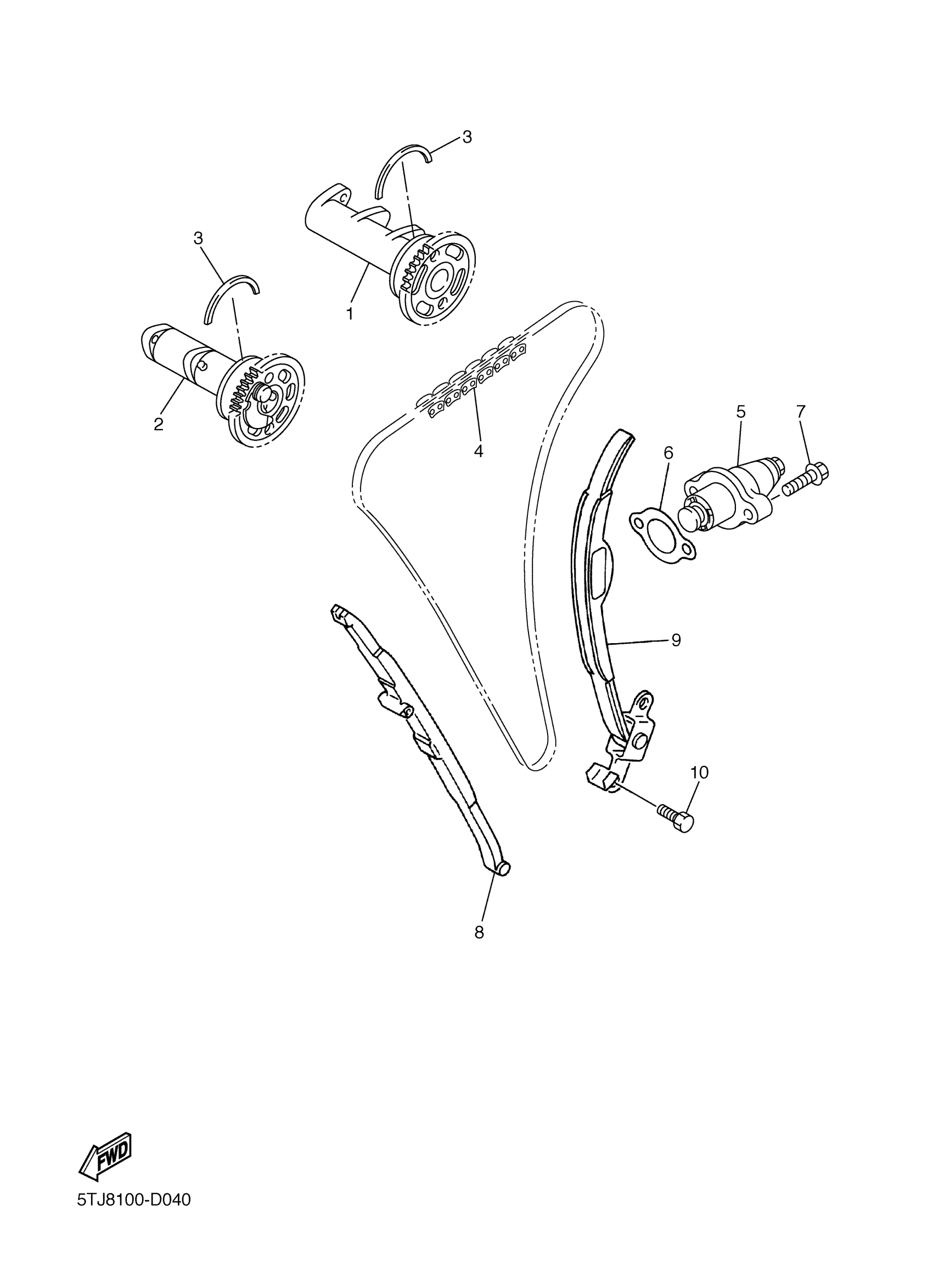

Yamaha WR450FV (WR450F) 5TJB 2006 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5TA-12170-10-00

$247.66

2

CAMSHAFT ASSY 2

5TJ-12180-20-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.18

4

CHAIN

94591-57118-00

$29.63

5

TENSIONER ASSY, CAM CHAIN

5TA-12210-10-00

$111.71

6

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

7

BOLT, FLANGE

95022-06025-00

$1.37

8

DAMPER, CHAIN 1

5TA-12251-02-00

Unavailable

9

DAMPER, CHAIN 2

5TA-12252-01-00

Unavailable

10

BOLT, STOPPER

5TG-12299-00-00

Unavailable
