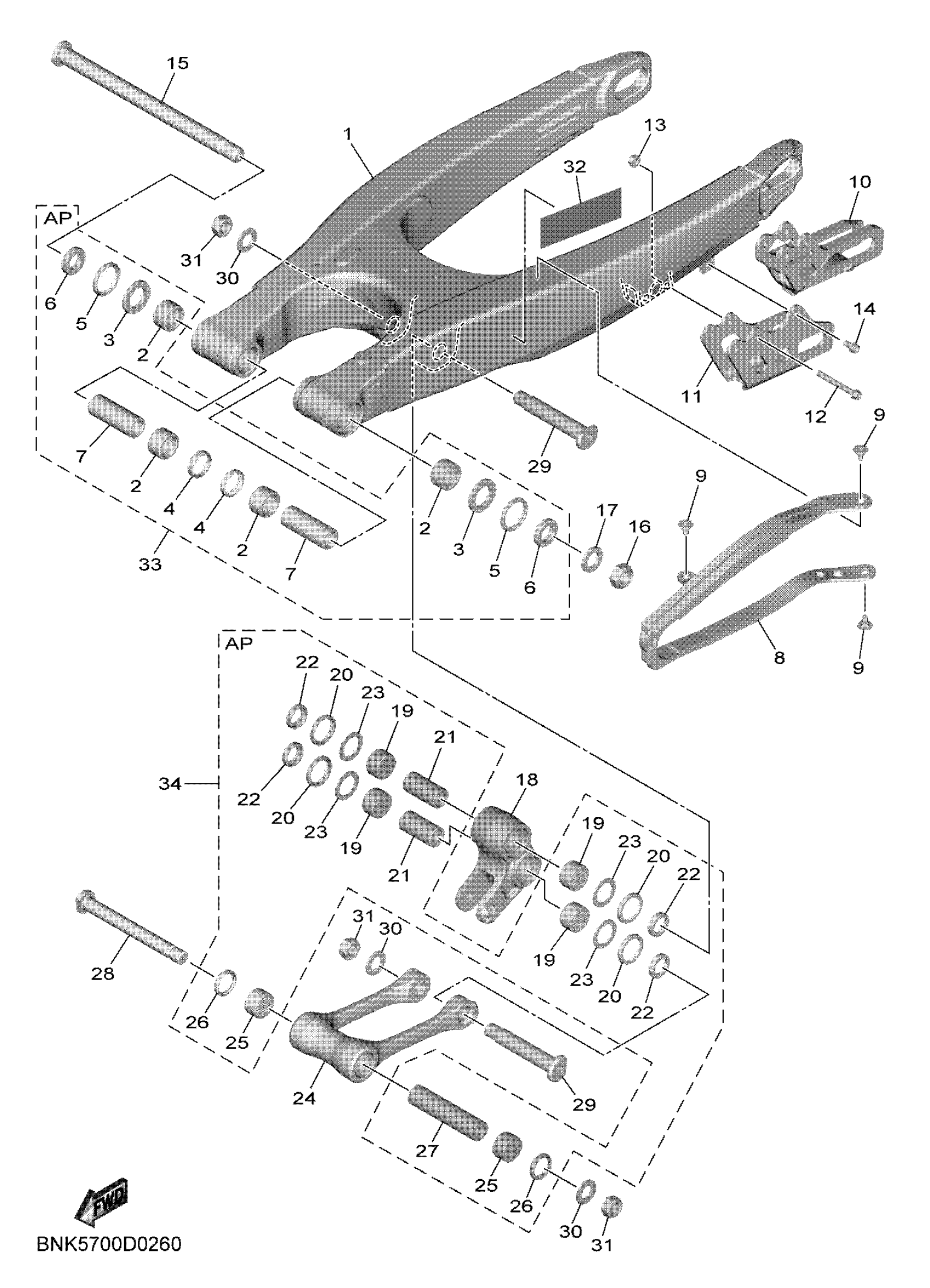

Yamaha WR450FT1 (WR450F) DP03 2026 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

DP0-22110-00-00

Unavailable

2

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

3

BEARING

93342-22217-00

$41.99

4

OIL SEAL

93106-22002-00

$12.49

5

OIL SEAL (36F)

93109-28043-00

$11.49

6

COLLAR

90387-17019-00

$12.49

7

COLLAR

90387-1714S-00

$43.99

8

SEAL, GUARD

34P-22151-01-00

$59.99

9

SCREW, 1

1C3-22969-90-00

$6.99

10

SUPPORT, CHAIN

2S2-22199-70-00

$69.99

11

COVER, THRUST 1

2S2-22128-70-00

$32.99

12

BOLT, FLANGE DEEPRECESS

95E32-06050-00

$0.43

13

NUT, FLANGE

95702-06500-00

$2.39

14

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.91

15

SHAFT, PIVOT

33D-22141-00-00

$65.99

16

NUT, SELF-LOCKING

90185-16002-00

Unavailable

17

WASHER, PLATE

90201-16018-00

Unavailable

18

ARM, RELAY

17D-2217A-00-00

Unavailable

19

BEARING

93315-32166-00

Unavailable

20

OIL SEAL

93109-25001-00

Unavailable

21

COLLAR

90387-16026-00

Unavailable

22

WASHER

90209-16011-00

Unavailable

23

WASHER, PLATE

90201-21014-00

Unavailable

24

ROD, CONNECTING 1

BR9-2217F-00-00

Unavailable

25

BEARING

93315-32166-00

Unavailable

26

OIL SEAL

93109-21001-00

Unavailable

27

COLLAR

90387-14016-00

Unavailable

28

SHAFT 1

5XC-22121-91-00

Unavailable

29

SHAFT 2

34P-22122-00-00

Unavailable

30

WASHER, PLATE

90201-14020-00

Unavailable

31

NUT, SELF-LOCKING

90185-14010-00

Unavailable

32

LABEL, TIRE

3RV-21668-A1-00

Unavailable

33

SWING ARM PIVOT BEARING KIT

BR9-W002C-00-00

Unavailable

34

SHOCK LINKAGE BEARING KIT

33D-W002E-00-00

Unavailable
