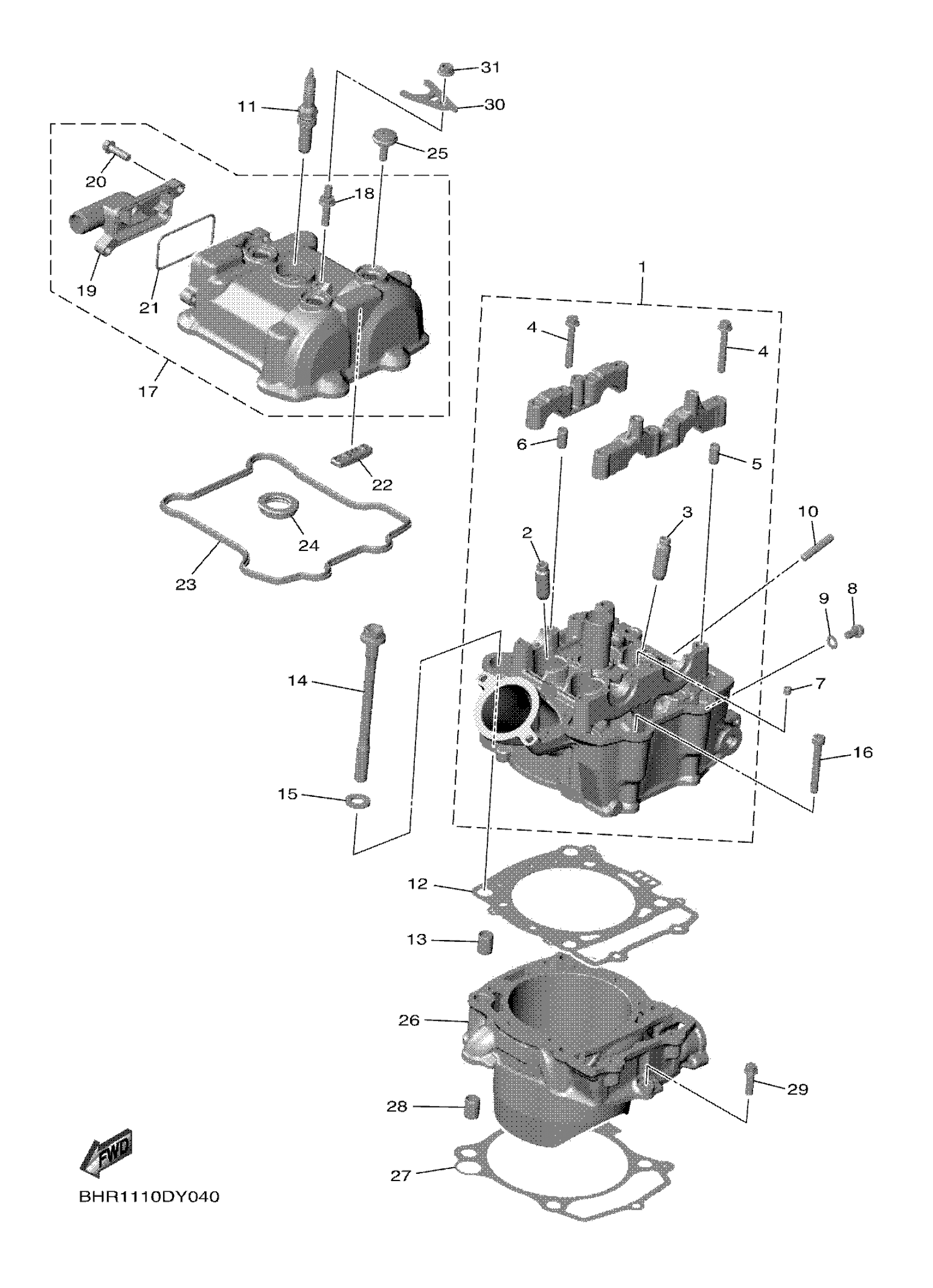

Yamaha WR450FT1 (WR450F) DP03 2026 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

BHR-11102-00-00

$1,336.99

2

GUIDE, VALVE 1

B2W-11133-10-00

$69.99

3

GUIDE, VALVE 2

5PS-11134-10-00

$71.99

4

BOLT, WASHER BASED

90105-06027-00

$7.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

NOZZLE 1

BHR-15138-00-00

$5.60

8

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.91

9

GASKET 256113960000

90430-06014-00

Unavailable

10

BOLT, STUD

90116-06037-00

$3.93

11

PLUG, SPARK (NGK LMAR8G)

LMA-R8G00-00-00

Unavailable

12

GASKET, CYLINDER HEAD 1

BHR-11181-00-00

$30.99

13

PIN, DOWEL(4XL)

93612-16254-00

$5.60

14

BOLT, FLANGE

90105-10494-00

$20.99

15

WASHER, PLATE

90201-10025-00

$7.49

16

BOLT

91312-06045-00

Unavailable

17

COVER, CYLINDER HEAD 1

BHR-11190-00-00

Unavailable

18

BOLT, STUD

90116-06049-00

Unavailable

19

COVER, BREATHER

BDB-11168-00-00

Unavailable

20

BOLT, FLANGE DEEP RECESS

95E32-06020-00

Unavailable

21

GASKET, BREATHER COVER

B2W-11169-00-00

Unavailable

22

GUIDE, STOPPER 2

B2W-12241-00-00

Unavailable

23

GASKET, HEAD COVER 1

BHR-11193-00-00

Unavailable

24

GASKET, HEAD COVER 2

1SM-11194-00-00

Unavailable

25

BOLT, COVER HEAD

5UM-1119E-00-00

Unavailable

26

CYLINDER 1

BHR-11311-00-00

Unavailable

27

GASKET, CYLINDER

BHR-11351-00-00

Unavailable

28

PIN, DOWEL(4XL)

93612-16254-00

$5.60

29

BOLT, HEXAGON SOCK

90110-06439-00

Unavailable

30

HOLDER

BR9-11395-00-00

Unavailable

31

NUT, FLANGE

95702-06500-00

Unavailable
