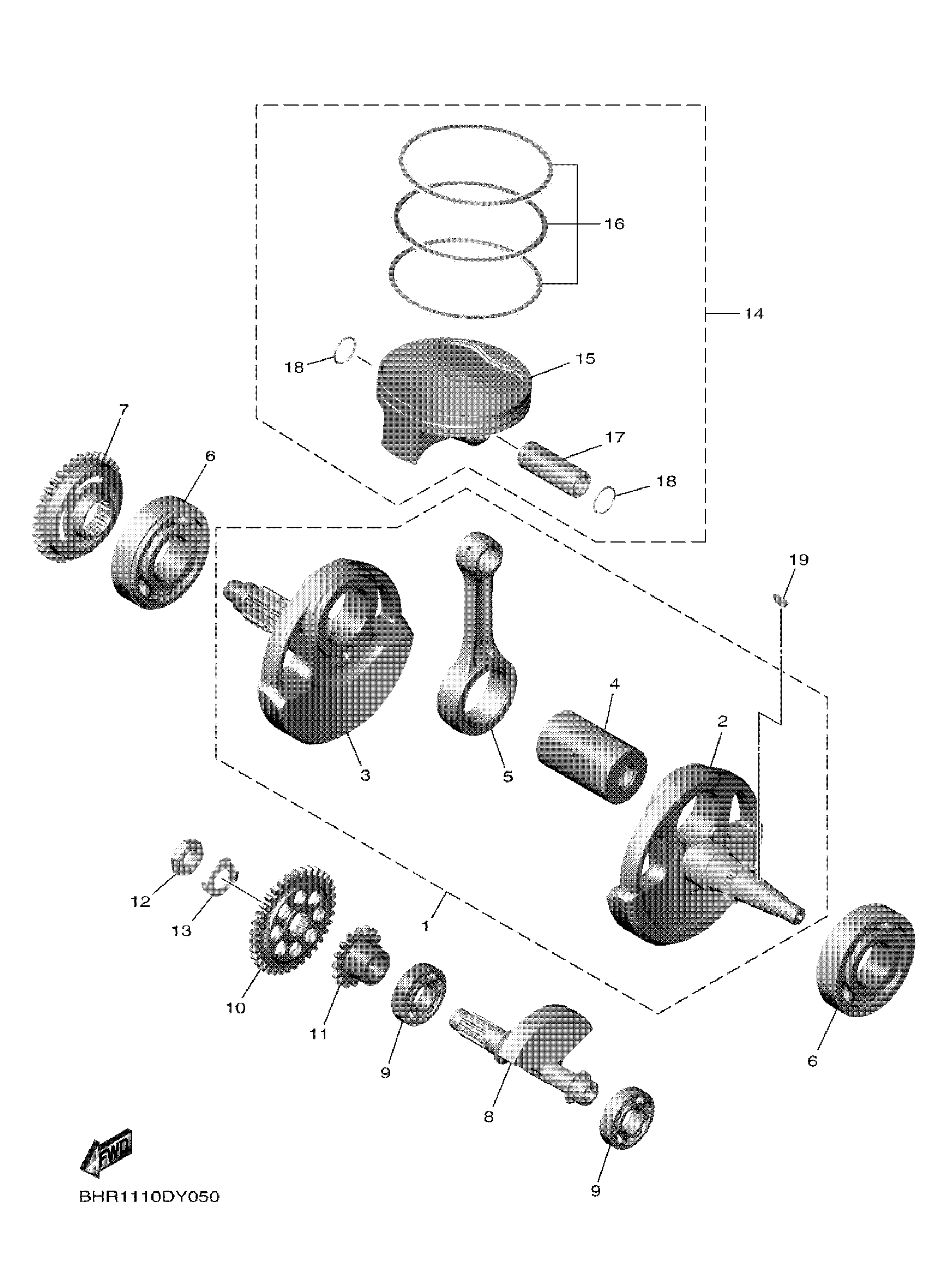

Yamaha WR450FT1 (WR450F) DP03 2026 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

BHR-11400-00-00

$628.99

2

CRANK 1

BHR-11412-00-00

$375.99

3

CRANK 2

BHR-11422-00-00

$409.99

4

PIN, CRANK 1

BHR-11681-00-00

$71.99

5

CONNECTING ROD ASSY

BHR-11650-00-00

$123.99

6

BEARING

93306-30647-00

$70.99

7

GEAR, DRIVE

BHR-11536-01-00

Unavailable

8

WEIGHT 1

BHR-11454-00-00

$335.99

9

BEARING

93306-20351-00

$38.99

10

GEAR, BALANCE WEIGHT

BHR-11531-00-00

$152.99

11

GEAR,OIL PUMP DRIVE SHAFT

BHR-13301-00-00

$72.99

12

NUT, HEXAGON

90170-14171-00

$9.49

13

WASHER, LOCK

90215-14004-00

Unavailable

14

PISTON ASSY

BHR-116A0-00-00

$221.99

15

PISTON (STD)

BHR-11631-00-00

$112.99

16

PISTON RING SET (STD)

B2W-11603-00-00

Unavailable

17

PIN, PISTON

BR9-11633-10-00

Unavailable

18

CIRCLIP (2F1)

93450-19052-00

Unavailable

19

KEY, WOODRUFF

90280-03006-00

Unavailable
