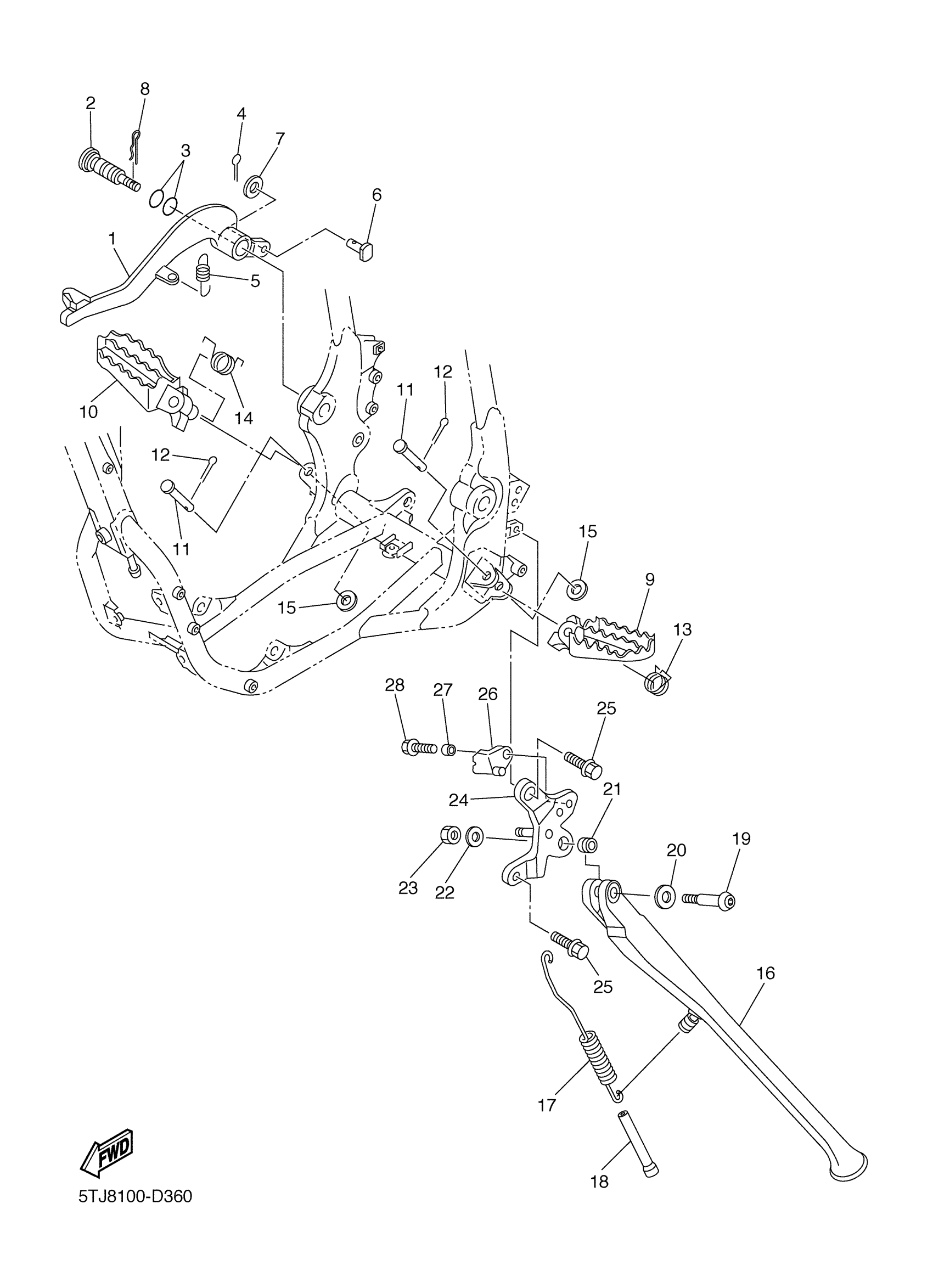

Yamaha WR450FT (WR450F) 5TJ8 2005 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5TA-27200-01-00

Unavailable

2

BOLT

1C3-27217-10-00

$27.99

3

O-RING (P95)

93210-11073-00

$7.49

4

PIN, COTTER (648)

91490-20015-00

$2.20

5

SPRING, TENSION(4SR)

90506-16500-00

$8.49

6

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

CLIP(4BP)

90468-16192-00

$9.49

9

FOOTREST 1

5ET-27411-00-00

Unavailable

10

FOOTREST 2

5ET-27421-00-00

$108.99

11

PIN, CLEVIS

90240-10004-00

$13.99

12

PIN, COTTER

91490-25020-00

$3.19

13

SPRING, TORSION

90508-282B8-00

$14.99

14

SPRING, TORSION

90508-282B9-00

$14.99

15

WASHER, PLAIN(735)

90201-10119-00

Unavailable

16

STAND, SIDE

5TJ-27311-80-00

Unavailable

17

SPRING, TENSION

90506-30002-00

Unavailable

18

DAMPER, FOOTREST

5TJ-27414-80-00

Unavailable

19

BOLT

90109-08051-00

Unavailable

20

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

21

COLLAR(3XP)

90387-1003G-00

Unavailable

22

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

23

NUT

90185-08055-00

Unavailable

24

BRACKET, SIDE STAND

5TJ-21458-50-00

Unavailable

25

BOLT, FLANGE

95027-10020-00

Unavailable

26

STOPPER

5TJ-27314-50-00

Unavailable

27

COLLAR(6R8)

90387-06M24-00

Unavailable

28

BOLT, FLANGE

95817-06016-00

Unavailable
