CARBURETOR

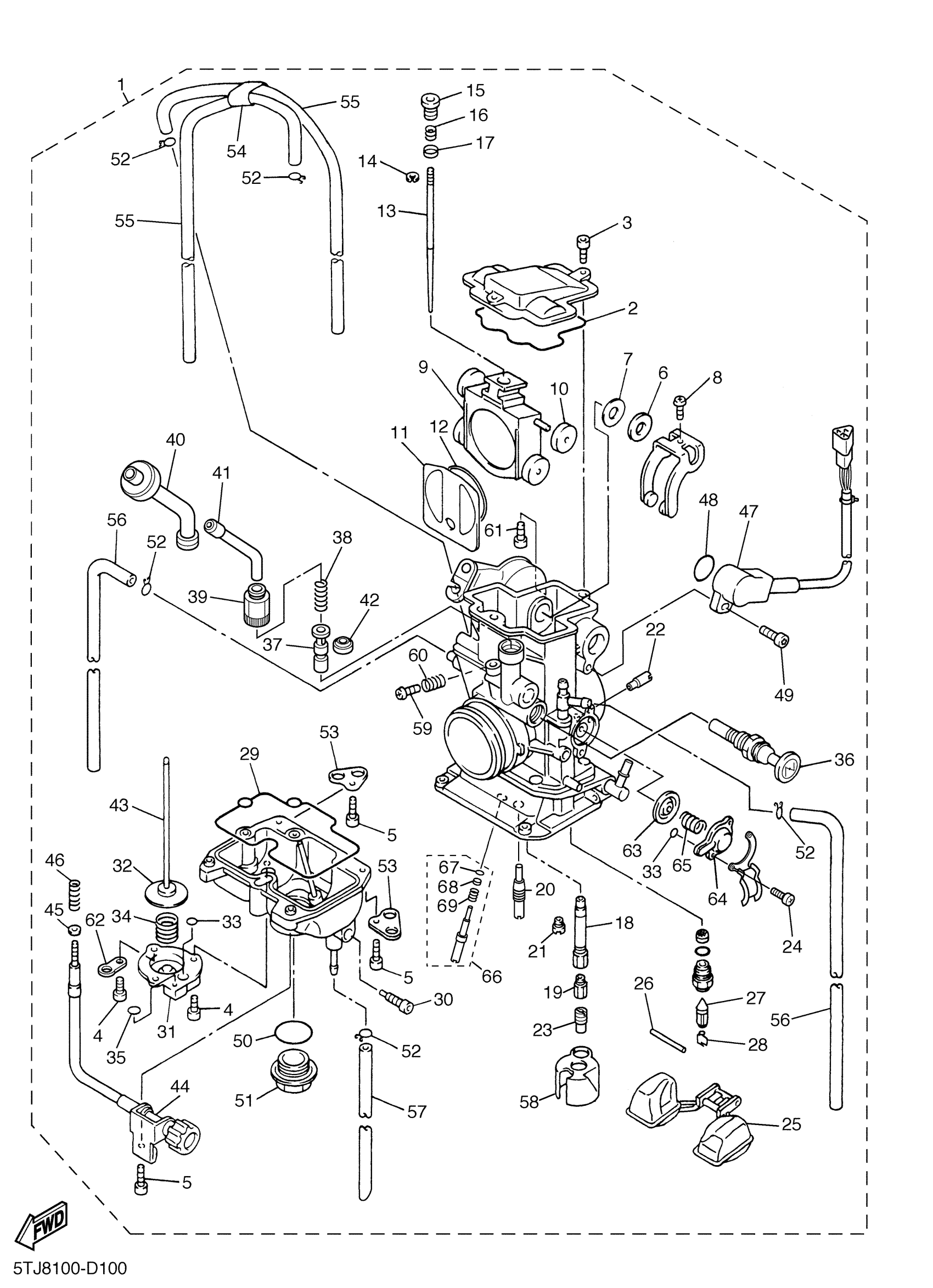

Yamaha WR450FT (WR450F) 5TJ8 2005 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
5TJ-14101-80-00
Unavailable
5
SCREW, PAN HEAD
98511-04012-00
Unavailable
13
NEEDLE (#DUQ-K)
5TJ-14916-91-00
Unavailable
13
NEEDLE (#DUP-K)
5TJ-14916-9P-00
Unavailable
13
NEEDLE (#DUR-K)
5TJ-14916-9R-00
Unavailable
13
NEEDLE (#DUS-K)
5TJ-14916-9S-00
Unavailable
13
NEEDLE (#DUT-K)
5TJ-14916-9T-00
Unavailable
13
. NEEDLE (#DUU-K)
5TJ-14916-9U-00
Unavailable
13
. NEEDLE (#DUV-K)
5TJ-14916-9V-00
Unavailable
13
NEEDLE
5TJ-14916-NT-00
Unavailable
14
CLIP
3TJ-14159-40-00
Unavailable
15
SCREW, ADJUST
5JG-14521-00-00
Unavailable
16
SPRING
5JG-14275-00-00
Unavailable
17
COLLAR
5JG-14264-00-00
Unavailable
18
JET, NEEDLE
5TJ-14947-00-00
Unavailable
19
JET, MAIN (#155)
4MX-14943-38-00
Unavailable
19
JET, MAIN (#160)
4MX-14943-39-00
Unavailable
19
JET, MAIN (#165)
4MX-14943-40-00
Unavailable
19
JET, MAIN (#170)
4MX-14943-41-00
Unavailable
19
JET, MAIN (#175)
4MX-14943-42-00
Unavailable
19
JET, MAIN (#158)
4MX-14943-89-00
Unavailable
19
JET, MAIN (#162)
4MX-14943-90-00
Unavailable
19
JET, MAIN (#168)
4MX-14943-91-00
Unavailable
19
JET, MAIN (#172)
4MX-14943-92-00
Unavailable
20
JET (#40)
4MX-14948-03-00
Unavailable
20
JET, PILOT (#42)
4MX-14948-04-00
Unavailable
20
JET, PILOT (#45)
4MX-14948-05-00
Unavailable
20
JET, PILOT (#48)
4MX-14948-06-00
Unavailable
20
JET, PILOT (#50)
4MX-14948-07-00
Unavailable
21
JET
3TJ-1494F-13-00
Unavailable
22
. JET, MAIN (#80)
5TA-14943-19-00
Unavailable
23
JET (#35)
4JT-1494F-01-00
Unavailable
23
JET (#40)
4JT-1494F-03-00
Unavailable
23
JET
4JT-1494F-05-00
Unavailable
23
JET (#50)
4JT-1494F-07-00
Unavailable
23
JET (#55)
4JT-1494F-09-00
Unavailable
23
JET (#60)
4JT-1494F-11-00
Unavailable
23
JET (#65)
4JT-1494F-13-00
Unavailable
24
SCREW, PAN HEAD WITH WASHER
97602-04110-00
Unavailable
25
FLOAT
4SR-14985-00-00
Unavailable
26
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
27
VALVE, NEEDLE
4MX-14392-00-00
Unavailable
28
CLIP
633-14159-00-00
Unavailable
29
GASKET, FLOAT CHAMBER
5JG-14984-00-00
Unavailable
30
PLUG, DRAIN
3TJ-14191-40-00
Unavailable
31
COVER 1
3TJ-14293-40-00
Unavailable
32
DIAPHRAGM ASSY
5JG-14940-18-00
Unavailable
33
GASKET
3TJ-14536-40-00
Unavailable
34
SPRING, DIAPHRAGM
5GS-14933-40-00
Unavailable
35
. O-RING
6H4-14561-00-00
Unavailable
36
PLUNGER, STARTER
5TA-14171-00-00
Unavailable
37
PLUNGER, STARTER
5TA-14371-00-00
Unavailable
38
SPRING, PLUNGER
5TA-14335-00-00
Unavailable
39
SCREW
5TA-14991-00-00
Unavailable
40
CAP, PLUNGER
5TA-14374-00-00
Unavailable
41
GUIDE, CABLE
5TA-14155-00-00
Unavailable
42
SEAL
5TA-14997-00-00
Unavailable
43
ROD, STARTER
5JG-14379-00-00
Unavailable
44
SCREW, THROTTLE
5JG-14922-00-00
Unavailable
45
WASHER, PLATE(3TJ)
90201-08410-00
Unavailable
46
SPRING, THROTTLE STOP
5TA-14934-00-00
Unavailable
47
THROTTLE SENSOR ASSY
5TA-85885-01-00
Unavailable
48
O-RING
33D-14562-00-00
Unavailable
49
SCREW
1DX-14216-00-00
Unavailable
50
O-RING
4MX-14561-00-00
Unavailable
51
PLUG, SCREW
4MX-14115-00-00
Unavailable
52
CLIP
3TJ-14137-40-00
Unavailable
53
PLATE
5BE-14146-00-00
Unavailable
54
HOLDER
5TA-14261-00-00
Unavailable
55
PIPE
5TA-14196-00-00
Unavailable
56
PIPE
5TA-14197-00-00
Unavailable
57
HOSE
5TJ-14987-00-00
Unavailable
58
PLATE
5JG-14346-00-00
Unavailable
59
SCREW
5JG-14565-00-00
Unavailable
60
SPRING, ADJUST SCREW
5JG-14531-00-00
Unavailable
61
SCREW
5TJ-14591-19-00
Unavailable
62
. PLATE
5PA-14146-00-00
Unavailable
63
DIAPHRAGM ASSY
5GS-14940-00-00
Unavailable
64
COVER, DIAPHRAGM
5GS-14958-00-00
Unavailable
65
SPRING, DIAPHRAGM
5GS-14933-00-00
Unavailable
66
PILOT SCREW SET
5NL-14105-00-00
Unavailable
67
O-RING
8ES-14147-00-00
Unavailable
68
WASHER
3TJ-14952-40-00
Unavailable
69
COIL, SPRING
3TJ-14160-40-00
Unavailable
