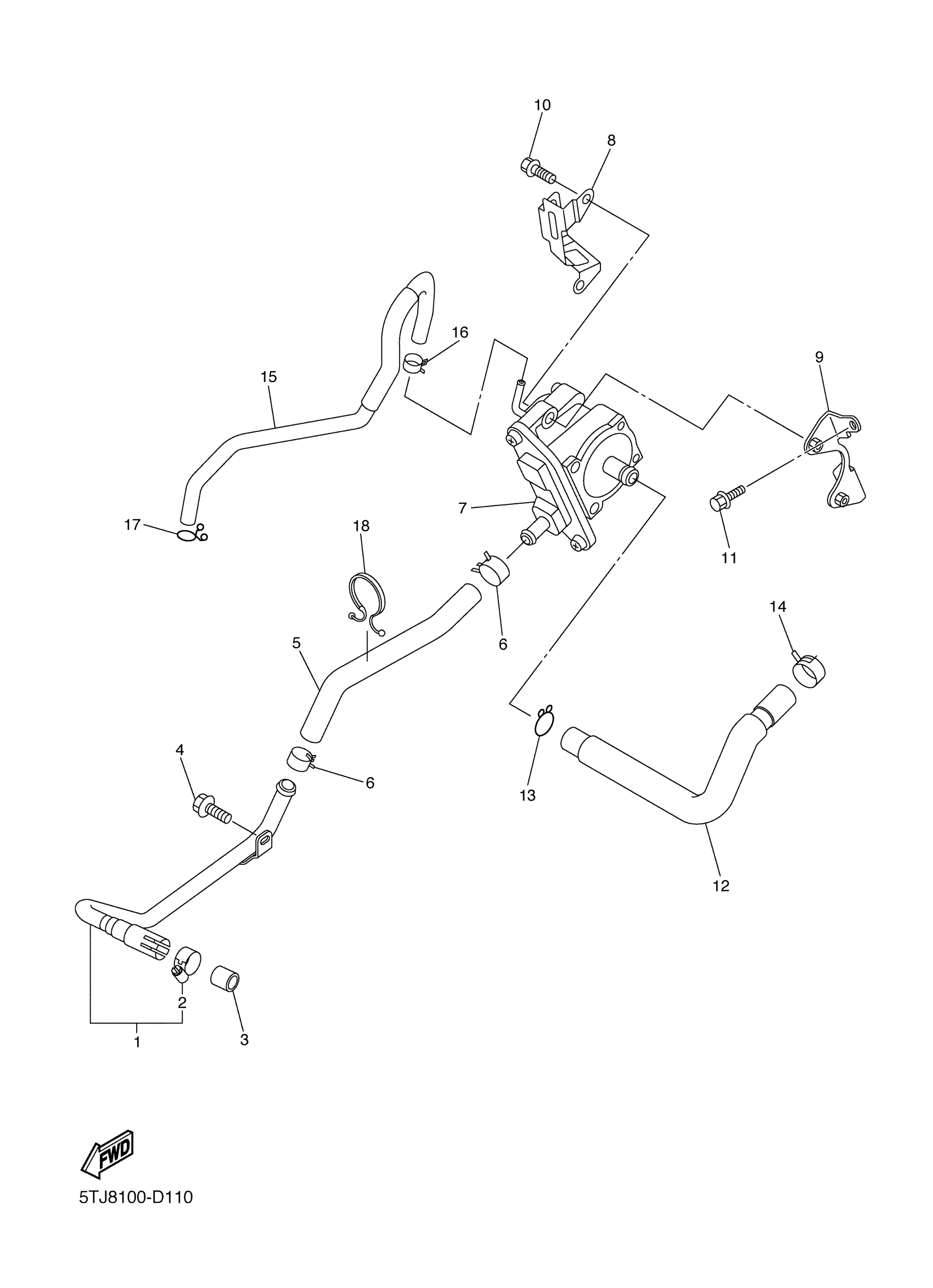

Yamaha WR450FT (WR450F) 5TJ8 2005 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

PIPE 1

5TJ-14871-00-00

Unavailable

2

CLAMP, HOSE

90450-20078-00

Unavailable

3

GASKET, MUFFLER

4KM-14714-01-00

$25.99

4

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

5

HOSE, BEND 1

5TJ-14881-00-00

Unavailable

6

CLIP (4X7)

90467-15054-00

$8.49

7

AIR INDUCTION SYSTEM ASSY

5TJ-14803-00-00

Unavailable

8

PLATE

5TJ-1482K-00-00

Unavailable

9

STAY

5TJ-14834-00-00

Unavailable

10

. BOLT, FLANGE

95027-06020-00

Unavailable

11

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

12

HOSE, BEND 2

5TJ-14882-00-00

Unavailable

13

CLIP (806-24358-00)

90467-15012-00

$8.49

14

CLIP

90468-08104-00

$3.93

15

HOSE, VACUUM SENSING 1

5TJ-13542-00-00

Unavailable

16

CLIP

90467-07138-00

Unavailable

17

CLIP

90467-090A2-00

Unavailable

18

CLAMP

90464-25267-00

Unavailable
