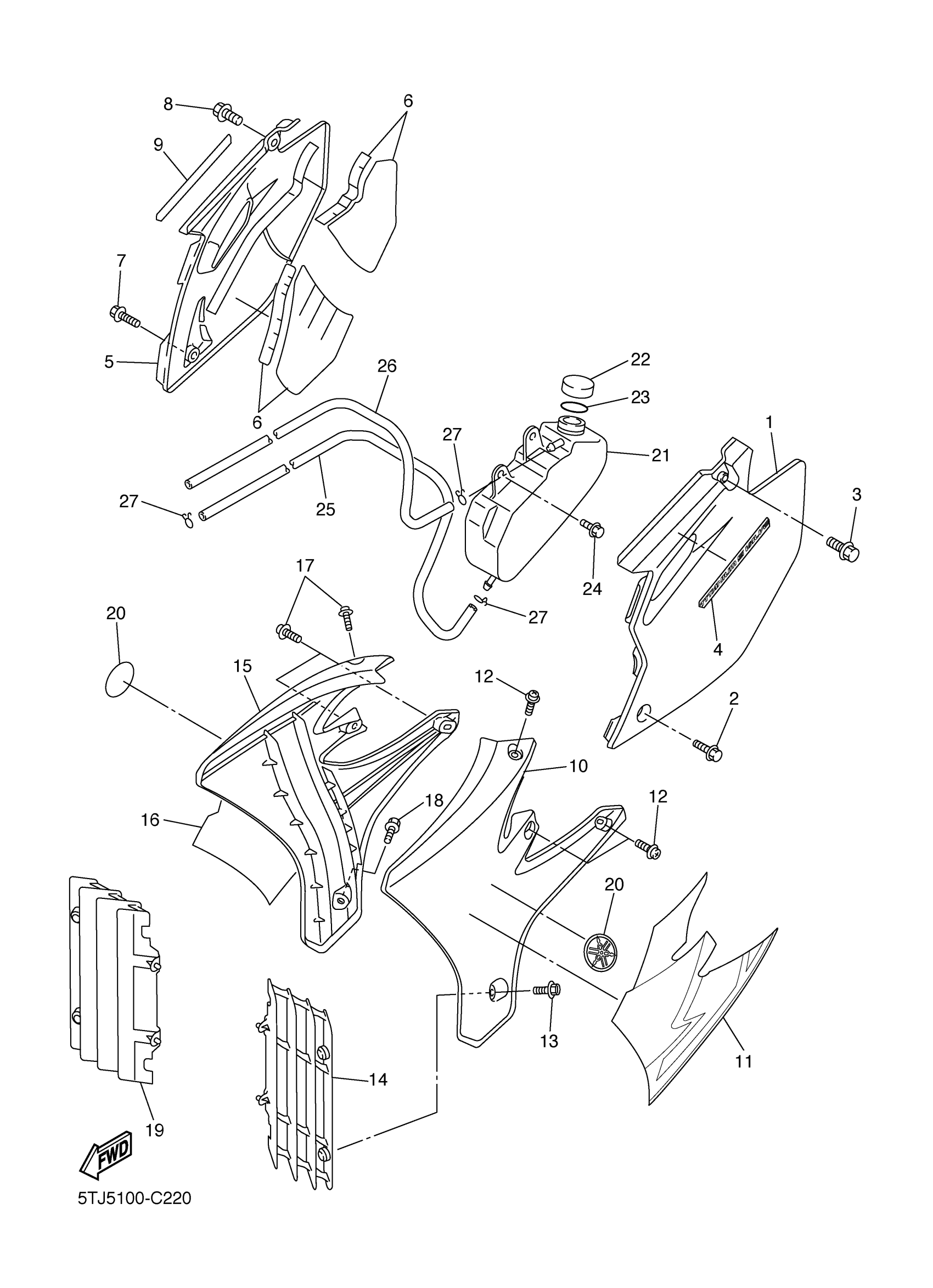

Yamaha WR450FS (WR450F) 5TJ5 2004 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5TJ-21711-00-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

BOLT, WITH WASHER

90119-08238-00

$4.29

4

EMBLEM 1

5XD-21781-00-00

Unavailable

5

COVER, SIDE 2

5TJ-21721-00-00

$27.99

6

INSULATOR, SIDE COVER

5TJ-2174A-00-00

Unavailable

7

BOLT, FLANGE

95817-06016-00

$2.75

8

BOLT, WITH WASHER

90119-08238-00

$4.29

9

EMBLEM 1

5XD-21781-00-00

Unavailable

10

SIDE COVER ASSY 3

5TJ-21730-00-00

Unavailable

11

GRAPHIC 1

5TJ-2173E-10-00

Unavailable

12

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

13

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

14

PANEL 1

5TJ-2172A-00-00

$41.99

15

SIDE COVER ASSY 4

5TJ-21740-00-00

Unavailable

16

GRAPHIC 2

5TJ-2173F-10-00

Unavailable

17

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

18

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

19

PANEL 1

5TJ-2172A-00-00

$41.99

20

TUNING FORK MARK

5MV-2175C-00-00

Unavailable

21

TANK, RECOVERY

5GS-21871-00-00

Unavailable

22

CAP

26H-21875-00-00

Unavailable

23

GASKET

26H-21874-00-00

Unavailable

24

BOLT, WITH WASHER

90119-06051-00

Unavailable

25

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

26

TUBE, FLEXIBLE

91A11-05125-00

Unavailable

27

CLIP

90467-090A2-00

Unavailable
