Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

REAR FENDER COMP.

5TJ-21610-50-00

$102.99

6

NUT, REAR FENDER

5XD-21635-00-00

$27.99

7

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

8

COLLAR

90387-06009-00

$10.49

9

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

10

GUARD, FLAP

5TA-21642-00-00

$39.99

11

GROMMET(3LN)

90480-01512-00

$3.18

12

GROMMET(3SX)

90480-14532-00

$4.67

13

INSULATOR, SIDE COVER 2

5TJ-2174T-00-00

Unavailable

14

SCREW, TRUSS TAP.

97707-60016-00

$1.70

15

WASHER, PLATE

90201-06557-00

$3.30

16

EMBLEM 1

5TJ-2163G-10-00

Unavailable

17

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

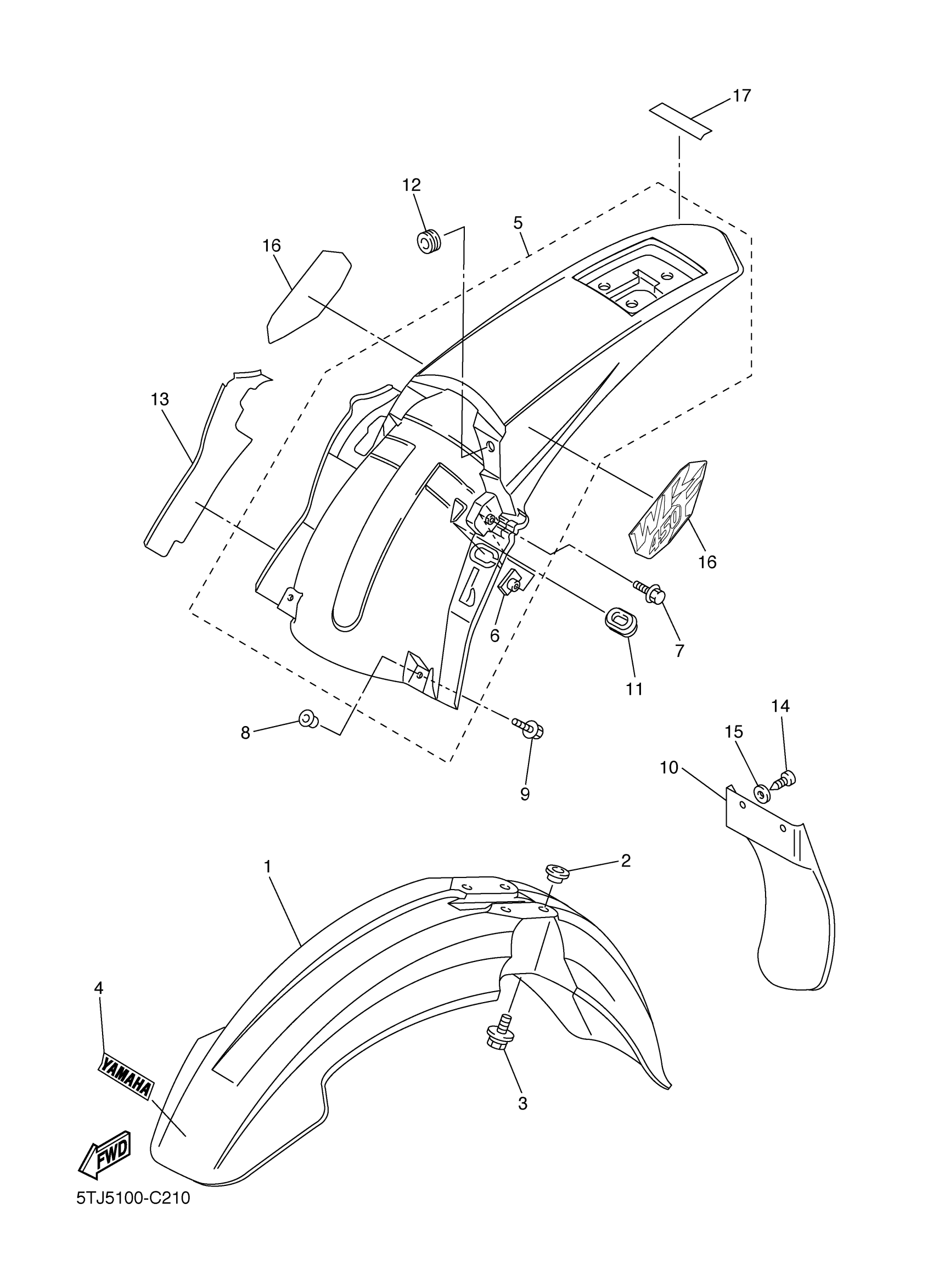

Yamaha WR450FS (WR450F) 5TJ5 2004 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM YAMAHA

REAR FENDER COMP.

NUT, REAR FENDER

BOLT, WITH WASHER(3RB)

COLLAR

BOLT, WITH WASHER(4JX)

GUARD, FLAP

GROMMET(3LN)

GROMMET(3SX)

INSULATOR, SIDE COVER 2

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM 1

EMBLEM YAMAHA
