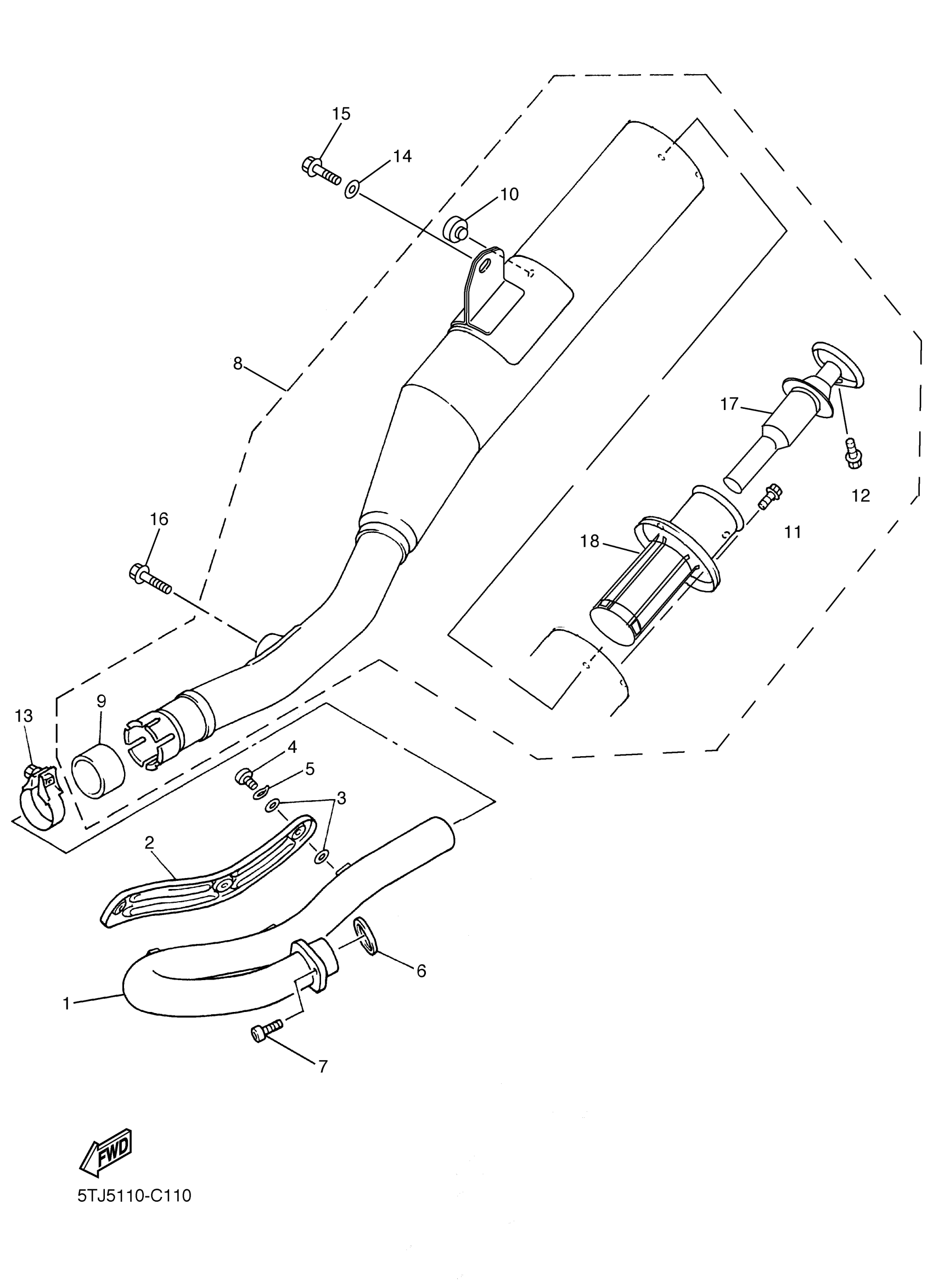

Yamaha WR450FS (WR450F) 5TJ5 2004 EXHAUST Diagram

PIPE, EXHAUST 1

5TA-14611-00-00

Unavailable

PROTECTOR, EXHAUST PIPE

5TA-14628-00-00

Unavailable

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

SCREW, BIND(2TV)

98980-06008-00

$3.19

WASHER, WAVE(3RW)

90206-06090-00

$8.49

GASKET, EXHAUST PIPE

3VD-14613-01-00

$11.99

BOLT, SOCKET

91317-08020-00

$8.49

MUFFLER ASSY 1

5TJ-14710-50-00

Unavailable

GASKET, MUFFLER

5XD-14714-00-00

$30.99

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

BOLT, FLANGE(7HT)

95880-06010-00

$2.75

BOLT, FLANGE

95814-06016-00

Unavailable

BAND, SILENCER

5BE-14788-00-00

$35.99

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

BOLT, FLANGE

90105-08057-00

Unavailable

. PIPE

5BF-14752-00-00

Unavailable

. ARRESTOR, SPARK

5BF-14786-00-00

Unavailable
