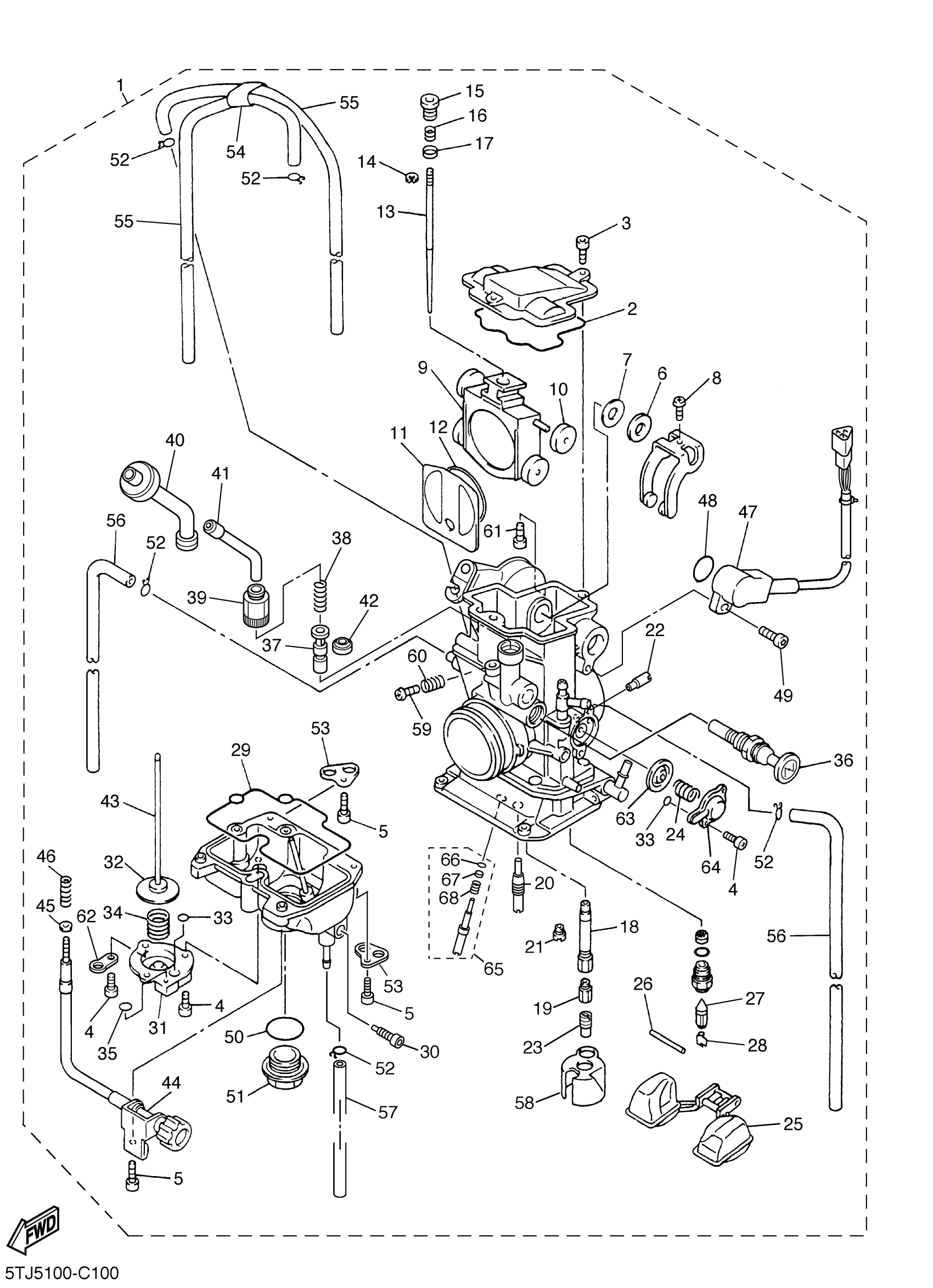

Yamaha WR450FS (WR450F) 5TJ5 2004 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5TJ-14101-50-00

Unavailable

2

GASKET

5JG-14959-00-00

$27.99

3

BOLT, SOCKET

91317-04012-00

$8.49

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

SCREW, PAN HEAD

98511-04012-00

Unavailable

6

WASHER, PLATE

90202-08045-00

$7.49

7

WASHER

5JG-14951-00-00

$4.84

8

SCREW, ADJUST

5JG-14522-09-00

$5.49

9

VALVE, VACUUM CONTROL

5JG-14388-00-00

$565.99

10

ROLLER

3TJ-14267-40-00

$17.49

11

VALVE, NEEDLE

5JG-14546-01-00

$276.99

12

SEAL

4FN-14997-00-00

$25.99

13

. NEEDLE (#DWQ)

5TJ-14916-W1-00

Unavailable

13

. NEEDLE (#DWN)

5TJ-14916-WN-00

Unavailable

13

. NEEDLE (#DWP)

5TJ-14916-WP-00

Unavailable

13

. NEEDLE (#DWR)

5TJ-14916-WR-00

Unavailable

13

. NEEDLE (#DWS)

5TJ-14916-WS-00

Unavailable

13

. NEEDLE (#DWT)

5TJ-14916-WT-00

Unavailable

13

. NEEDLE (#DWU)

5TJ-14916-WU-00

Unavailable

14

CLIP

3TJ-14159-40-00

Unavailable

15

SCREW, ADJUST

5JG-14521-00-00

Unavailable

16

SPRING

5JG-14275-00-00

Unavailable

17

COLLAR

5JG-14264-00-00

Unavailable

18

JET, NEEDLE

5JG-14947-01-00

Unavailable

19

JET, MAIN (#155)

4MX-14943-38-00

Unavailable

19

JET, MAIN (#160)

4MX-14943-39-00

Unavailable

19

JET, MAIN (#165)

4MX-14943-40-00

Unavailable

19

JET, MAIN (#170)

4MX-14943-41-00

Unavailable

19

JET, MAIN (#175)

4MX-14943-42-00

Unavailable

19

JET, MAIN (#158)

4MX-14943-89-00

Unavailable

19

JET, MAIN (#162)

4MX-14943-90-00

Unavailable

19

JET, MAIN (#168)

4MX-14943-91-00

Unavailable

19

JET, MAIN (#172)

4MX-14943-92-00

Unavailable

20

JET (#40)

4MX-14948-03-00

Unavailable

20

JET, PILOT (#42)

4MX-14948-04-00

Unavailable

20

JET, PILOT (#45)

4MX-14948-05-00

Unavailable

20

JET, PILOT (#48)

4MX-14948-06-00

Unavailable

20

JET, PILOT (#50)

4MX-14948-07-00

Unavailable

21

. JET (#58)

3TJ-1494F-10-00

Unavailable

21

JET 1 (#60)

3TJ-1494F-11-00

Unavailable

21

JET

3TJ-1494F-12-00

Unavailable

21

JET

3TJ-1494F-13-00

Unavailable

21

JET

3TJ-1494F-14-00

Unavailable

21

JET

3TJ-1494F-15-00

Unavailable

22

JET, MAIN (#70)

5TA-14943-15-00

Unavailable

23

JET (#60)

4JT-1494F-11-00

Unavailable

24

SPRING, DIAPHRAGM

5GS-14933-00-00

Unavailable

25

FLOAT

4SR-14985-00-00

Unavailable

26

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

27

VALVE, NEEDLE

4MX-14392-00-00

Unavailable

28

CLIP

633-14159-00-00

Unavailable

29

GASKET, FLOAT CHAMBER

5JG-14984-00-00

Unavailable

30

PLUG, DRAIN

3TJ-14191-40-00

Unavailable

31

COVER 1

3TJ-14293-40-00

Unavailable

32

DIAPHRAGM ASSY

5JG-14940-17-00

Unavailable

32

DIAPHRAGM ASSY

5JG-14940-18-00

Unavailable

32

DIAPHRAGM ASSY

5JG-14940-19-00

Unavailable

33

GASKET

3TJ-14536-40-00

Unavailable

34

SPRING, DIAPHRAGM

5GS-14933-40-00

Unavailable

35

. O-RING

6H4-14561-00-00

Unavailable

36

PLUNGER, STARTER

5TA-14171-00-00

Unavailable

37

PLUNGER, STARTER

5TA-14371-00-00

Unavailable

38

SPRING, PLUNGER

5TA-14335-00-00

Unavailable

39

SCREW

5TA-14991-00-00

Unavailable

40

CAP, PLUNGER

5TA-14374-00-00

Unavailable

41

GUIDE, CABLE

5TA-14155-00-00

Unavailable

42

SEAL

5TA-14997-00-00

Unavailable

43

ROD, STARTER

5JG-14379-00-00

Unavailable

44

SCREW, THROTTLE

5JG-14922-00-00

Unavailable

45

WASHER, PLATE(3TJ)

90201-08410-00

Unavailable

46

SPRING, THROTTLE STOP

5TA-14934-00-00

Unavailable

47

THROTTLE SENSOR ASSY

5TA-85885-01-00

Unavailable

48

O-RING

33D-14562-00-00

Unavailable

49

SCREW

1DX-14216-00-00

Unavailable

50

O-RING

4MX-14561-00-00

Unavailable

51

PLUG, SCREW

4MX-14115-00-00

Unavailable

52

CLIP

3TJ-14137-40-00

Unavailable

53

PLATE

5BE-14146-00-00

Unavailable

54

HOLDER

5TA-14261-00-00

Unavailable

55

PIPE

5TA-14196-00-00

Unavailable

56

PIPE

5TA-14197-00-00

Unavailable

57

HOSE

5TJ-14987-00-00

Unavailable

58

PLATE

5JG-14346-00-00

Unavailable

59

SCREW

5JG-14565-00-00

Unavailable

60

SPRING, ADJUST SCREW

5JG-14531-00-00

Unavailable

61

. SCREW

5TJ-14591-00-00

Unavailable

62

. PLATE

5PA-14146-00-00

Unavailable

63

DIAPHRAGM ASSY

5GS-14940-00-00

Unavailable

64

COVER, DIAPHRAGM

5GS-14958-00-00

Unavailable

65

PILOT SCREW SET

5NL-14105-00-00

Unavailable

66

O-RING

8ES-14147-00-00

Unavailable

67

WASHER

3TJ-14952-40-00

Unavailable

68

COIL, SPRING

3TJ-14160-40-00

Unavailable
