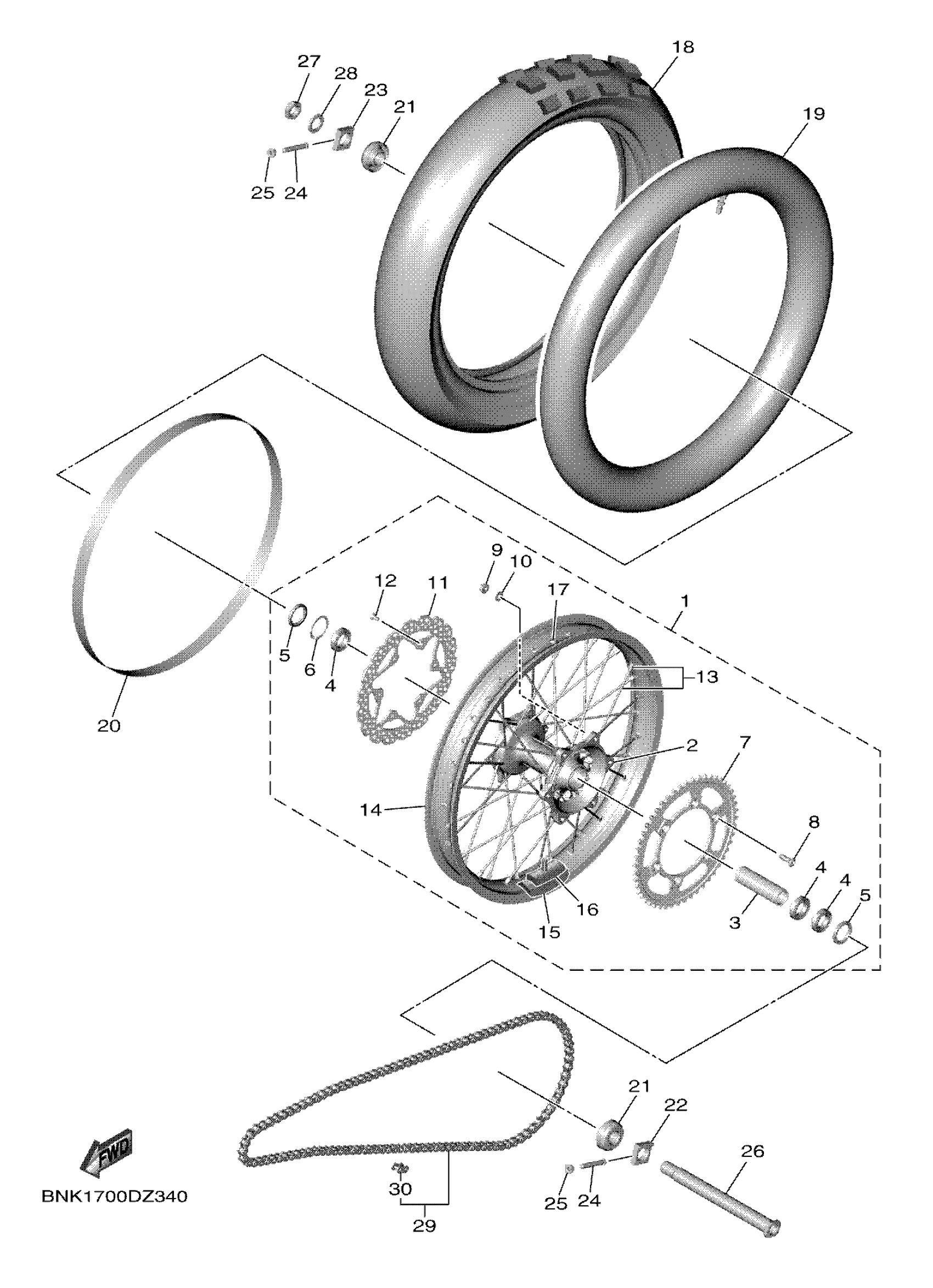

Yamaha WR450FR1 (WR450F) BNK2 2024 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL SUB-ASSY

BNK-25302-00-00

$470.99

2

HUB, REAR

B2W-25311-00-00

$238.99

3

SPACER, BEARING

17D-25317-00-00

$44.99

4

BEARING

93306-90511-00

$24.99

5

OIL SEAL (697)

93102-32M07-00

$18.99

6

CIRCLIP

99009-42700-00

$7.49

7

SPROCKET, DRIVEN (48T)

5GS-25448-50-00

$47.99

7

SPROCKET, DRIVEN (50T)

5TJ-25450-80-00

$64.99

7

SPROCKET, DRIVEN (52T)

5TJ-25452-80-00

$45.99

7

SPROCKET, DRIVEN (51T)

BAK-25451-00-00

Unavailable

8

BOLT(3RB)

90109-081G1-00

Unavailable

9

NUT, SELF-LOCKING

90185-08008-00

$7.49

10

WASHER, PLATE

90201-08043-00

$7.49

11

DISK, REAR BRAKE 2

B2W-2582W-00-00

$135.99

12

SCREW, COUNTERSUNK

90151-06079-00

$3.23

13

SPOKE SET, REAR

BNK-25304-00-00

Unavailable

14

RIM (2.15-18)

94421-18048-00

Unavailable

15

SPACER, BEAD

3JE-25394-00-00

Unavailable

16

DAMPER

4XM-25364-00-00

Unavailable

17

GROMMET (397)

90480-10068-00

Unavailable

18

TIRE (120/90-18 65M MX33)

94112-18054-00

Unavailable

19

TUBE (5A8)

94212-18188-00

Unavailable

20

BAND, RIM (2J4)

94340-18086-00

Unavailable

21

COLLAR ASSY

BR9-2530S-01-00

Unavailable

22

PULLER, CHAIN 1

1SL-25388-00-00

Unavailable

23

PULLER, CHAIN 2

1SL-25389-00-00

Unavailable

24

BOLT

90101-08006-00

Unavailable

25

NUT

90179-08019-00

Unavailable

26

AXLE, WHEEL

17D-25381-00-00

Unavailable

27

NUT, SELF-LOCKING

90185-22011-00

Unavailable

28

WASHER, PLATE

90201-22023-00

Unavailable

29

CHAIN

9Y582-50113-00

Unavailable

30

JOINT, CHAIN

94682-50021-00

Unavailable
