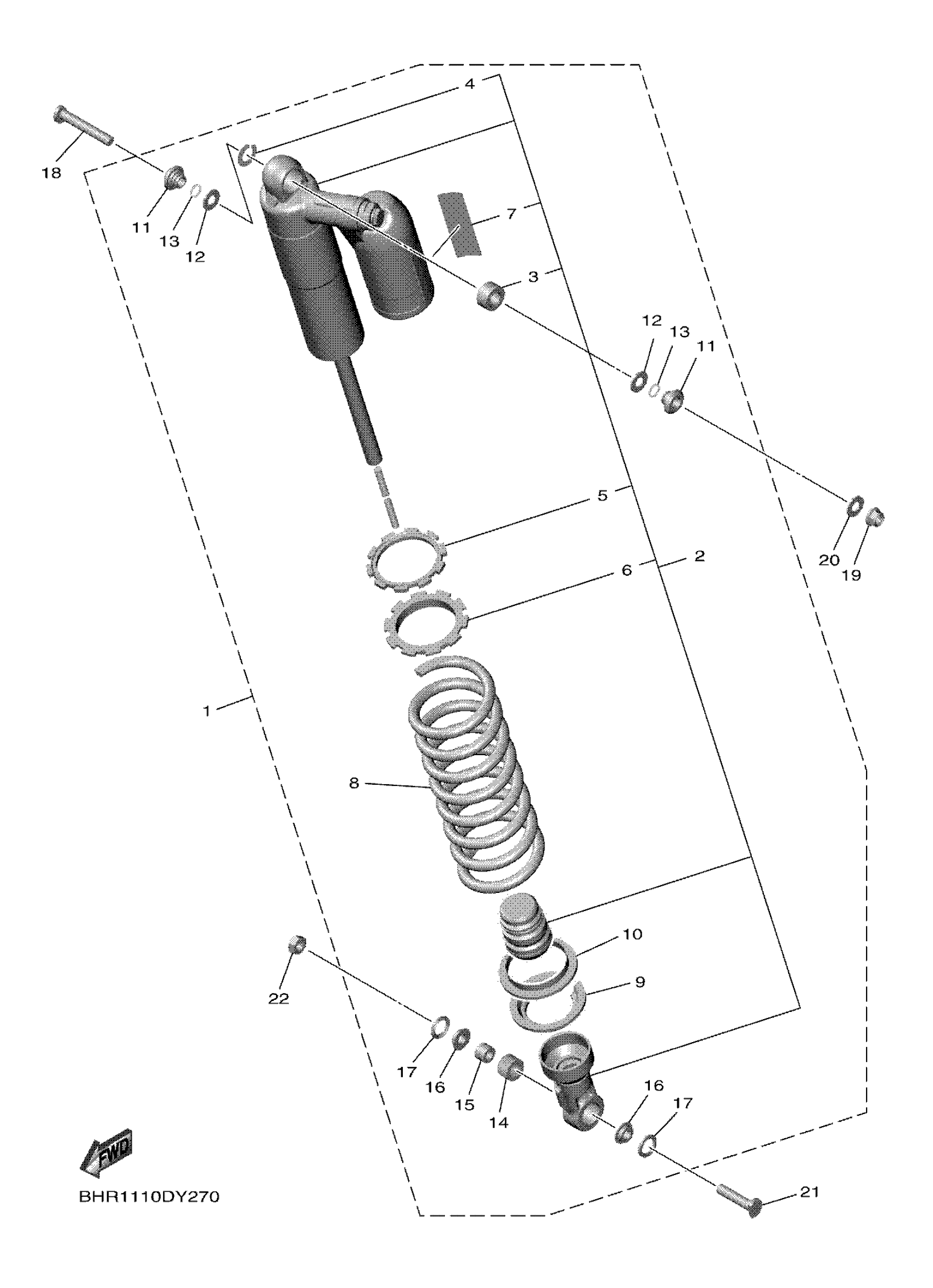

Yamaha WR450FR1 (WR450F) BNK2 2024 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

BNK-22200-10-00

$800.99

2

DAMPER SUB ASSY

BNK-22201-10-00

$884.99

3

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

4

CIRCLIP

5DH-23183-00-00

$5.49

5

GUIDE, SPRING 3

33D-22234-00-00

$40.99

6

SEAT, SPRING UPPER

1SL-22213-00-00

$17.49

7

LABEL, WARNING

4AA-22259-80-00

$13.49

8

SPRING

BR9-22212-A0-00

$299.99

9

GUIDE, SPRING 1

33D-22214-00-00

$57.99

10

GUIDE, SPRING 2

33D-22224-00-00

$23.99

11

COLLAR, DISTANCE

1C3-22253-50-00

$45.99

12

SEAL, DUST

3JE-22475-00-00

$13.49

13

SEAL, RING

4EW-22474-00-00

$6.99

14

BEARING

5UN-22176-00-00

$32.99

15

BUSH

5MV-22184-00-00

$25.99

16

COLLAR, DISTANCE

1C3-22253-L1-00

Unavailable

17

SEAL, DUST

5NY-22475-00-00

Unavailable

18

BOLT 2

5XE-22242-01-00

Unavailable

19

NUT, S/L FLANGE

95602-10200-00

Unavailable

20

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

21

BOLT 1

5NY-22241-00-00

Unavailable

22

NUT, SELF-LOCKING

90185-10012-00

Unavailable
