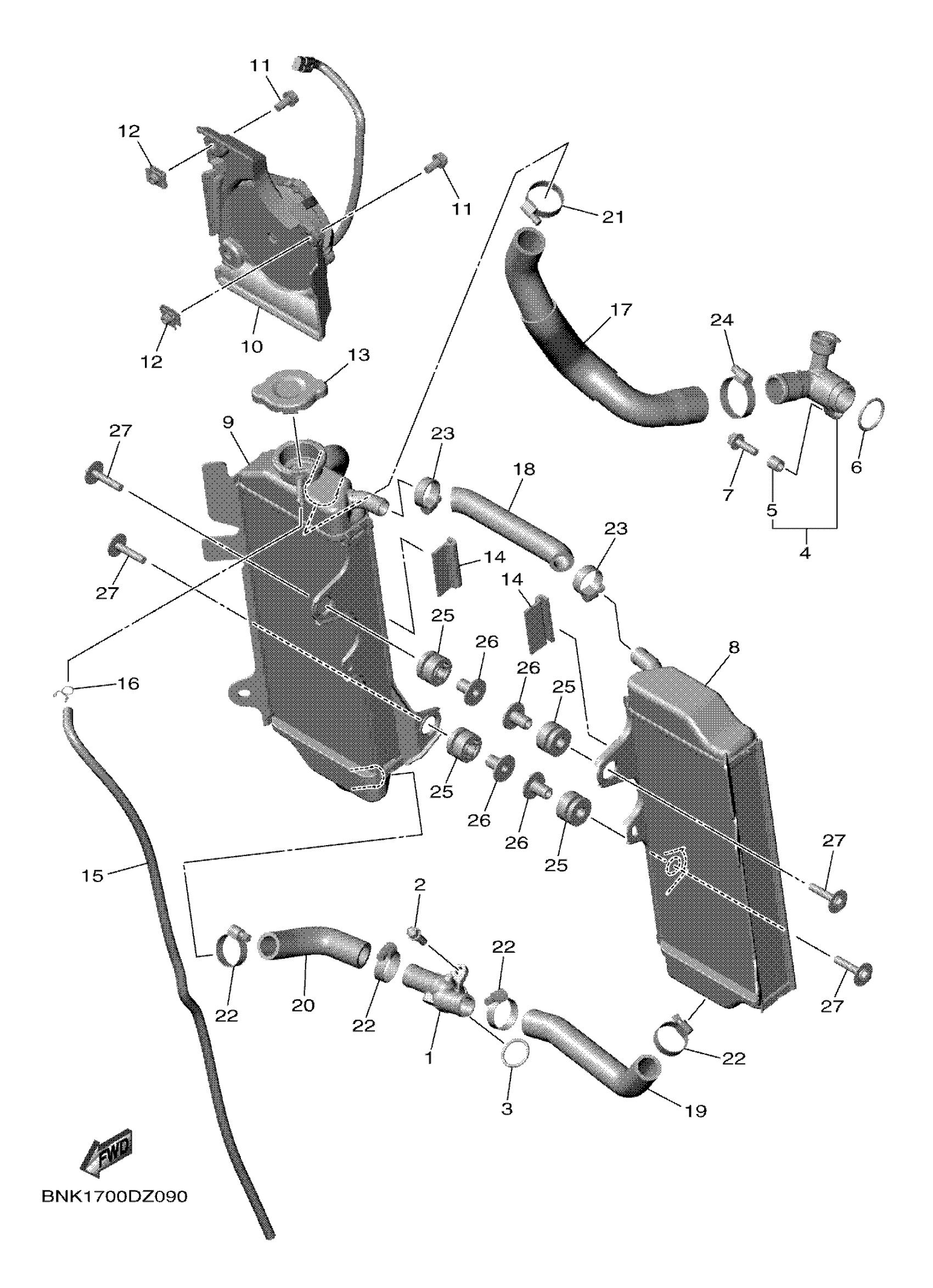

Yamaha WR450FR1 (WR450F) BNK2 2024 RADIATOR & HOSE Diagram

#

Description
Price

1

PIPE 2

BHR-12482-00-00

$64.79

2

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.56

3

O-RING

93210-20003-00

$5.86

4

JOINT

BHR-12446-00-00

$32.59

5

COLLAR

90387-06340-00

$3.44

6

O-RING(59V)

93210-24253-00

$4.65

7

BOLT, FLANGE DEEP RECESS

95D32-06020-00

$0.71

8

RADIATOR ASSY

BHR-1240A-00-00

Unavailable

9

RADIATOR COMP

BNK-12461-00-00

$231.42

10

BLOWER ASSY

BNK-12405-00-00

Unavailable

11

BOLT

2GB-12615-00-00

$3.11

12

NUT 1

5SL-12671-00-00

$4.85

13

CAP, RADIATOR

5SL-12462-01-00

Unavailable

14

DAMPER, RADIATOR

33D-12465-00-00

$10.30

15

PIPE, BREATHER

BHR-12463-00-00

$4.94

16

CLIP 101235600

90467-08003-00

Unavailable

17

HOSE 1

BNK-12576-00-00

Unavailable

18

HOSE 2

BR9-12577-00-00

Unavailable

19

HOSE 3

BHR-12578-00-00

Unavailable

20

HOSE 4

BHR-12579-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-28001-00

Unavailable

22

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

23

HOSE CLAMP ASSY

90450-18M09-00

$9.82

24

HOSE CLAMP ASSY

90450-32003-00

Unavailable

25

GROMMET

90480-15012-00

Unavailable

26

COLLAR

90387-06065-00

Unavailable

27

BOLT, WITH WASHER

90119-06262-00

Unavailable
