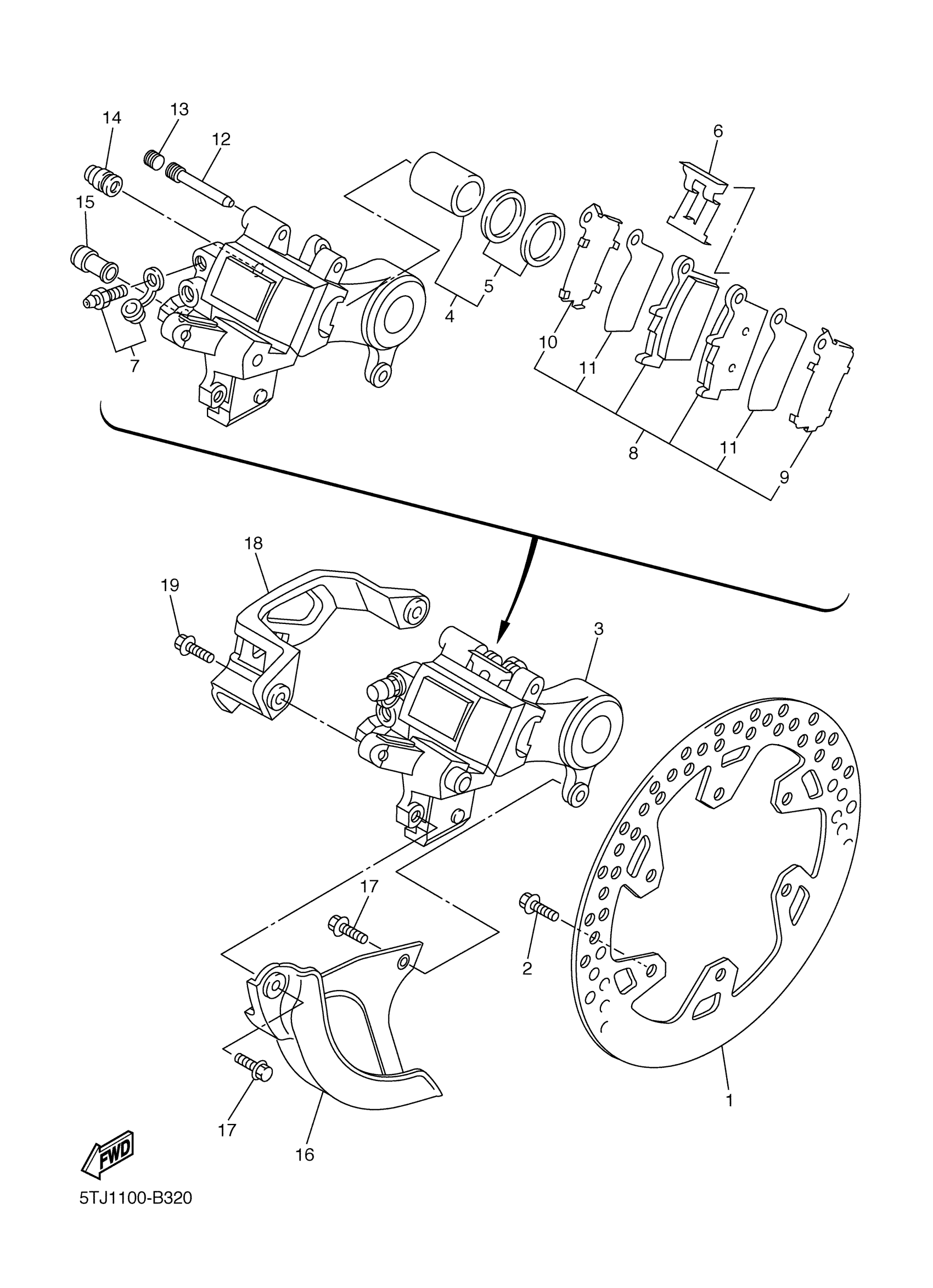

Yamaha WR450FR (WR450F) 5TJ1 2003 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

5NY-2582W-00-00

Unavailable

2

BOLT, FLANGE

90105-06109-00

$5.87

3

CALIPER ASSY, REAR 2

5UN-2580W-20-00

Unavailable

4

PISTON ASSY, CALIPER

5UN-W0057-50-00

$51.26

5

CALIPER SEAL KIT

5UN-W0047-50-00

$13.33

6

SUPPORT, PAD

5DH-25919-50-00

$16.55

7

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

8

BRAKE PAD KIT 2

5UN-W0046-60-00

$41.33

9

.. SHIM, CALIPER

5UN-25828-60-00

$9.79

10

SHIM, CALIPER

5UN-25827-60-00

$12.27

11

INSULATOR, HEAT

5UN-22898-60-00

$15.86

12

PIN, PAD

8CR-25924-00-00

$10.52

13

PLUG

5DH-25916-00-00

$6.94

14

BOOT, CALIPER

3JD-25917-00-00

$7.03

15

BOOT 2

1UY-25937-51-00

$11.48

16

PROTECTOR, DISK BRAKE

5DH-25718-01-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

18

PROTECTOR

5TA-27491-09-00

Unavailable

19

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable
