2003 Yamaha WR450F (WR450FR) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2003 Yamaha WR450F (WR450FR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

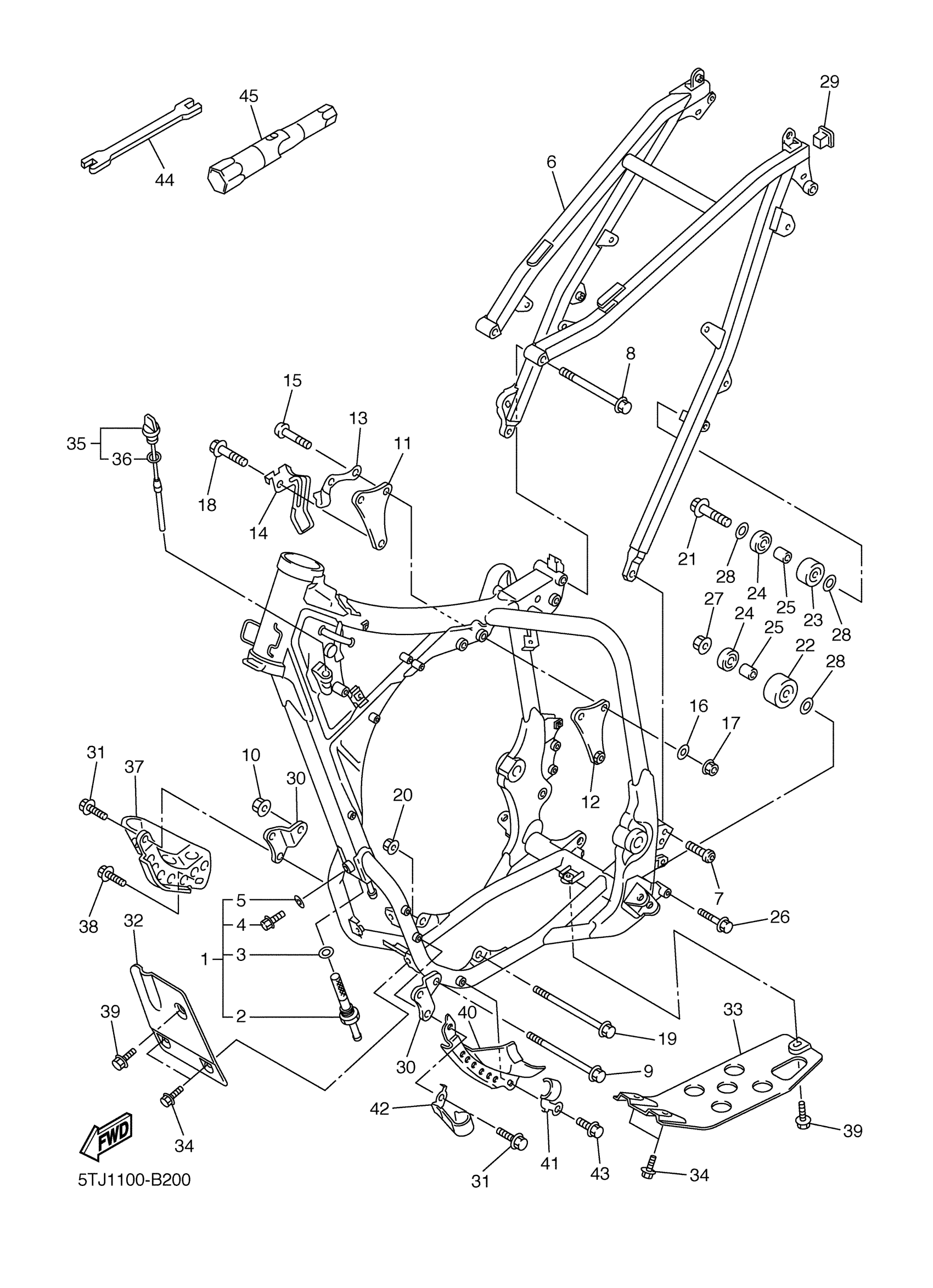

2003 Yamaha WR450F (WR450FR) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

5TJ-21101-00-00

1
Out of stock

2

NET, FILTER

5TA-21756-00-00

—
Out of stock

3

WASHER, PLATE(3GB)

90201-145M4-00

1
Out of stock

4

BOLT, FLANGE

95817-08012-00

1
Out of stock

5

GASKET

90430-08119-00

1
Out of stock

6

REAR FRAME COMP.

5TJ-21190-80-00

—
Out of stock

7

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

1
Out of stock

8

BOLT, FLANGE(4BD)

95817-08105-00

—
Out of stock

9

BOLT, FLANGE

95817-10160-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-10002-00

1
Out of stock

11

BRACKET, REAR UPPER 1

5TA-21425-00-00

—
Out of stock

12

BRACKET, REAR UPPER 1

5TA-21425-10-00

1
Out of stock

13

HOLDER, CABLE

5TA-21161-00-00

—
Out of stock

14

CLAMP, WIRE HARNESS 1

5TJ-21335-00-00

1
Out of stock

15

BOLT,BUTTON

92017-10060-00

1
Out of stock

16

WASHER PLATE (3L6)

90201-08759-00

—
Out of stock

17

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

18

BOLT, FLANGE(87Y)

95817-10055-00

—
Out of stock

19

BOLT, WASHER BASED(3RB)

90105-10733-00

—
Out of stock

20

NUT, SELF-LOCKING

90185-10002-00

1
Out of stock

21

BOLT, FLANGE(4MY)

95027-08040-00

—
Out of stock

22

TENSIONER

3JD-22178-20-00

—
Out of stock

23

TENSIONER

4EW-22178-01-00

—
Out of stock

24

BEARING (3X3)

93300-60804-00

—
Out of stock

25

COLLAR(1NL)

90387-086N4-00

—
Out of stock

26

BOLT, FLANGE

95027-08065-00

—
Out of stock

27

NUT, FLANGE(JN5)

95707-08500-00

—
Out of stock

28

WASHER, PLATE(3XP)

90201-086P8-00

—
Out of stock

29

PLUG(8Y1)

90338-18176-00

—
Out of stock

30

BRACKET, FRONT LOWER 1

5XD-21417-50-00

—
Out of stock

31

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

32

PROTECTOR, ENGINE

5TA-21471-00-00

1
Out of stock

33

GUARD, ENGINE 2

5TA-2147E-00-00

1
Out of stock

34

BOLT, FLANGE(4MY)

95027-06012-00

—
Out of stock

35

PLUG, OIL LEVEL

5TA-15362-01-00

—
Out of stock

36

. O-RING

93210-08001-00

1
Out of stock

37

GUARD, ENGINE 1

5TA-2147A-00-00

1
Out of stock

38

BOLT, SMALL FLANGE

95027-08012-00

—
Out of stock

39

BOLT, WITH WASHER

90119-06001-00

—
Out of stock

40

GUARD, ENGINE 3

5TJ-2147F-00-00

—
Out of stock

41

CLAMP

5NG-21338-01-00

1
Out of stock

42

CLAMP

5TJ-21338-00-00

1
Out of stock

43

BOLT, SMALL FLANGE

95027-08012-00

—
Out of stock

44

WRENCH, HEXAGON

5ET-28166-10-00

—
Out of stock

45

BOX, SPARK PLUG

5TA-2814F-00-00

—
Out of stock
